CONTROLLOGIX PROFIBUS COMMUNICATION
ILX56-PBM

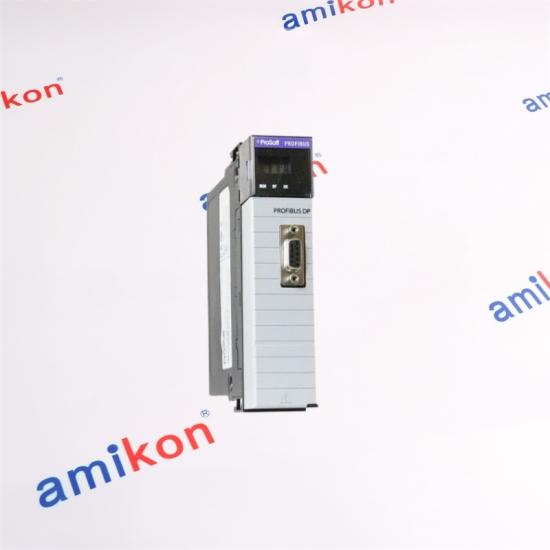

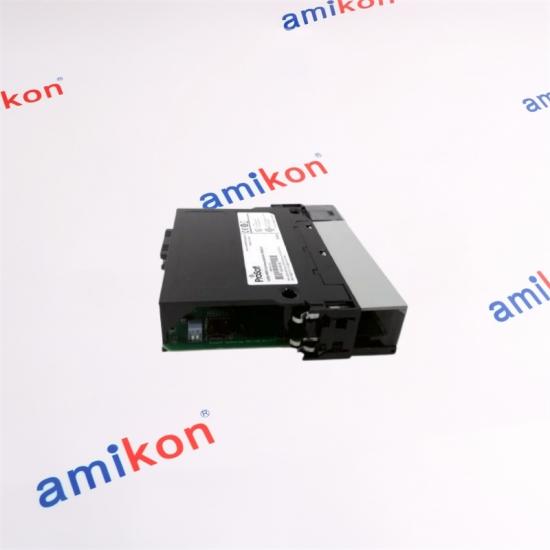

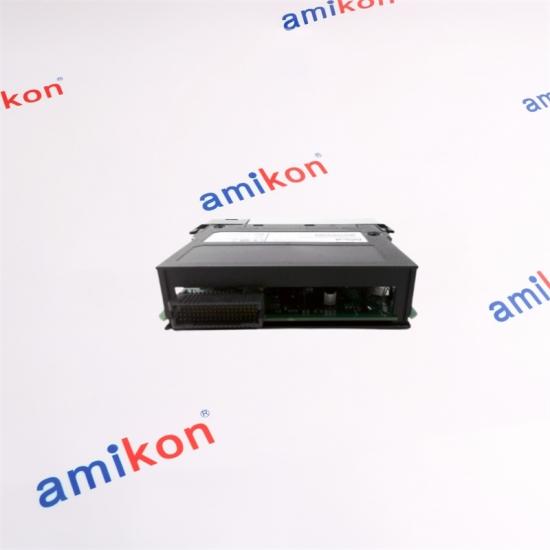

PROFIBUS DPV1 Master / Multi-Slave Module for ControlLogix
The ILX56-PBM provides a direct PROFIBUS DP communication interface for Rockwell Automation ControlLogix systems. It can operate as a PROFIBUS DP Master or as a multi-slave interface, allowing ControlLogix processors to exchange cyclic and acyclic data with PROFIBUS field devices.
In Master operation, the module supports DPV0 cyclic data exchange with up to 125 PROFIBUS DP slave devices and provides DPV1 Class 1 and Class 2 communication. In Slave operation, it can emulate up to 10 PROFIBUS slave nodes.
|
KEY CAPABILITIES
DATA EXCHANGE
Up to 5000 Bytes MASTER NETWORK
Up to 125 DP Slaves SLAVE EMULATION
Up to 10 Nodes PROFIBUS SPEED
Up to 12 Mbps |
|
PLATFORM
ControlLogix
|
INTERFACE
RS-485
|
PROTOCOL
PROFIBUS DPV0 / DPV1
|
MODULE FORMAT
1756 Single-Slot
|
|
01 / FEATURES
Designed for
PROFIBUS Integration |
|
| Product Type | PROFIBUS DPV1 Master / Multi-Slave module for ControlLogix |
| PROFIBUS Interface | RS-485, potential-free, maximum 12 Mbps |
| Connector | Female DB9 connector |
| Master Mode | DPV0 data exchange, DPV1 Class 1 and Class 2 messaging, DPV1 alarming |
| Master Slave Capacity | Up to 125 PROFIBUS DP slave devices |
| Cyclic Data | Up to 5000 bytes of PROFIBUS device and status data |
| Maximum Input Data | 2440 bytes |
| Maximum Output Data | 2440 bytes |
| Status Data | 88 bytes |
| Slave Mode | Emulation of up to 10 PROFIBUS slave nodes |
| Baud Rates | 9.6 kbps, 19.2 kbps, 45.45 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps; auto-detection supported |
| Backplane Current Load | 450 mA @ 5 VDC; 2 mA @ 24 VDC |
| Module Format | Standard 1756 single-slot module |
| Enclosure | IP20, NEMA/UL Open Type |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5 to 95%, non-condensing |
|
03 / SERIES POSITION
ILX56-PBx Family
|
The ILX56-PBM belongs to the ILX56-PBx ControlLogix communication family and is specifically intended for PROFIBUS DP Master / Multi-Slave operation. Its architecture is centered on PROFIBUS DP communication inside a 1756 ControlLogix chassis.
|
|
ILX56-PBM
PROFIBUS DPV1 Master / Multi-Slave. Designed when a ControlLogix processor needs to communicate with PROFIBUS DP field devices as a Master, or when ControlLogix data must be represented as multiple PROFIBUS slave nodes.
Master mode: up to 125 DP slaves · Slave mode: up to 10 emulated nodes
|
ILX56-PBS
PROFIBUS DPV1 Slave for ControlLogix. This related model is intended for applications where the ControlLogix platform needs to operate as a PROFIBUS DP slave rather than provide the Master / Multi-Slave functions of the ILX56-PBM.
Select according to the required PROFIBUS network role.
|
|
PROFIBUS-to-ControlLogix Integration
Suitable for control systems where PROFIBUS DP field devices must exchange process data with a ControlLogix processor.
|
Legacy Network Retention
Useful when an existing PROFIBUS field layer remains in service while the supervisory or control layer is based on ControlLogix.
|
Multi-Slave Architecture
Slave emulation can be used when a PROFIBUS Master needs to communicate with multiple logical ControlLogix-based nodes.
|
|
DIRECT CONTACT
Need ILX56-PBM?
Send the part number and application details. Our sales team can check availability, configuration requirements and delivery arrangements.
|
Sales Manager: Miya zheng
Delivery: 3–5 days | Warranty: 12 months | Packaging: Brand New
Delivery Way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment Term: T/T
|
| Part Number | Quantity | Destination | Required Date | Machine / System |
|
Can ILX56-PBM replace a PROFIBUS Master in an existing ControlLogix system?
ILX56-PBM is specifically designed to operate as a PROFIBUS DP Master within a ControlLogix chassis. It supports DPV0 cyclic exchange, DPV1 Class 1 and Class 2 messaging, and communication with up to 125 PROFIBUS DP slave devices. Replacement suitability still depends on the existing network topology, data mapping and application configuration.
|
When should a buyer choose ILX56-PBM instead of ILX56-PBS?
The key distinction is the required PROFIBUS role. ILX56-PBM provides Master and multi-slave functionality, while ILX56-PBS is intended as a PROFIBUS DPV1 Slave for ControlLogix. If the ControlLogix platform must control PROFIBUS DP devices as the network Master, ILX56-PBM is the relevant family member to evaluate.
|
|
Does ILX56-PBM support DPV1 communication beyond normal cyclic I/O?
Yes. ILX56-PBM supports DPV1 Class 1 and Class 2 messaging, including DPV1 read/write communication and alarming functions. This makes it relevant when a PROFIBUS installation requires more than basic DPV0 cyclic process-data exchange.
|
What should be checked before ordering an ILX56-PBM replacement?
Confirm that the target rack is a compatible ControlLogix 1756 installation, then verify the PROFIBUS Master/Slave role, node count, baud rate, cyclic data size, DPV1 requirements, Logix data mapping and existing configuration. These checks reduce the risk of receiving a physically compatible module that does not match the running application.
|
|
Can ILX56-PBM help diagnose an intermittent PROFIBUS communication problem?
The module provides diagnostic functions including network status monitoring, device statistics, DPV1 statistics, live-list functions and PROFIBUS packet capture. These functions can help determine whether a problem is associated with the fieldbus, a device, configuration or communication behavior. Physical wiring, termination and connected-device conditions should also be checked during troubleshooting.
|
|
