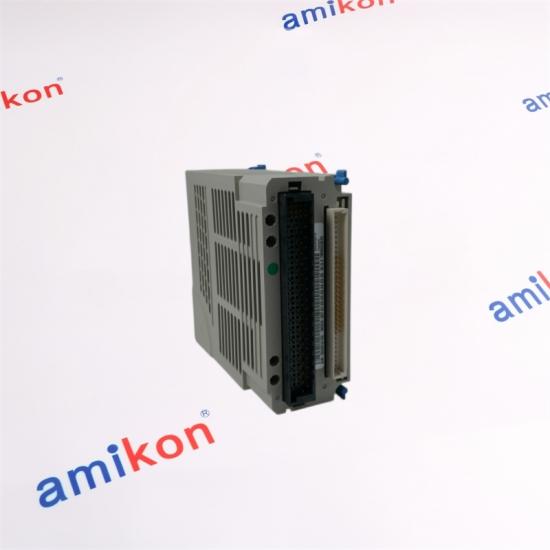

5X00270G0124VDC High-Side Digital Output Module
An Ovation HSDO module for switching 24VDC field loads through sixteen optically isolated digital output channels.
|
CONTROL NODE
HIGH-SIDE OUTPUT
Designed for Ovation control architectures where discrete 24VDC commands must be delivered reliably to field loads.
Configuration
Personality Module + Electronics Module Operating Mode
Simplex or redundant configuration |
| Need 5X00270G01 for an active Ovation system? Send the part number, quantity, destination, required date and machine/system. |
REQUEST QUOTE |
|
|
|
MODULE ARCHITECTURE
Built Around the Output TaskThe module combines its electronics assembly with a personality module inside an Ovation I/O architecture.
|
|
|
SYSTEM USE
Where the 5X00270G01 MattersWithin an Ovation control system, the 5X00270G01 is suited to discrete output duties where control logic must switch compatible 24VDC field loads. Typical control duties can include energized/de-energized commands to actuators, interposing devices and other compatible field circuits. Why maintenance teams search for this part
A failed output path can prevent a commanded field device from changing state. In a running process, that can interrupt an operating sequence or leave a controlled device unavailable until the output path is restored. |
TROUBLESHOOTING CONTEXT
When Replacement Becomes Urgent
|
|
FAST QUOTE SUPPORT
Confirm your 5X00270G01 requirement
Please provide Part Number · Quantity · Destination · Required Date · Machine/System
|
For system maintenance, these Ovation part numbers can be evaluated alongside the 5X00270G01 according to the installed I/O architecture and control function.
| 5X00270G01 24VDC High-Side Digital Output |
5X00274G01 Digital relay output family |
5X00275G01 Digital I/O family |
5X00276G01 24VDC relay output family |
|
Can 5X00270G01 be used when a critical 24VDC output has failed?
It is intended for 24VDC high-side digital output duties in an Ovation architecture. Replacement should match the installed control configuration and field-load requirements. Why does 5X00270G01 use a high-side output arrangement?
The high-side switching design controls the positive side of the 24VDC field circuit through an intelligent power switch. Does 5X00270G01 support redundant operation?
Yes. Series isolation diodes allow the module to operate in simplex mode or in a redundant arrangement with another compatible 24VDC HSDO module. |
What should be checked before ordering 5X00270G01?
Confirm the exact part number, channel function, 24VDC load requirements, installed I/O arrangement and whether the application uses simplex or redundancy. How much current can 5X00270G01 handle?
Each digital output channel is rated for sourcing up to 500mA. The total module current depends on the selected power arrangement and its applicable limit. Why is 5X00270G01 often considered during an unplanned shutdown?
A failed discrete output can stop a commanded field device from reaching its required state. For a process-critical command, restoring the correct output path can therefore become a time-sensitive maintenance task. |
|
