MOTOROLA COMPUTER GROUP
MVME5100

POWERPLUS II
HIGH-PERFORMANCE VME SBC
PowerPC VME Computing with ECC SDRAM and Dual Ethernet
01
PROCESSOR
PowerPC
MPC750 / 755 / 7410*


02
MEMORY
ECC SDRAM
Up to 512 MB*


03
NETWORK
Ethernet
Dual Ethernet interfaces



We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
*Processor and memory configuration varies with complete MVME5100 version.



INDUSTRIAL AUTOMATION

LET'S
CONNECT

✉   Miya zheng · SALES EMAIL   sales@amikon.cn ☎   86-18020776792






VME PROCESSOR PLATFORM
M
MOTOROLA COMPUTER GROUP
MVME5100

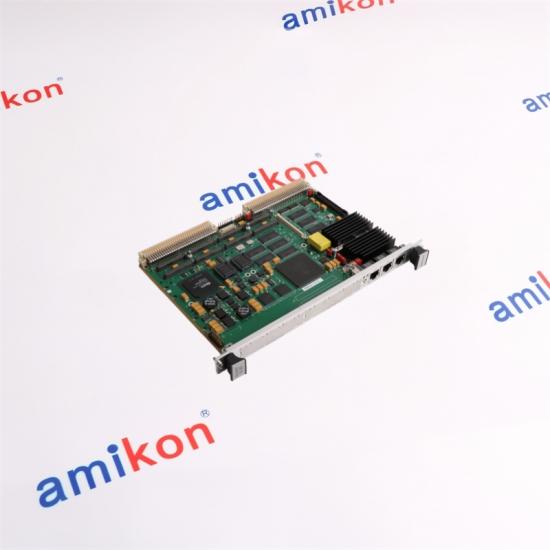

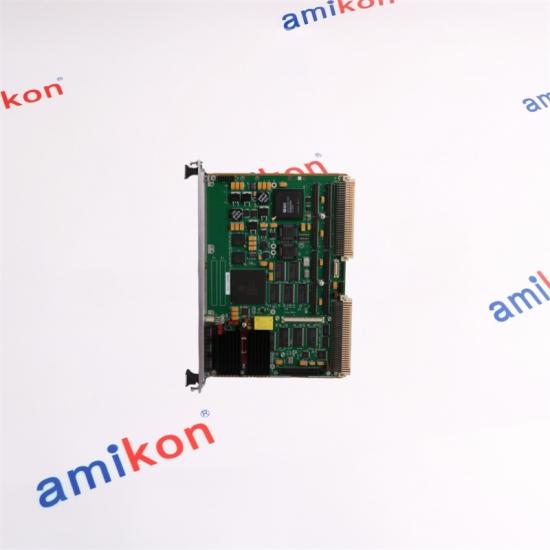

PowerPC VME Single Board Computer

The MVME5100 combines Motorola PowerPlus II architecture with a high-performance processor and memory subsystem, PCI connectivity, VMEbus access, dual Ethernet, serial interfaces and PMC expansion. Its architecture is intended for demanding embedded computing and control environments where VMEbus integration and configurable I/O are important.

6U VME PowerPlus II PMC / PCI

PLATFORM SNAPSHOT
Processor family PowerPC
Bus frequency Up to 100 MHz
Main memory ECC SDRAM
Expansion 2 × PMC
Form factor 6U VME
INDUSTRIAL COMPUTING / VME


01 / CORE ARCHITECTURE
Built Around a Scalable VME Computing Architecture

PowerPlus II Architecture

MVME5100 belongs to Motorola's PowerPlus II VME processor family. The architecture combines processor, memory control and PCI host bridge functions around the Hawk ASIC, while a Universe VME controller provides the bridge into the VMEbus environment.

PROCESSING OPTIONS

Depending on the exact MVME5100 configuration, the platform supports MPC7400 / MPC7410 processors with AltiVec capability as well as MPC750-class and MPC755-class processors.
H-AWK / PCI / VME
PROCESSOR
PowerPC
MPC7400 / 7410 / 750 / 755 families
 →
HAWK ASIC
SMC + PHB
Memory controller / PCI bridge
 →
SYSTEM BUS
PCI / VME
Expansion and system access
Memory PC100 ECC SDRAM PCI local bus 32/64-bit, 33 MHz
VME controller Universe II PMC slots 2 × 32/64-bit
02 / TECHNICAL PROFILE
System Configuration & I/O Structure
Processor family MPC7400 / MPC7410 / MPC750-class / MPC755-class, depending on configuration
Processor bus Up to 100 MHz
L1 cache 32 KB instruction + 32 KB data
L2 cache 1 MB or 2 MB depending on processor configuration
Main memory PC100 ECC SDRAM, 32 MB to 512 MB onboard; expandable to 1 GB with RAM500 mezzanine modules
Flash Up to 17 MB total Flash capacity depending on configuration
NVRAM 32 KB NVRAM with time-of-day clock and battery backup
PCI 32/64-bit PCI local bus, 33 MHz
PMC Two IEEE P1386.1 compatible 32/64-bit PMC slots
Form factor 6U VME single board computer

Connectivity Layer
01 Dual Ethernet
Two 10BaseT/100BaseTX Ethernet interfaces are provided, with routing dependent on board configuration.
02 Serial Interfaces
Dual 16550-compatible asynchronous serial interfaces support console and system communication functions.
03 VMEbus
Universe controller functionality provides VMEbus access, interrupt handling and programmable DMA support.
04 Expansion
Two PMC positions and a PCI expansion connector provide a configurable path for additional functionality.
MEMORY EXPANSION

RAM500 memory mezzanine modules can be used to increase the available ECC SDRAM capacity. The exact memory combination depends on the installed board configuration.
03 / SYSTEM INTEGRATION
Designed for Configurable Embedded Systems
VME
Backplane Integration

The 6U board is designed to operate within a VMEbus chassis and can communicate with other VMEbus processors and peripherals.
PCI
High-Speed Expansion

The Hawk PCI host bridge connects the processor and memory domain with the PCI local bus for expansion and peripheral access.
PMC
Modular I/O

Two PMC slots support configurable front-panel and rear-I/O arrangements according to the selected hardware combination.
I/O
Network + Serial

Dual Ethernet and dual serial interfaces provide practical connectivity for embedded control and service functions.
CONTROL FLOW PowerPC Processor → Hawk SMC / PHB → PCI / PMC / VME →
04 / MVME5100 FAMILY
Same-Series Configuration Context

The MVME5100 family was offered in multiple processor, memory, cache and front-panel configurations. Published configurations include boards using MPC7400/MPC7410 processors and lower-power MPC750/MPC755-class processors. Memory configurations could combine onboard ECC SDRAM with optional RAM500 mezzanine modules. Front-panel and rear-I/O arrangements could also vary through PMC, IPMC and transition-module combinations.

PROCESSOR OPTIONS
MPC7400 / MPC7410
AltiVec-enabled configurations
LOW-POWER OPTIONS
MPC750 / MPC755
Alternative processor configurations
MEMORY PATH
ECC SDRAM + RAM500
Expandable system memory architecture
I/O PATH
PMC / IPMC / Transition
Flexible system integration
05 / PROCUREMENT DESK
Need an MVME5100 Configuration?
Send the part number and application details so the requested configuration can be checked before quotation.
SALES MANAGER
Miya zheng
AMIKON industrial automation parts service
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
Delivery 3–5 days Warranty 12 months
Packaging Brand New Payment term T/T
Delivery way E-packing / FedEx / EMS / TNT / DHL / UPS
For quotation, please provide:
Part Number   |   Quantity   |   Destination   |   Required Date   |   Machine/System
Return / Replacement Terms

Please contact us within 7 days after receiving the items if there is any issue. Returned items should remain in their original condition and include the specific reason for return. A return or replacement can be arranged after the returned item is received and checked. Shipping costs arising from the return are the buyer's responsibility.

06 / BUYER QUESTIONS
MVME5100 Purchasing & Compatibility FAQ
Can MVME5100 replace an older VME PowerPC processor board?

Potentially, but replacement should be checked against the installed VME chassis, backplane requirements, processor configuration, P2 I/O arrangement, PMC/IPMC usage, transition module and software environment. The MVME5100 supports configurable VME and rear-I/O arrangements rather than one universal I/O combination.

How should MVME5100 memory be matched when replacing a board?

Memory capacity is configuration-dependent. The family supports onboard ECC SDRAM and optional RAM500 memory mezzanine modules, so the replacement should be matched by exact board configuration rather than by the MVME5100 family name alone.

Can MVME5100 retain an existing PMC-based I/O architecture?

The platform provides two 32/64-bit PMC positions and supports rear-I/O arrangements. Compatibility depends on the PMC type, installed transition hardware and the selected P2 mode, so the existing PMC and rear-I/O path should be matched before ordering.
What should be checked when an MVME5100 is used with a legacy transition module?

The MVME5100 can support legacy I/O arrangements through IPMC761 or IPMC712 configurations. The exact transition module, P2 adapter and jumper configuration must correspond to the intended I/O mode.

Does MVME5100 use the same processor and cache configuration in every version?

No. The MVME5100 family includes different processor configurations. Published versions include MPC7400/MPC7410 and MPC750/MPC755-class processors, with L2 cache capacity varying according to the processor configuration. Exact part-number matching is therefore important when replacing an installed board.
