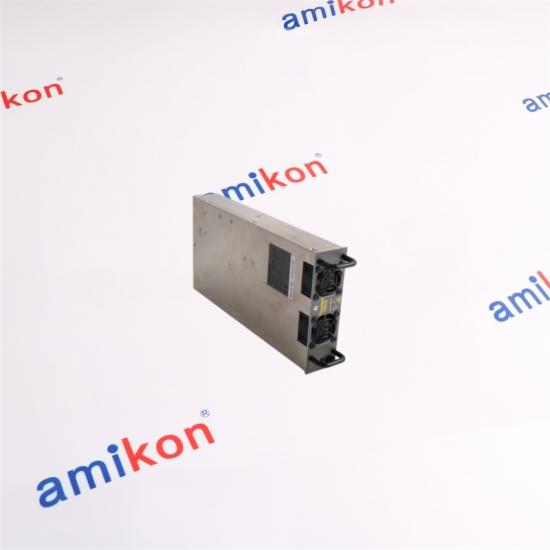

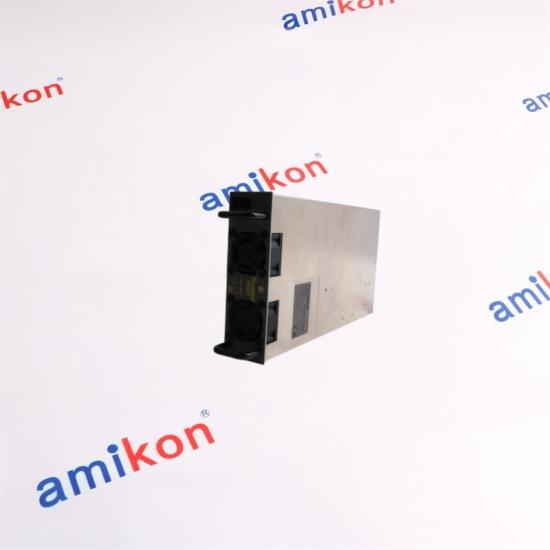

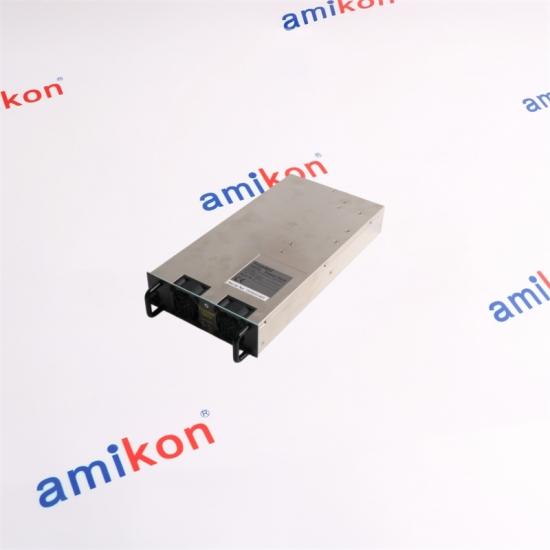

ICS Triplex T8290C Trusted Output Power Distribution Unit

ICS Triplex T8290C
ICS Triplex T8290C
ICS Triplex T8290C

ICS Triplex T8290C Trusted Output Power Distribution Unit

Calculate shipping
Quotation Request

TRUSTED POWER DISTRIBUTION
T8290C
OUTPUT POWER DISTRIBUTION MODULE

Trusted output power distribution hardware for distributing field power to compatible output modules.
60 A
MAX.

DC
POWER
02
KEY PARAMETERS
SUPPLY RANGE 18–140 Vdc
MAXIMUM CURRENT 60 A max.
PRODUCT TYPE Output Power Distribution
SYSTEM ROLE
Provides the power-distribution function used within the Trusted architecture.
◇ ◆ ◇ ◆ ◇
T8290
AMIKON INDUSTRIAL AUTOMATION
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
✦ SALES MANAGER: MIYA ZHENG ✉ sales@amikon.cn ☎ 86-18020776792
TRUSTED · POWER · DISTRIBUTION





ICS TRIPLEX / TRUSTED T8290C DETAILS CONTACT FAQ SERVICE RECOMMENDED
TRUSTED OUTPUT POWER DISTRIBUTION
T8290C

Trusted Output Power Distribution Unit — Coated Configuration
A field-power distribution unit for Trusted sourcing output modules, designed to provide organized DC field-loop power and 0 V module reference connections within a DIN-rail-mounted Trusted architecture.
01 / ROLE
FIELD POWER ROUTING
Provides field-loop power and module reference distribution for supported Trusted sourcing output modules.
02 / CAPACITY
60 A
Maximum supply current rating.
03 / RANGE
22–120 Vdc
DC supply range specified for the T8290 family.
04 / MOUNTING
TS32 / TS35
DIN rail installation above associated output-module I/O connectors.
PRODUCT OVERVIEW
Power Distribution at the Cabinet Level

The Trusted Output Power Distribution Unit is designed to provide 24–120 Vdc for use with Trusted sourcing output modules such as the T8451 and T8471. It is installed on a DIN rail above the relevant output-module I/O connectors and distributes positive field-loop power together with the 0 V module reference.
The unit supports up to three Trusted sourcing output modules when the combined load remains within the unit's rated capacity. Its dual-stud power connection can be used for either a single feed or a dual-feed arrangement, while BLZ two-part connectors provide the 0 V module reference.
FEATURE 01
Single or Dual Feed
Two M6 × 25 mm positive supply studs allow the power connection to be arranged as a single feed or dual feed according to the system design.
FEATURE 02
Three Output Paths
Three 6-way AMP MATE-N-LOK power-output connectors are provided for connection to the associated output modules.
FEATURE 03
Reference Distribution
The unit provides the 0 V module reference through BLZ two-part connectors, keeping the field-power distribution arrangement organized around the output modules.
TECHNICAL PROFILE
T8290C Configuration Details
Product type Trusted Output Power Distribution Unit Supply voltage range 22–120 Vdc
Maximum supply current 60 A Positive supply connection 2 × M6 × 25 mm studs
0 V reference connector BLZ 2-part terminal Power outputs 3 × 6-way AMP MATE-N-LOK
0 V reference outputs 3 × 5-way BLZ two-part terminals Conductor clamping range 0.5–2.5 mm²
Mounting TS32 / TS35 DIN rail Operating humidity 5–95% RH
Operating temperature 0–60 °C Non-operating temperature −25–70 °C
Height 70 mm Width 90 mm
Depth 50 mm Weight 106 g
SYSTEM POSITION
A Dedicated Power Layer for Trusted Outputs
T8290C sits between the DC field-power source and compatible Trusted sourcing output modules. Its physical arrangement is intended for cabinet installation above the relevant output-module I/O connectors, giving the power distribution path a defined location within the control cabinet.
DC supply → T8290C distribution → Trusted sourcing output modules → field circuits
APPLICATION CONSIDERATION
Match the Power Architecture
T8290 is intended for Trusted sourcing output modules. Newer applications using Trusted analogue output modules, or output modules obtaining their 0 V reference through Trusted VFTAs, should instead evaluate the diode-protected T8297 configuration.
The correct distribution unit should be selected according to the output-module architecture and how the 0 V reference is arranged.
SAME FAMILY
T82xx Power Architecture
The T82xx range contains several power and cabinet-support components. The final model should be matched to the actual power-distribution function required by the Trusted installation.
T8290 / T8290C Output Power Distribution Unit Trusted sourcing output power distribution
T8292C Power Distribution Unit, MCB 24 Vdc Circuit-breaker based 24 Vdc distribution
T8293C Power Distribution Module, 15-way fused Fused power distribution architecture
T8297 Output Power Distribution Unit, Diode Protected For specified newer output configurations
T8290
REPLACEMENT SCENARIO
When the Distribution Layer Becomes the Suspect
When a Trusted output section loses the expected field supply, a replacement assessment should not focus only on the output module. The power-distribution layer, supply connection, 0 V reference path, associated cables and connector condition should also be checked. A T8290C replacement should preserve the intended Trusted power-distribution architecture rather than simply matching physical appearance.
Check 01 Exact part number and coated variant Check 02 Output-module compatibility
Check 03 Supply voltage and current requirement Check 04 Connector and cable arrangement
AMIKON SALES DESK
Request a T8290C Quote
For a faster quotation, send the complete part number together with your quantity, destination and required delivery timing. Our team can then review the requested configuration for your machine or system.
 EMAIL SALES   |   sales@amikon.cn PHONE / WHATSAPP   |   86-18020776792
Delivery 3–5 days Warranty 12 months Packaging Brand New
Delivery way E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term T/T
PLEASE INCLUDE THESE FIVE ITEMS WITH YOUR INQUIRY
Part Number   •   Quantity   •   Destination   •   Required Date   •   Machine/System
BUYER-FOCUSED FAQ
T8290C Purchasing Questions

01
Does T8290C make sense when the existing Trusted output section is still using the original power-distribution arrangement?
Yes, provided the existing architecture calls for the Trusted Output Power Distribution Unit function and the replacement matches the installed output modules and power arrangement. The T8290 family is intended for Trusted sourcing output modules and supports up to three such modules within its rated capacity.
02
Can T8290C be treated as a direct replacement for T8297 when the output architecture has changed?
Not automatically. The T8290 family is intended for the established Trusted sourcing-output power arrangement, while Rockwell identifies T8297 as the diode-protected distribution unit for newer configurations involving specified analogue output modules or output modules obtaining their 0 V reference through VFTAs. The installed architecture should therefore be checked before substituting one for the other.
03
What should a buyer verify before ordering T8290C for a failed field-power distribution point?
Verify the exact T8290C designation, the connected Trusted output-module models, the DC supply range, the maximum current requirement, the dual-stud supply arrangement, the 6-way output connectors and the 0 V reference connection. Checking the complete power path is especially important when replacing a component in an established safety-control cabinet.
04
Why would a project require T8290C instead of a standard T8290 designation?
The C suffix is used for the coated configuration within the Trusted product family. When replacing equipment in an installation that specifically requires the coated variant, the complete catalog designation should be matched rather than substituting the visually similar base T8290 without checking the installed system requirements.
05
Could a T8290C power-distribution problem appear to be an output-module failure?
It can be necessary to distinguish the distribution layer from the output module when a field circuit loses its expected supply. The T8290 distributes positive field-loop power and the 0 V module reference, so supply studs, reference connections, output connectors and associated cabling should be checked alongside the output module before selecting the replacement component.
