HONEYWELL • UNIVERSAL MARSHALLING

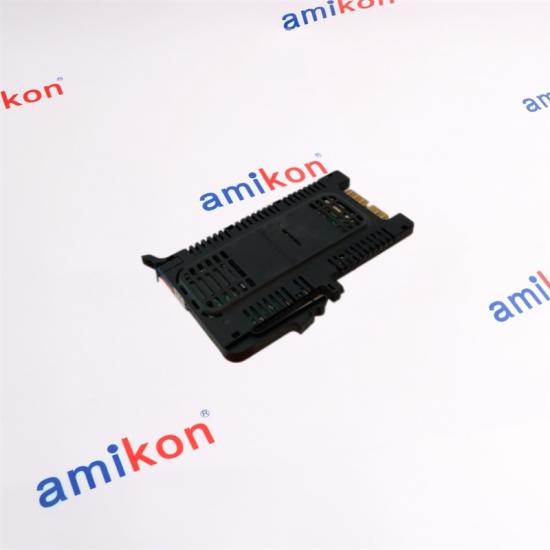

FC-UGAO01

Analog Output Barrier

Single-channel galvanically isolated barrier for intrinsically safe analog output applications.

SIL

4–20

mA / HART

3-WAY

ISOLATION

HONEYWELL

FC-UGAO01

ANALOG OUTPUT
BARRIER

PRODUCT VISUAL AREA

FC-UGAO01

01 / PRODUCT POSITION

Built around safe
analog signal transfer.

FC-UGAO01 is a single-channel galvanically isolated analog output barrier within Honeywell's Universal Marshalling Solution. Its role is to provide an isolated 4–20 mA analog output path with HART capability for intrinsically safe applications.

DESIGN LOGIC

01	Galvanic isolation Three-way isolation separates the relevant circuit domains.
02	Signal continuity 4–20 mA output operation is paired with HART capability.
03	Field-side protection Reverse-polarity protection and open-wire fault transparency are incorporated.

02 / TECHNICAL CORE

FC-UGAO01 at a glance

Product Type	Analog Output Barrier
Channels	1
Signal	4–20 mA with HART
Safety Rating	SIL 2

Isolation	3-way galvanic
Power Supply	24 VDC
Rated Current	55 mA @ 24 V
Mounting	Back-plane, screw-less

MECHANICAL

141.5 × 85.75 × 10 mm

Length × Width × Height

FIELD SIGNAL

4–20 mA + HART

Two-wire field-side interface

SIGNAL PATH

DCS / Safety System

FC-UGAO01

Field

Isolation

4–20 mA / HART

03 / SYSTEM ROLE

Where this module
matters most

FC-UGAO01 is intended for analog output signal conditioning in Honeywell Universal Marshalling Solution architectures, particularly where an isolated analog path is required between the system side and an intrinsically safe field circuit.

Normal role

Analog output transmission with galvanic isolation and HART capability.

Typical search trigger

Loss of an expected analog output path, barrier fault, open-wire condition or suspected isolation problem.

When a control loop suddenly loses its expected analog output

A failed barrier can interrupt the intended field signal path. In a live process, the resulting loss or abnormal output may prevent the connected field device from receiving its commanded value and can contribute to process interruption or protective action. For maintenance teams, matching the installed FC-UGAO01 configuration is therefore important when restoring the original signal path.

04 / ENGINEERING DETAILS

Small module. Critical signal path.

Open-wire transparency

Field-side open-wire conditions can remain transparent to the connected system.

Reverse polarity protection

Protection is incorporated into the barrier architecture for the relevant field connection.

Compact back-plane assembly

Screw-less back-plane mounting supports a compact Universal Marshalling arrangement.

05 / RELATED CONFIGURATIONS

Choose by signal function, not appearance.

For replacement work, the surrounding system architecture matters as much as the module name. FC-UGAO01 is the analog-output barrier position; other Universal Marshalling safety adapters serve different signal roles and should not be treated as direct substitutes without checking the installed architecture.

SAME FAMILY / DIFFERENT ROLE

FC-UGAI01	Analog Input Barrier
FC-UGAO01	Analog Output Barrier
FC-UGDA01	Digital I/O Barrier

06 / PURCHASE DECISION

Five questions worth asking

Why is FC-UGAO01 usually purchased as a replacement rather than as a new project component?

It is commonly sought when an installed analog output barrier has become unavailable or has developed a field signal problem. Keeping the same part number can reduce uncertainty around the existing Universal Marshalling architecture compared with changing the signal-conditioning function at the same time as the repair.

When should I insist on the exact FC-UGAO01 instead of selecting another analog module?

When the installed architecture specifically requires a single-channel analog output barrier with the FC-UGAO01 role, replacing it with an analog input or digital barrier changes the signal function. The correct replacement should preserve the intended signal direction, isolation arrangement and field interface.

Could an FC-UGAI01 be used simply because it belongs to the same family?

No. FC-UGAI01 serves the analog-input barrier function, while FC-UGAO01 serves the analog-output barrier function. The signal direction is fundamental, so the two should not be treated as interchangeable merely because their housings and family names are similar.

What makes this part worth keeping as a maintenance spare?

The module sits directly in a signal path where a failed barrier can interrupt the intended analog output to a field device. Holding the exact replacement can shorten the decision stage during a fault because the maintenance team is restoring an established signal-conditioning position rather than redesigning it under shutdown pressure.

What should be checked before ordering a replacement?

Confirm the installed part number, signal direction, channel requirement, Universal Marshalling arrangement and field-side connection. If the application uses HART or an intrinsically safe field circuit, those characteristics should also match the installed design before replacement.

REPLACEMENT LOGIC

Exact role → Exact part number

A family match alone is not enough when the signal direction or field function changes.
