HONEYWELL / DC1000 SERIES
Industrial digital process control platform
|

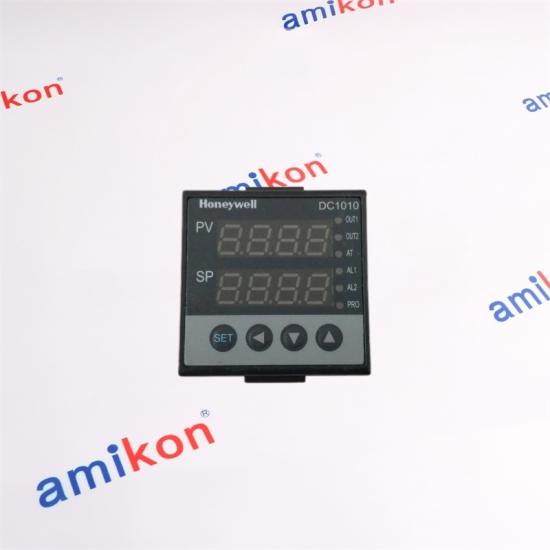

1/16 DIN DIGITAL CONTROLLER
DC1010CR-101000-E
RTD input • Relay control output • Single alarm configuration
Compact panel-mounted control for temperature and process applications requiring a defined DC1000 configuration.
|
CONFIGURATION
1/16 DIN
RTD input
Relay output
1 alarm
|
|
01 / INPUT
The DC1010CR execution is configured for an RTD process input. This makes the controller suitable for applications where temperature is represented by a resistance-temperature detector.
Input execution: RTD
|
02 / CONTROL
The DC1000 family supports PID and ON/OFF control strategies. The exact DC1010CR-101000-E configuration uses its defined control-output arrangement rather than a second control output.
Relay control output
|
03 / DISPLAY
The DC1000 platform provides dual four-digit, seven-segment LED indication for process value and setpoint display, giving operators a direct front-panel view of the control loop.
Dual 4-digit / 7-segment LED
|
|
TECHNICAL
PROFILE A compact DC1000 controller configuration combining RTD measurement, single-loop control and relay switching in a 1/16 DIN panel format.
|
|
|
DC1010
1/16 DIN form factor
Compact single-loop architecture
|
DC1020
1/8 DIN form factor
Larger panel format within the same family
|
DC1030
3/16 DIN form factor
Expanded panel footprint
|
DC1040
1/4 DIN form factor
Largest standard panel format in the family
|
| ◆ | Configuration distinction: DC1010CR-101000-E is not simply a generic DC1010 controller. The order code specifies the CR RTD input execution, relay control output, single alarm arrangement, and the absence of second output, auxiliary output, remote setpoint and communications options. Exact configuration matching is therefore important when replacing an installed unit. |
|
SELECTION FOCUS
For an installed DC1000 controller, the complete model code should be matched before replacement. The DC1010CR-101000-E code establishes the controller size, RTD input execution, relay output arrangement, alarm configuration and English documentation designation. Particular attention should be given to input type, output contact arrangement, alarm quantity, supply range and optional communication hardware when comparing nearby DC1000 configurations. |
|
|
REQUEST & VERIFICATION
Confirm the complete part number, quantity, destination and required date before quotation.
|
|
01 · Can DC1010CR-101000-E replace another DC1010 with the same 48 × 48 mm size?
Not by size alone. The DC1010 family contains different input, output, alarm and option configurations. DC1010CR-101000-E specifically uses RTD input, relay output and one alarm, with the remaining option positions configured as specified by its complete order code.
|
02 · Is the RTD capability of DC1010CR-101000-E interchangeable with a linear-input DC1010?
No configuration should be assumed interchangeable solely from the DC1010 family name. The “CR” execution identifies the RTD input version, while other DC1010 configurations use different input definitions.
|
|
03 · What should be checked on DC1010CR-101000-E before a replacement is installed?
Verify the complete model marking, RTD wiring, relay contact arrangement, alarm wiring, supply voltage, panel dimensions and all connected field circuits. The installed configuration should match the replacement configuration before commissioning.
|
04 · Does DC1010CR-101000-E include a second control output?
No. The exact configuration identifies control output 1 as the relay output and control output 2 as not fitted. A nearby DC1000 configuration with an additional output should therefore not be treated as an automatic substitute.
|
|
05 · Does DC1010CR-101000-E have built-in communications?
The listed configuration has no communications option. The wider DC1000 family can be ordered with communication capabilities, but that option must be present in the exact model code rather than assumed from the family name.
|
|
|
