SERIES C
DIGITAL OUTPUT
|
HONEYWELL · EXPERION PKS

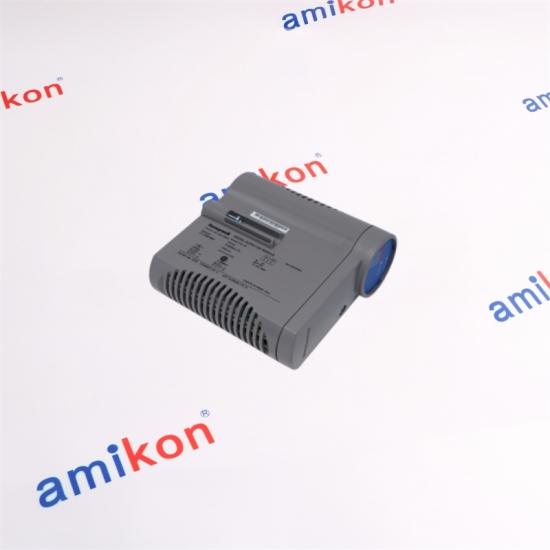

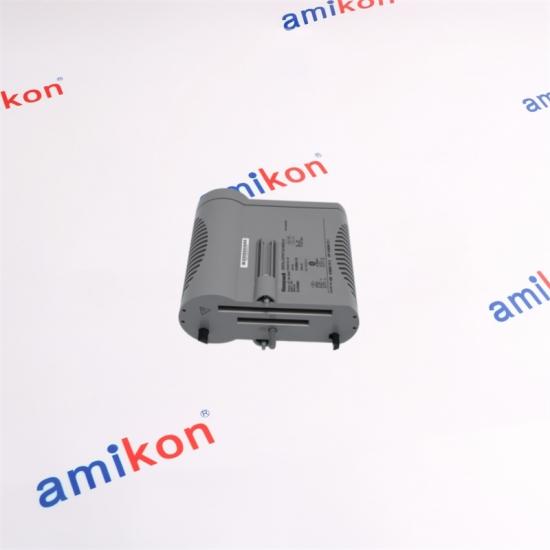

CC-PDOD51
24 VDC Sink-Type Digital Output Module
32-channel bussed output · Open-drain topology · Field-isolated design
|
|
OUTPUT CHANNELS
32
|
LOAD VOLTAGE
30 VDC Max.
|
CURRENT / CHANNEL
0.1 A Max.
|
SWITCHING TIME
10 ms Max.
|
|
How the CC-PDOD51 Works
The Honeywell CC-PDOD51 is a Series C digital output module intended for discrete control in compatible Experion PKS installations. Its 32 output channels use a sink-type, open-drain arrangement. When selecting a replacement, the output topology must match the field circuit: the module sinks current rather than acting as a source-type output. The bussed output arrangement shares a common return. Depending on the approved wiring configuration, field power may be supplied from the system power arrangement or an external 24 VDC source. Using external field power can provide system-to-field galvanic isolation as specified for the configured installation. Selection point
Match the sink-output circuit, field supply, IOTA and control-system revision before replacing a module. A matching model name alone does not establish complete system compatibility.
|
ELECTRICAL PROFILE
*Isolation rating applies to system-to-field isolation with user-supplied field power, as configured for the module.
|
| ✳ |
Output Protection and Configurable Failure Response
The Series C output design includes electronic overcurrent protection and supports configurable failure behavior through the channel-level FAILOPT setting. Depending on the configured strategy, a channel may hold its last value or move to a user-defined safe value. The selected response must be reviewed against the process risk assessment and the approved control strategy; it should not be assumed from the module model alone. |
|
A — Confirm the Output Type
Check that the existing application requires a sink-type open-drain output, not a source-type output or relay output.
|
B — Confirm Field Loads
Check that the field supply and each connected load stay within the maximum rated voltage and 0.1 A per-channel limit.
|
|
C — Match the IOTA
CC-TDOD51 is associated with the non-redundant arrangement. Confirm the actual terminal assembly and wiring configuration in the installed system.
|
D — Check System Revision
Confirm the Experion PKS release and module configuration. The CC-PDOD51 family is associated with R410 and later; earlier releases may not support it as expected.
|
|
NEED HELP MATCHING YOUR INSTALLED UNIT?
Request a CC-PDOD51 Compatibility Check
Send the full part number, terminal assembly model and Experion PKS version. AMIKON can help review your spare-parts requirements before you place an order.
|
EMAIL OUR SALES TEAM ↗ CONTACT VIA WHATSAPP ↗ |
| MODULE | OUTPUT FUNCTION | SELECTION CONSIDERATION |
| CC-PDOD51 | 32-channel sink / open drain | Use when the existing field circuit requires sink-type output and the rated load limits are suitable. |
| CC-PDOB01 | Bussed 24 VDC source-type digital output | Different output topology. It is not an automatic drop-in substitute for a sink-output application; verify field wiring and the IOTA. |
| CC-TDOD51 | Non-redundant IOTA assembly | Associated with the CC-PDOD51 installation. Confirm the exact terminal assembly and field wiring before ordering. |
| CC-TDOD61 | Redundant IOTA arrangement | Relevant where the approved design uses redundancy. Confirm the complete module/IOTA configuration and switchover requirements. |
|
05 / CONTACT AMIKON
Discuss Your CC-PDOD51 Requirement
Send your quantity, destination, required date, machine or system details, and the full part number. This helps us review the correct configuration and shipping request.
Sales Manager: Miya zheng
|
✉ sales@amikon.cn ☎ 86-18020776792 / WhatsApp
Delivery: 3–5 days, subject to availability and order confirmation.
Warranty: 12 months, subject to the agreed sales terms.
Payment: T/T. Shipping options can include FedEx, EMS, TNT, DHL and UPS.
|
| Q1 |
Can the Honeywell CC-PDOD51 replace a source-type output module without changing the field wiring?
Not automatically. CC-PDOD51 uses sink-type open-drain outputs, while a source-type module has a different electrical function. Check the field circuit, load polarity, terminal assembly and control configuration before approving a replacement.
|
| Q2 |
What load limits should be checked when specifying the Honeywell CC-PDOD51 for solenoids or interposing relays?
The specified maximum load voltage is 30 VDC and the maximum channel current is 0.1 A. Confirm the steady-state and switching requirements of the actual load, including any interface or suppression components required by the application.
|
| Q3 |
Which IOTA should be checked when ordering a Honeywell CC-PDOD51 for an existing Series C rack?
CC-TDOD51 is associated with the non-redundant configuration. A redundant installation may use a different terminal assembly. Verify the installed IOTA model, physical arrangement and wiring before purchasing a replacement module.
|
| Q4 |
How does the Honeywell CC-PDOD51 handle an output failure, and what should be confirmed before commissioning?
The module supports electronic overcurrent protection and configurable channel-level FAILOPT behavior, including holding the last value or moving to a configured safe value. Confirm the approved channel configuration and process safety requirements before commissioning; do not assume a default safe state.
|
| Q5 |
What must be checked before installing a Honeywell CC-PDOD51 in an older Experion PKS system?
Confirm the Experion PKS release, module generation and approved IOTA combination. The CC-PDOD51 variant is associated with R410 and later; compatibility with earlier releases should not be assumed. Verify the existing system configuration before arranging installation or commissioning.
|
|
