HONEYWELL SERIES-C I/O Overview Specifications Application FAQ Contact
HONEYWELL · SERIES-C DIGITAL INPUT

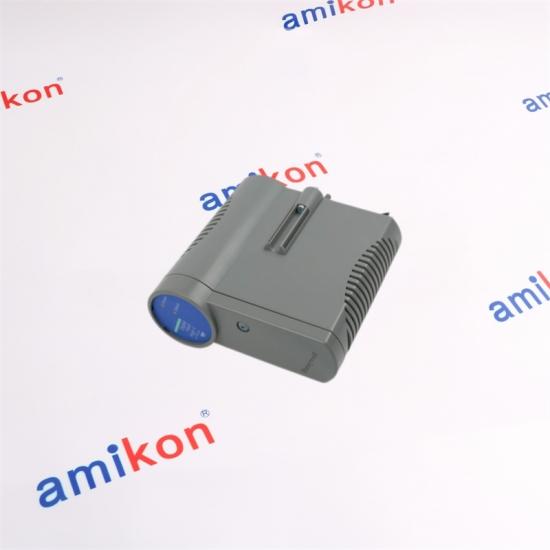

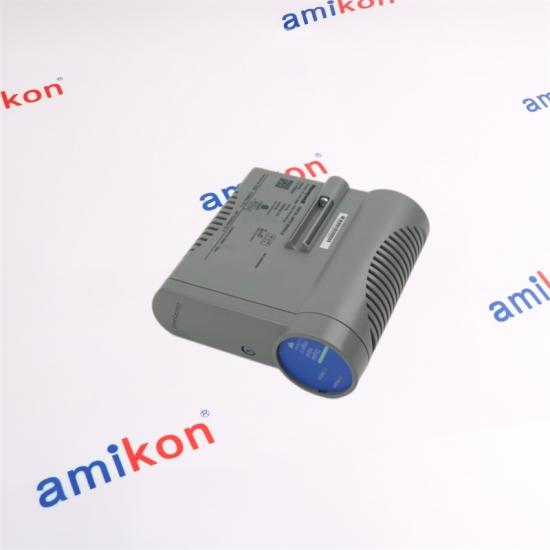

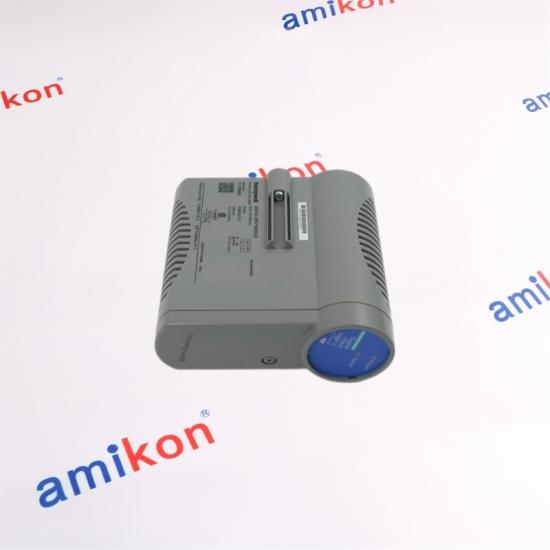

CC-PDIH01
High Voltage Digital Input Module
32
INPUT CHANNELS
1500V
FIELD / LOGIC ISOLATION
OPTICAL
ISOLATION METHOD
Built for high-voltage discrete input acquisition within Honeywell Series-C I/O architectures.
CC-PDIH01
32 CHANNEL DI


SERIES-C I/O · HIGH VOLTAGE INPUT
MODEL
CC-PDIH01
FUNCTION
Digital Input
CHANNELS
32 Inputs
ISOLATION
1500 VAC RMS
01 / CORE SPECIFICATIONS
Electrical Architecture

Input / Output Model CC-PDIH01
Input Channels 32
Isolation 1500 VAC RMS / ±1500 VDC
Isolation Technique Optical
Input Type High Voltage Digital Input

INPUT RANGE
120 / 240 V
AC / 125 VDC configurations
120 VAC range 90–132 VAC RMS
125 VDC range 100–138 VDC
240 VAC range 180–264 VAC RMS


02 / CONFIGURATION
Compatible IOTA Arrangements
IOTA Voltage Redundancy Typical Length
CC-TDI110 120 VAC / 125 VDC Non-Redundant 9 in.
CC-TDI120 120 VAC / 125 VDC Redundant 12 in.
CC-TDI151 120 VAC PROX Non-Redundant 12 in.
CC-TDI220 240 VAC Non-Redundant 9 in.
CC-TDI230 240 VAC Redundant 12 in.
INPUT PERFORMANCE
120 VAC / 125 VDC configuration
1.0 mA / 1.2 mA
Minimum ON sense current

Pickup threshold
90 VAC / 100 VDC min.
SIGNAL TIMING
Input filter + isolation delay
25 ms max.
120 VAC / 240 VAC configurations

Frequency range
47–63 Hz
03 / FIELD CONTEXT
Where CC-PDIH01 Matters
01
Process Status
Used to acquire high-voltage discrete states within Series-C I/O architectures, where field conditions must be transferred reliably into the control environment.
02
High-Voltage Signals
The module is designed around high-voltage discrete input applications, including 120 VAC, 125 VDC and 240 VAC arrangements depending on the selected IOTA.
03
Maintenance Scenario
A failed or unavailable input channel can prevent the control system from receiving an expected discrete state, making the correct replacement important when process availability is at risk.
Typical search trigger: maintenance teams may look for CC-PDIH01 when a Series-C high-voltage digital input point is unavailable, unstable, or requires module replacement during troubleshooting.
04 / DESIGN FEATURES
Optical Isolation
Field-to-logic isolation architecture
Galvanic Isolation
1500 VAC RMS or ±1500 VDC
Extensive Diagnostics
Designed to support data integrity monitoring
SIGNAL LOGIC



HV
High-Voltage Discrete State
The input circuit distinguishes ON/OFF conditions according to the selected high-voltage IOTA configuration.


05 / FAQ
CC-PDIH01 Purchasing Questions
Five practical questions for replacement and application decisions.
01 · Can CC-PDIH01 handle both AC and DC high-voltage inputs?
Yes, depending on the selected IOTA. The 120 VAC / 125 VDC arrangement supports both 120 VAC and 125 VDC input ranges, while the 240 VAC arrangement is intended for 240 VAC signals.
02 · Which part should be checked before replacing a failed CC-PDIH01?
The IOTA configuration is critical. Check whether the existing installation uses CC-TDI110, CC-TDI120, CC-TDI151, CC-TDI220 or CC-TDI230 so the replacement matches the installed voltage arrangement and redundancy architecture.
03 · What makes the isolation rating important in a replacement decision?
The field-to-logic isolation is rated at 1500 VAC RMS or ±1500 VDC. This is particularly relevant when replacing an input module in a high-voltage discrete signal path.
04 · Is redundancy determined by the CC-PDIH01 module itself?
The module supports optional redundancy through the appropriate redundant IOTA configuration. CC-TDI120 and CC-TDI230 are the redundant arrangements, while CC-TDI110 and CC-TDI220 are non-redundant configurations.
05 · What symptoms can make maintenance teams investigate this module?
Typical troubleshooting attention may arise when a high-voltage discrete point no longer changes state correctly, an expected field status is missing from the control environment, or an I/O channel requires replacement. Because the module is part of the input signal path, prolonged failure can leave associated process states unavailable to the controller.
