HONEYWELL 10005/1/1 Watch Dog Module

Calculate shipping

Quotation Request

Product module	10005/1/1
Brands	HONEYWELL
Payment	Paypa/TT
Condition	100% New
Weight	0.14KG
Production year	2024
country of origin	USA

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

HONEYWELL 10005/1/1 Watch Dog Module

Technical Specifications

10005/1/1 Watch Dog Module
Power requirements	5 VDC
Power requirements	100 mA
Operating temperature	0°C to 60°C (32°F to 140°F)
Accuracy	±0.1% of full scale
Power Requirements	24 VDC
galvanically isolated	5 Vdc
Dimensions	2x18.5x12.7cm

Product Description

The watchdog module monitors system parameters including:

• the application loop maximum execution time in order to detect if the process is executing its program correctly and is not looping (hang-up).

• the application loop minimum execution time in order to detect if the processor is executing its program correctly and is not skipping program parts.

• 5 Vdc voltage monitoring for overvoltage and undervoltage (5 Vdc ± 5 %).

• memory error logic from CPU, COM and MEM modules.

In case of a memory error, the watchdog output is de-energized. • ESD input to de-energize the watchdog output independently from the processor.

This ESD input is 24 Vdc and galvanically isolated from the internal 5 Vdc. In order to be able to test the WD module for all functions, the WD module itself is

a 2-out-of-3-voting system. Each section monitors the parameters described above. The maximum WDG OUT output current is 900 mA (fuse 1A) 5 Vdc.

If the number of output modules on the same 5 Vdc supply require a higher current (total of WD input currents of the output modules), then

a watchdog repeater (WDR, 10302/1/1) must be used, and the load must be divided over the WD and the WDR

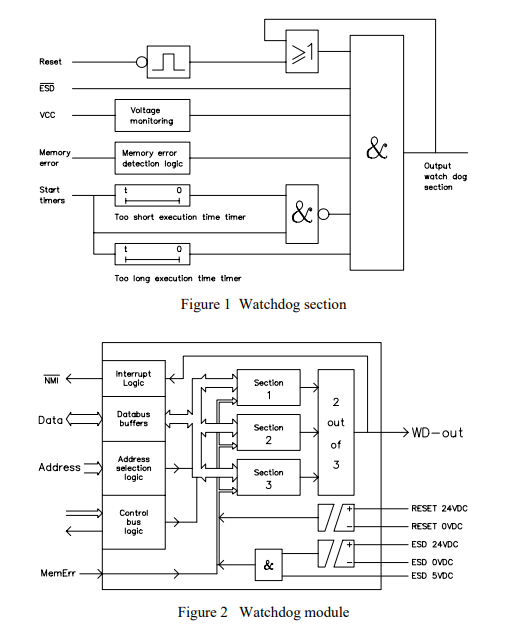

Figure

Recommended model

HONEYWELL	FS-SAI-0410	Safe analog input module
HONEYWELL	FC-SAI-0410	Safe analog input module
HONEYWELL	FS-SAI-1620m	Analog Input Module
HONEYWELL	FC-SAI-1620m	Analog Input Module
HONEYWELL	FA-SAI-1620m	Analog Input Module
HONEYWELL	FS-SDIL-1608	Digital Input Module
HONEYWELL	FS-SAO-0220m	Safe Analog Output Module
HONEYWELL	FC-SAO-0220m	Safe Analog Output Module
HONEYWELL	FS-SDO-0424	Digital Output Module
HONEYWELL	FC-SDO-0424	Digital Output Module
HONEYWELL	FS-SDOL-0424	Digital Output Module
