HIMAX SYSTEM COMPONENT
X-FAN 01

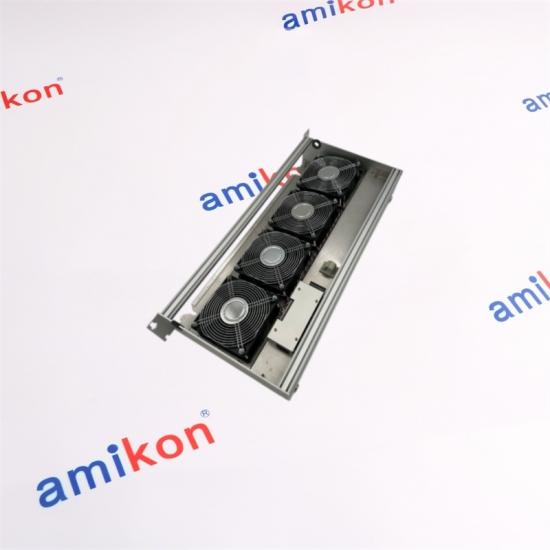

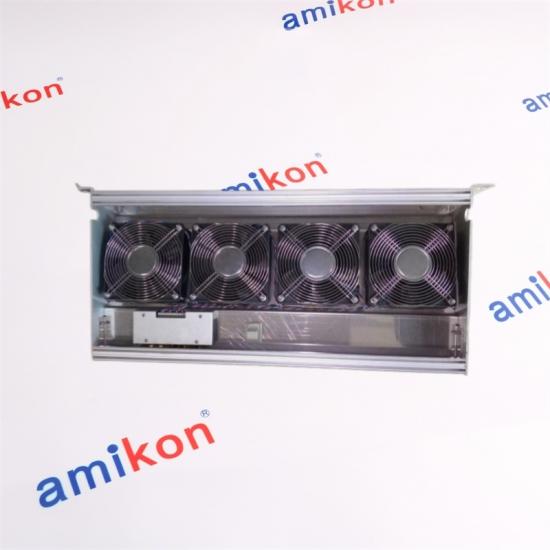

A dedicated HIMax system fan designed for the cooling arrangement of the HIMax base-plate architecture. Proper fan operation is an important part of maintaining the thermal conditions required by the installed HIMax modules.
HIMax System Fan Base Plate Cooling
|
PART NUMBER
X-FAN 01
HIMax system cooling architecture
|
|
Technical Profile
|
SYSTEM FIT
Cooling Role Within HIMax
HIMax is a modular safety-related control system in which processing, I/O and communication functions are distributed across plug-in modules and base plates. The X-FAN 01 belongs to the system cooling arrangement and supports the required thermal operating conditions of the installed modules.
|
|
X-BASE PLATE
Base-plate platform
|
X-CPU
Processor modules
|
X-SB
System bus function
|
X-FAN 01
System cooling
|
X-COM / I/O
Communication & I/O
|
|
DIRECT INDUSTRIAL SUPPORT
Talk to Miya
For exact-part confirmation, configuration checks and quotation requests.
|
|
|
01
|
Can X-FAN 01 be treated as an optional accessory in a HIMax installation?
No. The HIMax technical documentation states that HIMax modules are to be operated with an X-FAN 01 fan rack or a replacement type because cooling is required to prevent module overtemperature. For a replacement project, the existing fan arrangement should therefore be checked rather than omitted.
|
|
02
|
How should X-FAN 01 be matched when replacing an existing HIMax fan assembly?
The replacement should be matched to the installed HIMax base-plate and mounting arrangement. HIMA certification material distinguishes X-FAN configurations by slot quantity and mounting form, including 10-, 15- and 18-slot arrangements and backplane or 19-inch-frame mounting variants. Exact configuration checking is therefore important before ordering.
|
|
03
|
Does X-FAN 01 matter when an older HIMax rack is being restarted after a long shutdown?
Yes. Cooling should be checked as part of the restart because the HIMax architecture depends on the fan arrangement for thermal management. A long idle period does not remove the need for the specified cooling configuration, and the installed fan assembly should be checked for correct operation before returning the rack to service.
|
|
04
|
What HIMax operating conditions should be considered when sourcing X-FAN 01?
The published HIMax system rating specifies 20.4–28.8 VDC and an ambient temperature range of 0 to +60 °C. These are system-level conditions and should not be treated as a substitute for checking the exact fan assembly and rack configuration used in the application.
|
|
05
|
When ordering X-FAN 01 for a maintenance replacement, what should the buyer confirm first?
Confirm the exact part designation, the existing HIMax base-plate arrangement, slot configuration, mounting form and the required delivery quantity. For a quotation, providing the installed system or machine context helps avoid selecting a fan assembly that does not match the existing rack architecture.
|
 |
Keeping Production Moving
We work across industrial automation brands and product families to help maintenance teams locate the components needed for repair, replacement and system recovery.
|
 |
|
Supply & Delivery
|
RFQ CHECKPOINT
For a faster quotation, please provide:
• Part Number
• Quantity • Destination • Required Date • Machine / System |
|
