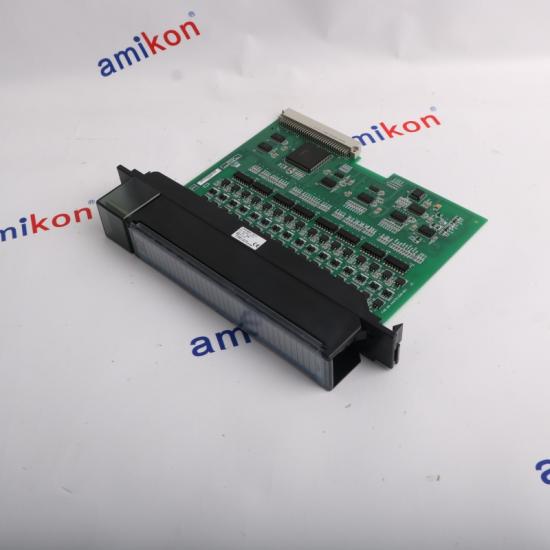

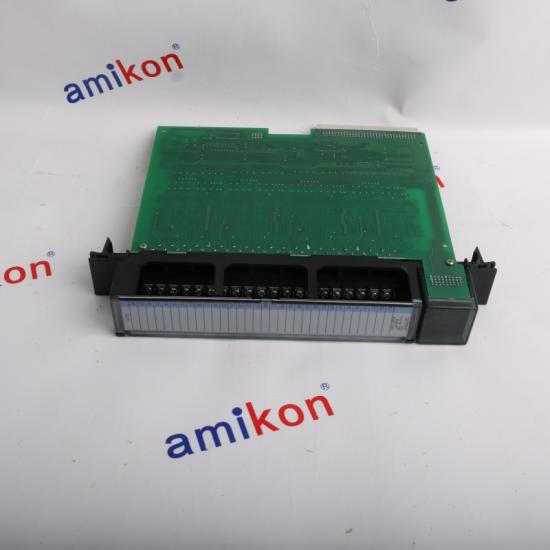

GE IC697MDL750 OUTPUT MODULE

Technical Specifications:

Rated voltage:24 to 48 Volts DC

Output voltage range:20 to 60 Volts DC

Required current:0.25 Amps

Output signal range:20-60 VDC

Maximum inrush current;10 A for 20 ms

Inrush current:10 Amps (maximum) for 20 milliseconds

Output current per channel:0.5 mA

Current draw:0.25A

Isolation, any output to Backplane (optical):1500VAC

Off-state Leakage:1 mA maximum

Isolation, Group to Group:500VAC

Module Mechanical Keying

In versions E and earlier, the module is mechanically keyed to ensure correct replacement with a similar module type in the field. Versions F and later do not use mechanical keying. The mechanical key prevents inadvertent substitution of one module type for another in a given slot.  The key fits a uniquely shaped area on the board below the connector. The key is included with each module. When the module is first installed, the key latches onto the backplane center rail.  When the module is extracted, the key remains in the center rail, configuring the slot to accept only identical module types. If it is necessary to change the module location in the rack after the key has been latched onto the center rail of the rack, the key can be removed by pushing it upward to unhook the latch while pulling it off the rail.  It can then be reinserted onto the module and the module inserted into the rack in the desired location.  Note: Only the power supply can be placed in the leftmost rack position.

Field Wiring

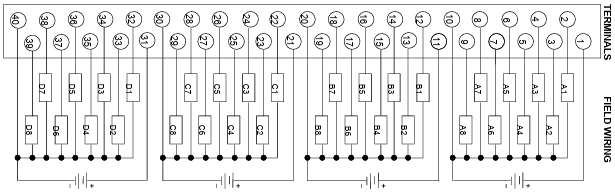

The module is wired as shown in Figure .  Since each group of eight outputs is isolated from the others, a wire from the power source to the power input terminals for each group is required (power input terminals for each group are not connected inside the module). The detachable field wiring terminal board will accept wire sizes from #22 (0.36 mm2) through #14 (2.10 mm2). Two wires may be terminated on a given lug if both wires are the same size.  There is room for a bundle of forty #14 (2.10 mm2) wires to be routed out through the terminal board cavity. The wire bundle can be secured to the terminal board by passing a cable tie through a cleat located at the lower corner of the terminal board.
