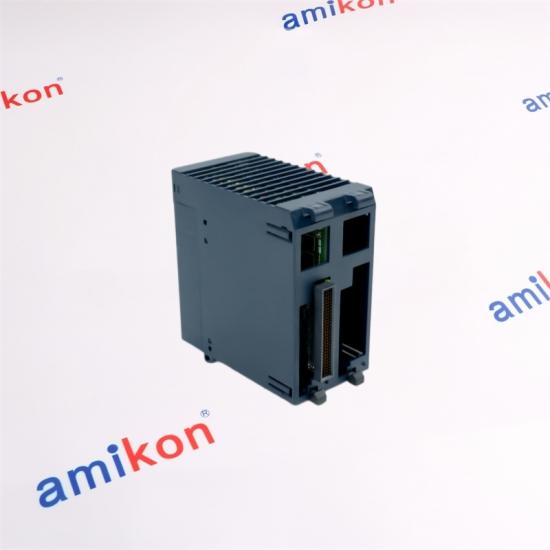

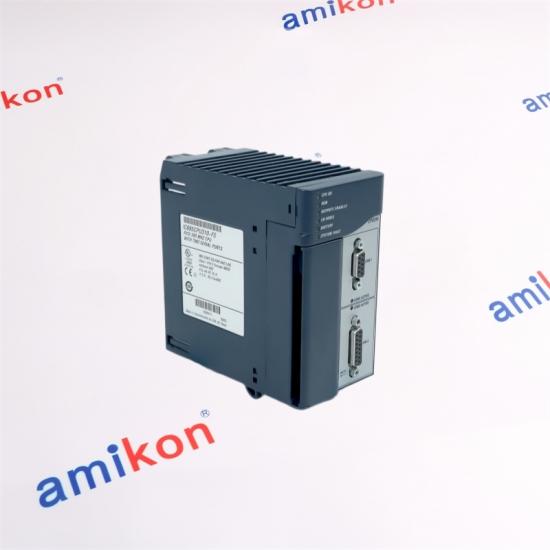

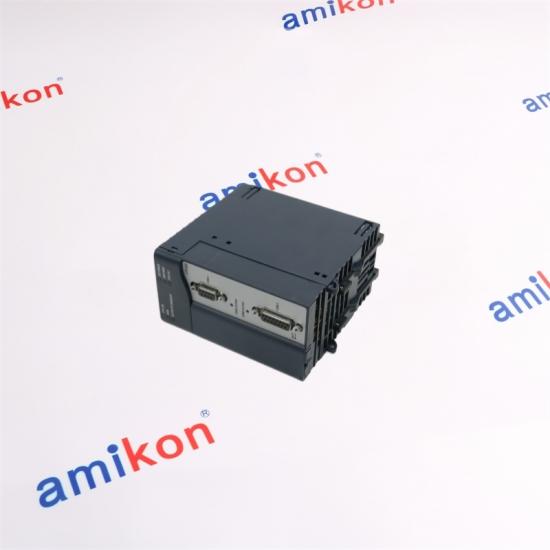

The IC695CPU315-CG belongs to the PACSystems RX3i CPU315 family and is designed for high-performance control applications requiring substantial user memory, fast processing and multiple programming options. The CPU combines a 1 GHz processor with 20 MB of battery-backed user memory and 20 MB of non-volatile flash user memory.
CPU SPEED
1 GHz
USER RAM
20 MB
FLASH
20 MB
BLOCKS
512
1PACSystems
RX3i CPU315
1 GHz / 20 MB
CONTROL ENGINE / MEMORY / SERIAL COMMUNICATION
Processing Architecture & Capacity
Microprocessor
1 GHz Intel Celeron M
Battery-Backed User Memory
20 MB
Non-Volatile Flash
20 MB
Floating Point
Supported
Boolean Execution
Approximately 0.047 ms per 1,000 Boolean instructions
Program Blocks
Up to 512; maximum block size 128 KB
Discrete Reference
32K bits for %I and 32K bits for %Q
Analog Reference
Up to 32K words each for %AI and %AQ
Bulk Memory
%W reference memory
Serial Ports
RS-232 and RS-485
Serial Protocols
SNP, Serial I/O, Modbus RTU Master/Slave
Programming
Ladder Diagram, Structured Text, Function Block Diagram and C
Control capacity: CPU315 is positioned around high-speed processing, large user-memory requirements and applications where program structure, symbolic variables and data volume need more room than entry-level RX3i CPUs.
CPU315 Family & RX3i System Relationship
CPU selection changes the processing and memory layer; the I/O and communication modules remain part of the wider RX3i control architecture.
Position
Role
Capacity / Interface
Selection Difference
IC695CPU315-CG
RX3i CPU
1 GHz / 20 MB RAM / 20 MB flash / RS-232 + RS-485
High processing and memory capacity within the CPU315 family
RX3i CPU310 Family
CPU layer
Lower processing tier than CPU315
Consider when application processing and memory demand is lower
RX3i CPU320 Family
CPU layer
Higher-end CPU315/320 class architecture
Consider when the project requirements exceed the CPU315 selection
RX3i I/O Modules
Field I/O
Discrete, analog and specialty I/O
Chosen by field signal and application function rather than CPU speed
RX3i Communication Modules
Network / device communication
Ethernet, PROFINET and other communication functions through appropriate modules
Selected according to required network topology and protocol
IC695CPU315-CG distinction: the CG revision belongs to the CPU315 revision sequence and adds monitoring capability for the CPU-to-CMX/RMX Memory Xchange module interface with the applicable firmware/module combination.
AMIKON STOCK NETWORK
Amikon's large stock is the core of our supply.
400,000+ electronic products.
PLC, HMI, drivers, servo, CNC, IPC and PG products across a broad industrial range.
STOCK / QUALITY / RESPONSE
Ready inventory for urgent requirements.
New or discontinued, from individual modules to complete configurations, stock is organized around industrial demand.
Strategic purchasing meets customer demand.
If a requested item is unavailable, Amikon searches its preferred supplier network to locate another available unit.
Market insight, technology development and customer demand guide strategic purchasing, helping maintain a broad industrial inventory without relying on unnecessary transfers.
PACSystems RX3i / QUOTATION REQUEST
Request IC695CPU315-CG
For a precise quotation, send the complete part number, quantity, destination, required date and installed machine/system details.
01 · Is IC695CPU315-CG a suitable replacement when the existing RX3i project already uses CPU315?
It is a CPU315-family revision, but replacement should be based on the complete article code, installed firmware, rack configuration, communication modules and application requirements. A matching family name alone should not be treated as sufficient for a controlled replacement.
02 · Does IC695CPU315-CG provide enough memory for applications with large symbolic-variable requirements?
CPU315 provides 20 MB of battery-backed user memory and 20 MB of non-volatile flash user memory. Auto-located symbolic variables can use available user memory, making the CPU315 architecture suitable for projects where program and data volume are important selection factors.
03 · What makes IC695CPU315-CG different from an earlier CPU315 revision?
The CG revision is associated with firmware 7.18 and adds the ability to monitor a new interface between the CPU and CMX/RMX Memory Xchange modules when the applicable module firmware is present. The complete revision and firmware combination should therefore be checked before a planned exchange.
04 · When should a buyer select IC695CPU315-CG rather than a smaller RX3i CPU?
CPU315 is positioned for applications needing its 1 GHz processing level, 20 MB user-memory capacity, 20 MB flash capacity, large reference tables and support for up to 512 program blocks. Projects with substantially lower processing and memory requirements may not need this CPU class.
05 · Can IC695CPU315-CG handle a control project that still depends on serial devices?
Yes. The CPU315 architecture provides both RS-232 and RS-485 serial ports and supports SNP, Serial I/O and Modbus serial communication. The final choice should also consider the exact connected devices, baud settings, protocol roles and existing application configuration.
Return & Replacement
Please contact us within 7 days after receiving the item if a problem occurs. The returned unit should remain in its original condition and include a specific reason for return. Once the return is received, a return or replacement can be arranged according to the confirmed order. The buyer is responsible for shipping costs generated by the return.
