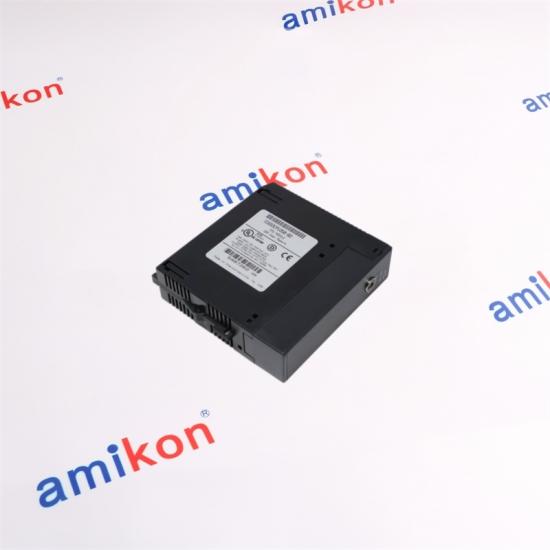

SERIES 90-30 / CPU 350
GE IC693CPU350
High-speed legacy PLC control in a single-slot architecture.
A proven Series 90-30 CPU architecture built around a 25 MHz 80386EX processor. IC693CPU350 supports 8 baseplates, 2,048 discrete inputs, 2,048 discrete outputs and extensive register memory within its defined system architecture.
|
CORE VALUES
25 MHz 80386EX processor
32 KB user program memory 0.22 ms / 1K Boolean scan |
| CPU CORE Series 90-30 single-slot CPU, 25 MHz 80386EX. |
SYSTEM SCALE Up to 8 baseplates, including expansion and remote baseplates. |
DATA HANDLING 9,999 register words, 2,048 AI words and 512 AQ words. |
|
AMIKON LIMITED / DIRECT INQUIRY
Need the exact part for your system?
Send the complete part number, quantity and destination. Our team can help confirm the requested model before quotation.
|
| 01 · 7 DAYS Please contact us within 7 days after receipt if a question occurs. |
02 · CONDITION Returned items should remain in original condition with the reason stated. |
03 · SHIPPING Return shipping costs are the buyer's responsibility. |
|
Why does IC693CPU350 matter when replacing a legacy Series 90-30 controller?
|
The CPU is a single-slot Series 90-30 processor with a 25 MHz 80386EX processor, 32 KB maximum user program memory and a typical 0.22 ms scan rate per 1K of Boolean logic. The receiving rack and project configuration should be checked before replacement. |
|
Which system capacity makes IC693CPU350 suitable for a larger 90-30 installation?
|
It supports up to 8 baseplates in the system: one CPU baseplate plus up to seven expansion and/or remote baseplates. It also provides 2,048 discrete input points and 2,048 discrete output points. |
|
How should IC693CPU350 communication capability be considered during replacement?
|
The CPU provides one serial connection through the PLC power-supply connector and supports SNP/SNP-X related communication functions. Additional LAN, Ethernet, FIP, PROFIBUS and other communications can be provided through compatible modules. |
|
What memory areas make IC693CPU350 useful for existing control logic?
|
The published capacity includes 9,999 register words, 2,048 analog-input words, 512 analog-output words, 4,096 internal coils, 256 temporary coils and 1,280 global-memory bits. |
|
What environmental check should be made before installing IC693CPU350?
|
The specified operating ambient range is 0 to 60 °C. The module also requires 670 mA from the +5 VDC supply, so the installed power supply and rack loading should be checked. |
