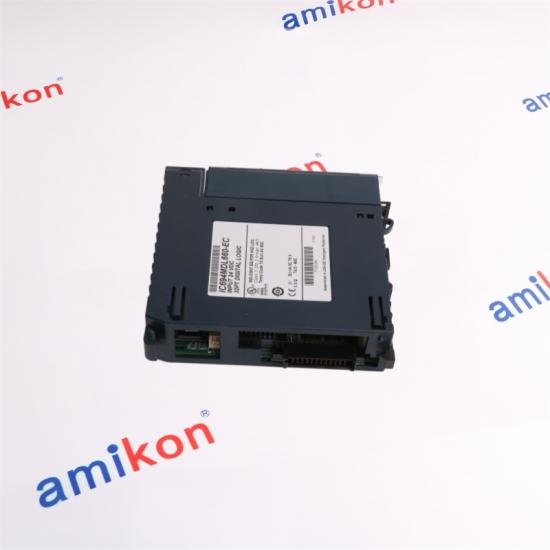

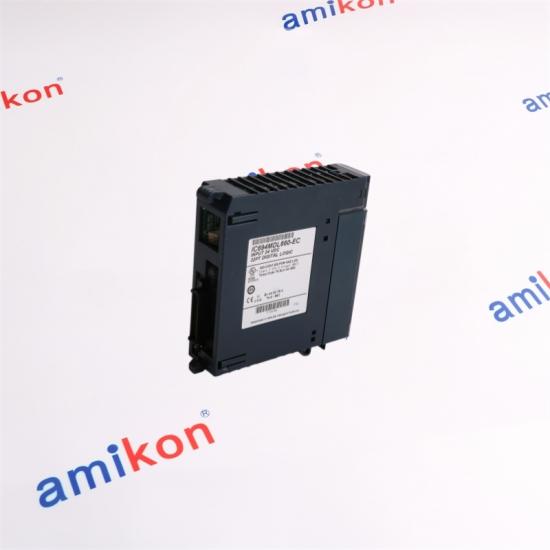

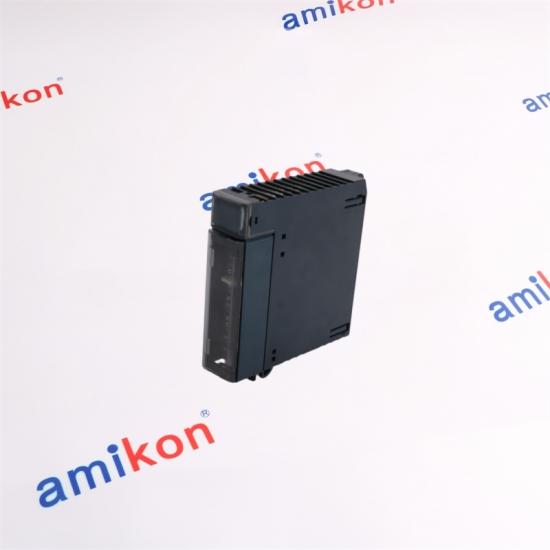

GE IC694MDL660-BC PACSystems RX3i 24 VDC positive/negative logic input module
|
PACSystems RX3i / DISCRETE INPUT
GE IC694MDL660-BC
|
Dense 24 VDC field sensing with four isolated input groups.
IC694MDL660 is a PACSystems RX3i 24 VDC positive/negative logic input module. It provides 32 points in four isolated groups of eight, supports seven selectable filter times and uses a removable front terminal block.
|
AT A GLANCE
32 discrete inputs
24 VDC / 0–30 VDC input range 7 selectable filter times |
| FIELD SIDE 32 inputs, four isolated groups, 24 VDC rated operation. |
CONTROL SIDE RX3i backplane communication and CPU-based configuration. |
FILTERING Seven selectable filter values from 0.5 ms to 100 ms. |
|
AMIKON LIMITED / DIRECT INQUIRY
Need the exact part for your system?
Send the complete part number, quantity and destination. Our team can help confirm the requested model before quotation.
|
| 01 · 7 DAYS Please contact us within 7 days after receipt if a question occurs. |
02 · CONDITION Returned items should remain in original condition with the reason stated. |
03 · SHIPPING Return shipping costs are the buyer's responsibility. |
|
Why is IC694MDL660-BC different from a conventional 24 VDC input bank?
|
IC694MDL660 provides 32 discrete inputs arranged as four isolated groups of eight. Each group has its own common, supporting positive- or negative-logic field wiring. |
|
How can IC694MDL660-BC filtering be matched to a real field device?
|
The module provides seven selectable filter settings: 0.5, 1, 2, 5, 10, 50 and 100 ms. The selected value affects both input response and the handling of short transitions. |
|
What controller platform is required for IC694MDL660-BC?
|
IC694MDL660 is an RX3i I/O module and must be used with an RX3i CPU release 2.90 or later. It is not intended for Series 90-30 PLC CPU operation. |
|
What should be checked at the terminal level before IC694MDL660-BC replacement?
|
Keep the four eight-point groups associated with their original commons, verify field polarity, confirm the terminal-block type and preserve configured filter values. |
|
How does IC694MDL660-BC report terminal-block status?
|
The removable terminal block has dedicated status indication, and the module reports terminal-block presence to the RX3i CPU. Thirty-two green LEDs indicate individual input states. |
