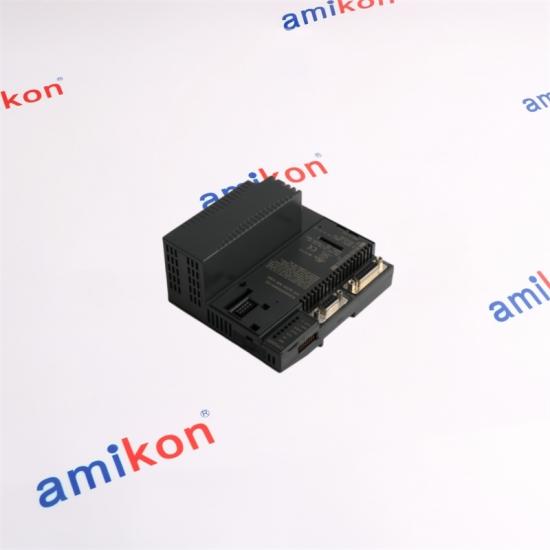

A compact VersaMax controller designed to coordinate modular I/O, execute application logic and communicate through embedded RS-232 and RS-485 interfaces. The CE revision provides 128 KB of configurable memory and firmware revision 2.34.
MEMORY
128 KB
Configurable application memory
SERIAL
RS-232 + RS-485
Embedded communication ports
CAPACITY
64 Modules
Up to 2,048 I/O points
EXECUTION
0.8 ms/K
Typical Boolean execution
CONTROL CORE / CPU005-CE
01 / Processing & Memory
IC200CPU005-CE provides 128 KB of configurable memory for the application program, hardware configuration, registers, analog input and analog output areas. Program storage uses system Flash together with battery-backed RAM.
The CPU supports floating-point operation and delivers a typical Boolean execution speed of 0.8 ms/K, making it suitable for compact machine-control and distributed I/O applications.
02 / Modular Architecture
The CPU is designed as the controller for a VersaMax modular system and can support up to 64 modules with as many as 2,048 I/O points. Autoconfiguration or programmer-based configuration can be used according to the application.
Its compact DIN-rail form is approximately 106.7 mm wide, 128 mm long and 69.1 mm deep.
03 / Serial Communication
Port 1 provides RS-232 communication and Port 2 provides RS-485 communication. The CPU supports SNP slave and RTU slave communication functions, while the CE revision adds support for 32-bit Modbus register data and improved serial communication throughput.
04 / Revision Advantage
The CE revision corresponds to firmware version 2.34. Compared with earlier CPU005 revisions, it brings the 128 KB configurable memory level, 32-bit Modbus register support, an updated PID function block and higher serial communication throughput.
Technical Profile — IC200CPU005-CE
Family
VersaMax PLC CPU
Revision
CPU005-CE
Firmware
2.34
Memory
128 KB configurable
Serial Port 1
RS-232
Serial Port 2
RS-485
Modules
Up to 64
I/O Points
Up to 2,048
Boolean Execution
0.8 ms/K typical
RTC Accuracy
100 ppm typical full-range specification
Storage
System Flash + battery-backed RAM
Dimensions
106.7 × 128 × 69.1 mm
SYSTEM SELECTION
Where CPU005-CE Sits in the VersaMax / RX3i Landscape
Controller
Platform
Memory / Scale
Communication Focus
Best Selection Logic
IC200CPU005-CE
VersaMax
128 KB / up to 64 modules
RS-232 + RS-485
Compact modular control with serial connectivity
IC695CPE305
PACSystems RX3i
5 MB class
RX3i Ethernet + serial architecture
Larger RX3i programs and modernization projects
IC695CPE310
PACSystems RX3i
10 MB
Ethernet + RS-232 + RS-485
Higher processing and larger control applications
IC695CPE330
PACSystems RX3i
64 MB
Multi-Ethernet + USB + CFast
High-memory, network-intensive RX3i systems
Selection point: IC200CPU005-CE is not simply a smaller version of an RX3i CPU. Its value is the compact VersaMax architecture, dual serial interfaces and 128 KB configurable memory. For an existing VersaMax installation, retaining the correct CPU005 revision can be more practical than moving to a substantially different RX3i architecture.
AMIKON STOCK / READY FOR INDUSTRIAL DEMAND
A visual story of people, inspection and warehouse capability
Amikon's large stock is the core of our supply.
More than 400,000 electronic products — PLC, HMI, drives, servo, CNC, IPC and PG.
New or out of production. From a single module to complete configurations. Strategic purchasing helps reduce production waiting time.
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world. If an item is temporarily unavailable, our preferred supplier network can be searched for an alternative supply path. This means your production can start and run immediately — reducing production stagnation and avoidable capital loss.
Please contact us within 7 days after receiving the item if a problem occurs. Returned items should remain in their original condition and the specific return reason should be provided. A return or replacement can be arranged after the returned item is received and checked. Shipping expenses caused by the return are the buyer's responsibility.
BUYER DECISION POINTS
IC200CPU005-CE — FAQ
Q1. Can IC200CPU005-CE be selected when a project specifically requires the 128 KB CPU005 memory level?
Yes. The CE revision is the 128 KB configurable-memory CPU005 revision. This is an important distinction when replacing an earlier CPU005 version that used a smaller configurable-memory level.
Q2. Why does IC200CPU005-CE make sense for a legacy VersaMax serial-control installation?
The CPU has both RS-232 and RS-485 interfaces and supports SNP slave and RTU slave communication. The CE revision also supports 32-bit Modbus register data, making the exact revision relevant when serial communication behavior matters.
Q3. What system size is IC200CPU005-CE intended to control?
The CPU005 family is designed to act as the controller for up to 64 modules and up to 2,048 I/O points. Actual system configuration still depends on the selected VersaMax modules and power architecture.
Q4. Does IC200CPU005-CE offer a meaningful advantage over an earlier CPU005 revision?
For applications requiring the CE feature set, yes. The 2.34 firmware revision combines 128 KB configurable memory with 32-bit Modbus register support, an updated PID function block and higher serial communication throughput.
Q5. What should be checked before replacing an installed IC200CPU005 with IC200CPU005-CE?
Confirm the complete CPU designation, firmware-dependent application requirements, memory allocation, both serial-port settings, installed I/O topology and backup status before controlled restart. The replacement should match the existing VersaMax architecture rather than only the base CPU number.
