GE FANUC · SERIES 90-30 · DISCRETE OUTPUT

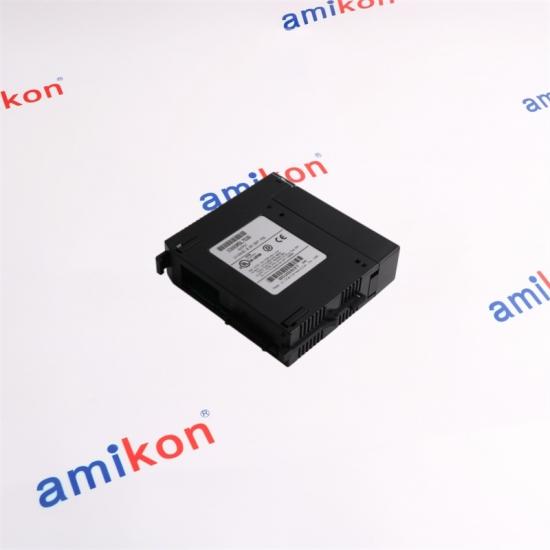

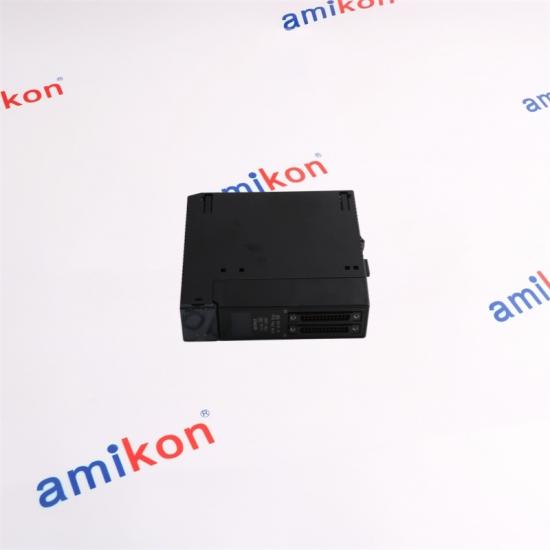

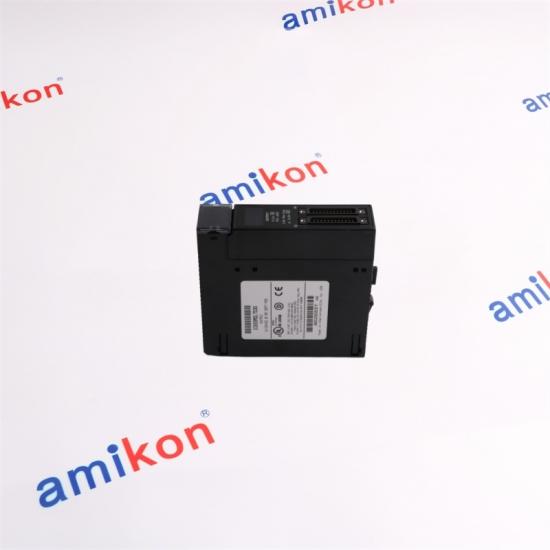

IC693MDL753H
The GE Fanuc IC693MDL753H is a Series 90-30 discrete DC output module designed for high-density machine control. It provides 32 positive-logic output points arranged as four isolated groups of eight, supporting 12 to 24 VDC field loads with up to 0.5 A available at each output point. Its grouped architecture, optical isolation and individual point indication make the module suitable for distributed actuator, relay, solenoid, indicator and other DC load control within a Series 90-30 PLC installation. |
MODULE PROFILE
32-Point DC Output
Logic: Positive logic
Nominal load: 12/24 VDC
Point rating: 0.5 A
Groups: 4 × 8 points
Isolation: Optical
|
|
32
Discrete outputs
|
0.5 A
Maximum per point
|
4 A
Maximum per group
|
2 × 24
Field connectors
|
|
Four Independent Output Groups
The 32 outputs are organized as four groups of eight points. Each group has its own common connection, allowing separate DC load groupings while retaining the compact Series 90-30 form factor. |
Positive-Logic Switching
The module sources current to connected DC loads. The rated output voltage range is 10.2 to 28.8 VDC, corresponding to the 12/24 VDC nominal operating range. |
|
|
Protection & Switching Characteristics
The module specifies a maximum 5.4 A inrush current for 10 ms, a maximum 0.3 VDC on-state voltage drop and maximum 0.1 mA off-state leakage current. |
Isolation & Indication
Optical coupling separates field-side circuits from the PLC logic side. Individual status LEDs provide point-level visual indication during commissioning and service. |
|
CPU / Backplane
The controller determines output states and transfers them through the Series 90-30 backplane to the I/O module. |
→ |
IC693MDL753H
32 positive-logic DC outputs grouped as four banks of eight. |
→ |
Field Loads
The switched outputs can drive compatible DC actuators, indicators, relays and solenoid-type loads within the electrical limits. |
|
AMIKON GLOBAL INDUSTRIAL SUPPLY
Sustainable Supply.
Faster Industrial Continuity. At AMIKON, our mission is to advance sustainable and efficient global industrial supply chains. Millions of industrial parts • Fast delivery • Attentive customer service
A global inventory partner for hard-to-find, new and discontinued industrial parts, equipment and machinery.
|
| Sales Manager: Miya Zheng Email: sales@amikon.cn Phone / WhatsApp: +86 180 2077 6792 |
EMAIL SALES WHATSAPP |
IC693MDL753H provides 32 discrete DC outputs in four groups of eight, so it is suited to applications where point density and grouped field wiring are important. Replacement suitability still depends on the existing slot configuration, load voltage, current and wiring arrangement.
Each point is rated up to 0.5 A, while the group limit is 4 A and the common-pin limit is 3 A. The actual load combination must therefore be checked at both the individual-point and group/common levels.
Yes, the 32 points are divided into four groups of eight with separate commons. This grouping allows field loads to be organized by functional or power-distribution section rather than treating all 32 points as one common group.
Confirm the actuator voltage falls within the 10.2–28.8 VDC output range, the steady-state current remains within 0.5 A per point, and the combined group/common loading remains within the stated limits. Inrush behavior should also be considered for inductive or high-start-current loads.
IC693MDL753H is the discrete output side and sends switching commands to field loads. IC693MDL655H is the discrete input side and accepts field signals into the PLC. They serve opposite directions of the same control architecture and should not be treated as direct substitutes.
Please contact us within 7 days after receiving the item if a problem occurs. Returned items should remain in their original condition and include the specific reason for return. After the return is received, a return or replacement can be arranged. Shipping costs arising from the return are the buyer’s responsibility.
