| GE FIELD CONTROL · GENIUS NETWORK | AMIKON INDUSTRIAL AUTOMATION |
|
REMOTE I/O COMMUNICATION

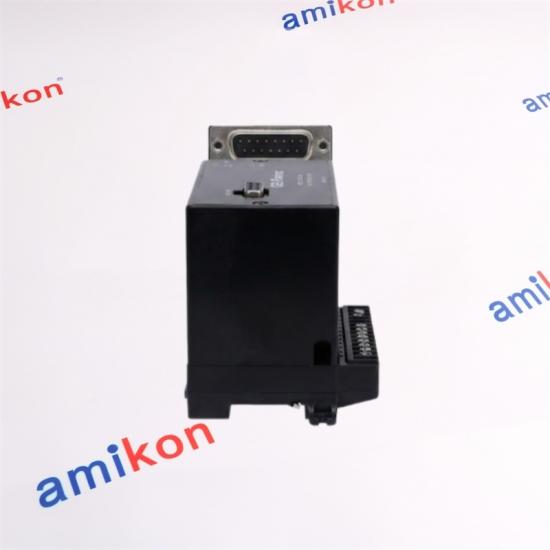

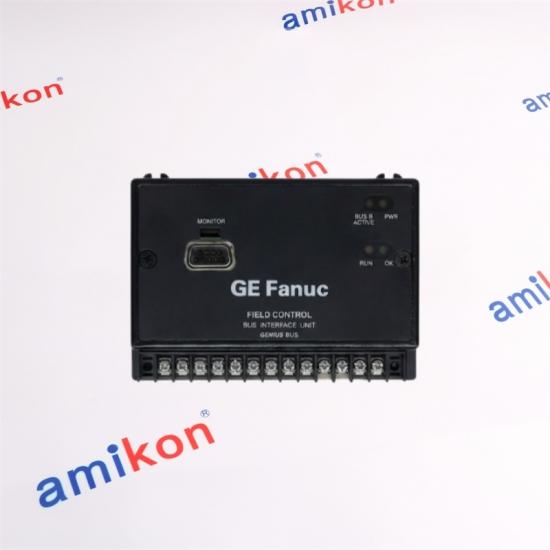

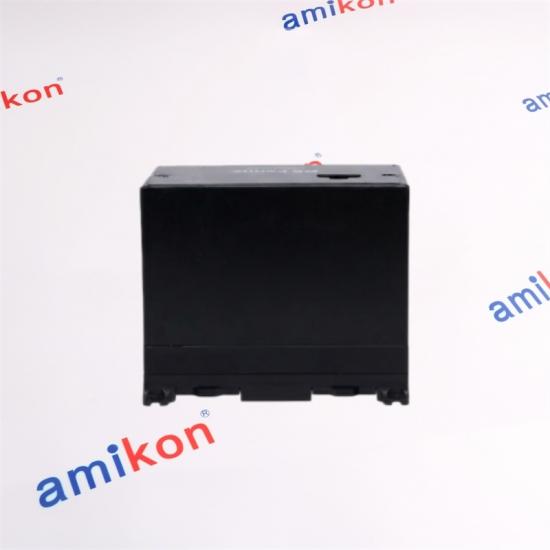

IC670GBI001
Genius Bus Interface Unit
|
QUICK PROFILE
FAMILY
Field Control
NETWORK
Genius Bus
INPUT DATA
Up to 128 Bytes
OUTPUT DATA
Up to 128 Bytes
|
|
◎
REMOTE DROP
|
◇
MIXED I/O
|
◉
DIAGNOSTICS
|
↔
GENIUS LINK
|
|
PRODUCT OVERVIEW
The Communication Core of a Field Control Station
|
IC670GBI001 serves as the Genius communication interface for a Field Control remote station. Together with the Field Control I/O modules connected to it, the station operates as a remote drop on the Genius bus.
The remote station can contain a mix of discrete and analog Field Control input and output modules. The BIU manages the operating exchange between those modules and the host system while supporting station-level diagnostics. A complete Field Control remote drop can exchange up to 128 bytes of input data and 128 bytes of output data. |
|
CONTROL
Host Controller
|
→
|
NETWORK
Genius Bus
|
→
|
INTERFACE
IC670GBI001
|
→
|
FIELD
Field Control I/O
|
|
IDENTITY
Part NumberIC670GBI001
Product FamilyField Control
FunctionGenius Bus Interface Unit
Station RoleRemote Genius Drop
|
I/O & DATA
Supported I/ODiscrete & Analog
Input DataUp to 128 Bytes
Output DataUp to 128 Bytes
NetworkGenius Serial Bus
|
|
GENIUS COMMUNICATION RATES
|
STATION SETTINGS
◆ Genius device address
◆ Communication rate ◆ Fault reporting ◆ Dual-bus behavior ◆ CPU redundancy mode ◆ Configuration protection |
| 1 | BIU Condition | The interface checks its own operating condition. |
| 2 | Attached I/O | The station monitors the Field Control I/O modules connected to the BIU. |
| 3 | Fault Reporting | When enabled, diagnostic conditions can be passed through the control architecture for maintenance response. |
|
NORMAL
I/O Exchange
Remote field values and commands are exchanged with the host.
|
→ |
FAULT
Communication Loss
The remote station may stop exchanging I/O correctly.
|
→ |
IMPACT
Signal Path Interrupted
Input values may not reach control logic and commands may not reach the remote outputs.
|
→ |
RISK
Production Downtime
Interlocks or loss of automatic operation may interrupt production.
|
|
WHY BUY THIS BIU?
What advantages does IC670GBI001 offer in an existing Field Control station?
|
IC670GBI001 keeps the remote station on the Genius network while supporting both discrete and analog Field Control I/O. A complete station can exchange up to 128 bytes in each direction. Diagnostic functions also help maintenance personnel distinguish interface conditions from attached-I/O problems. |
|
MODEL COMPARISON
How does IC670GBI001 differ from later Field Control Genius BIUs?
|
Later Field Control Genius BIUs perform the same general network-interface role, but another BIU part number should not be assumed to be electrically and mechanically identical. Power arrangement, terminal hardware, revision level, network settings, redundancy method and attached I/O should be checked before changing BIU versions. |
|
REPLACEMENT CHECK
Can another Genius BIU be used as a direct replacement for IC670GBI001?
|
A direct drop-in substitution should not be assumed. Verify the power and terminal arrangement, Genius address, communication rate, redundancy settings, attached Field Control modules and the existing station configuration. Matching the installed arrangement reduces recommissioning risk. |
|
I/O COMPATIBILITY
What should be checked when matching Field Control I/O with IC670GBI001?
|
A remote station can contain a mix of Field Control discrete and analog input and output modules. Evaluate the complete station rather than the BIU alone, including the exact I/O modules, terminal hardware and total data usage within the 128-byte input and 128-byte output limits. |
|
BEFORE ORDERING
What should I provide when buying IC670GBI001 for an urgent shutdown?
|
Confirm the complete installed part number and revision, Genius communication rate and device address, terminal arrangement, redundancy requirements and attached Field Control I/O. Providing the machine or system name also helps reduce the risk of a mismatched replacement. |
|
