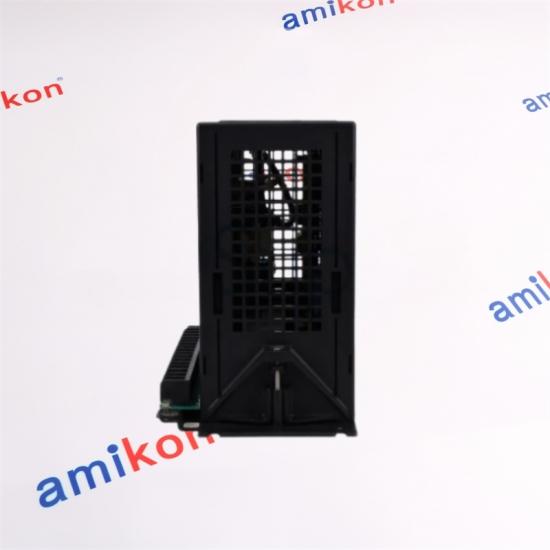

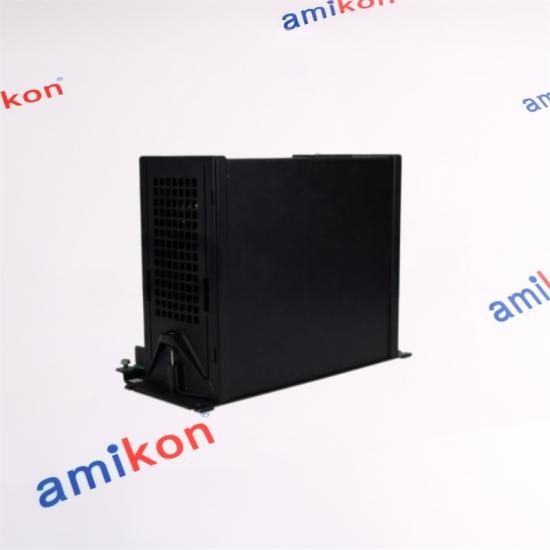

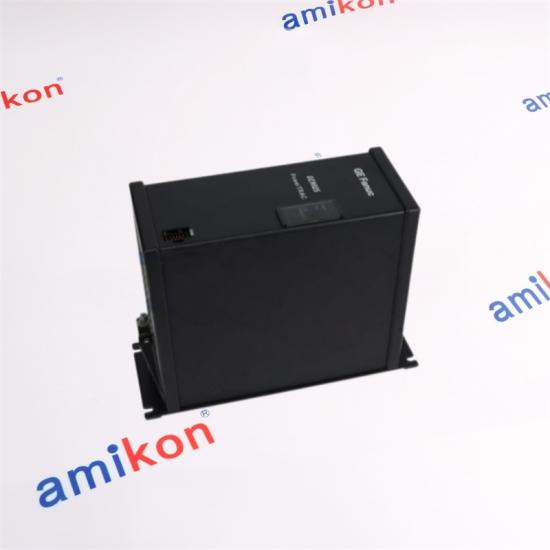

GE IC660BPM100 Power Monitoring Block

Voltage and current RMS values remain available for electrical condition monitoring.

Configured overcurrent events can trigger waveform capture for transient analysis.

Active power, reactive power, power factor, energy and frequency are calculated.

Where IC660BPM100 Fits

The block is suited to electrical distribution and process equipment where voltage, current, energy and power-condition data must be available to the control system.

It can operate on single-phase or three-phase systems using delta or wye connections and can accept potential-transformer and current-transformer signals for electrical monitoring.

In a running installation, an unexpected loss of power data, abnormal current, incorrect power-factor readings or a communication fault can lead maintenance teams to investigate the monitoring block, its field wiring, CT/PT connections or the Genius bus path.

When Monitoring Data Disappears

Loss of reliable electrical measurements can reduce visibility into loading, energy consumption and abnormal current conditions. In a process where power monitoring supports operating decisions, an unavailable block can therefore increase diagnostic time and delay troubleshooting.

Genius PowerTRAC block associated with 24/48 VDC power-system applications.

A later PowerTRAC version associated with the 115–230 VAC / 125 VDC class.

Automation Parts, Connected Worldwide

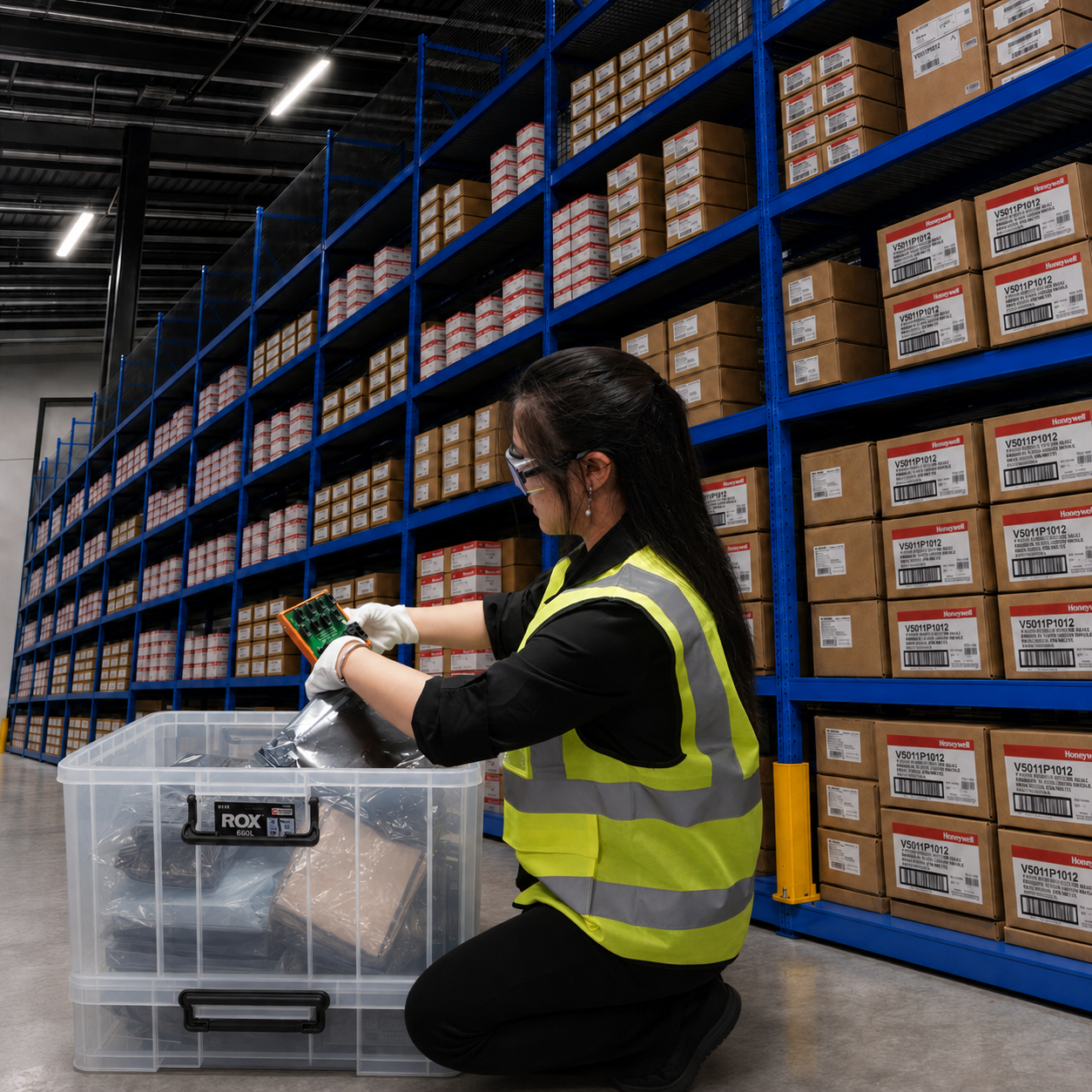

A global automation supply team focused on difficult-to-source industrial parts, international communication and practical order coordination.

The replacement should match the existing block number, PT/CT arrangement, power-supply class and Genius bus configuration. The field wiring and configured transformer ratios are especially important because they determine how the electrical values are interpreted.

Yes. The Power Monitoring Block supports both delta and wye three-phase arrangements and can also be used with single-phase power systems. PT connection type is configurable.

The block can detect a configured overcurrent transient and retain waveform samples around the event. When abnormal current behavior needs to be investigated, the block becomes relevant because its stored data can support transient analysis.

It calculates RMS voltage and current, active power, reactive power, power factor, energy and frequency. Additional calculated values include fundamental and harmonic-related quantities, allowing maintenance teams to compare electrical conditions rather than relying on a single measurement.

Please provide the exact Part Number, Quantity, Destination, Required Date and Machine/System. If available, adding the existing Genius configuration and PT/CT arrangement can make replacement checking more precise.
