GE GENIUS I/O

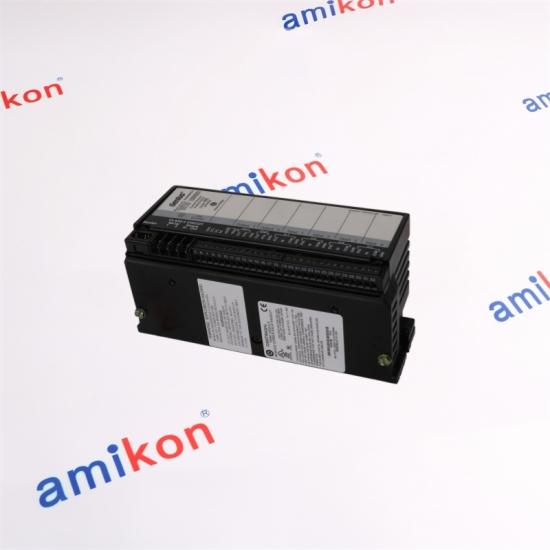

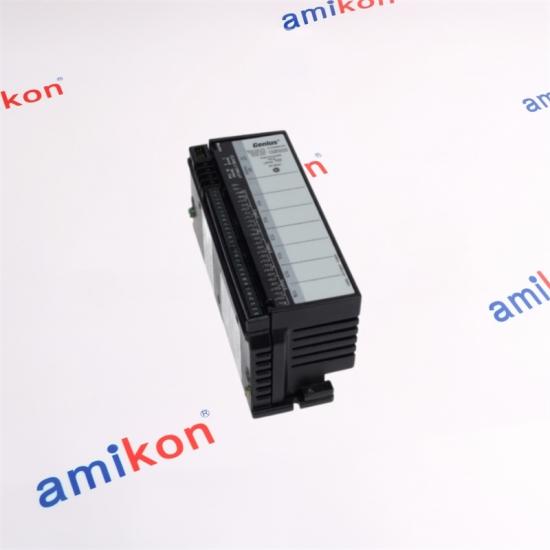

IC660BBA023
24/48 VDC Thermocouple Input Block
Six-channel thermocouple acquisition for GENIUS I/O architectures, with three isolated input groups and built-in diagnostics for temperature signal integrity.
|
|
INPUT ARCHITECTURE
3 × 2 Isolated Groups
|
THERMOCOUPLE TYPES
J / K / T / E / B / R / S / N
|
OPERATING VOLTAGE
18–56 VDC
|
MAX. HEAT DISSIPATION
9 W
|
|
01 / Technical Profile
Engineering Parameters
|
|
|
|
SIGNAL STRUCTURE
Three Isolated Zones
The six thermocouple channels are arranged as three isolated pairs, making the group architecture an important engineering checkpoint when reviewing an existing installation.
|
01
Channels 1–2
ISOLATED PAIR
|
02
Channels 3–4
ISOLATED PAIR
|
03
Channels 5–6
ISOLATED PAIR
|
|
02 / Engineering Use
Where Replacement Decisions Matter
|
|
PROCESS TEMPERATURE
Continuous Thermal Monitoring
The six thermocouple channels suit temperature acquisition within a GENIUS I/O architecture where multiple process points must be brought into the control system.
|
FAULT INVESTIGATION
Signal Integrity Checks
Open-wire, overrange, underrange, high-alarm, low-alarm and internal-fault diagnostics can help engineers distinguish a channel problem from a wider control-system issue.
|
DOWNTIME EXPOSURE
Temperature Data Loss
A failed temperature input block can interrupt reliable process-temperature acquisition and may force operators to restrict or stop affected equipment until the signal path is restored.
|
|
BEFORE REPLACEMENT
Four Checks for Engineers
|
SYSTEM MATCH
Do Not Substitute by Voltage Alone
IC660BBA023 belongs to the 24/48 VDC thermocouple-input group. Similar-looking GENIUS blocks can have different sensing functions or power classes, so the catalog number and signal type should be checked together.
KEY DISTINCTION
Thermocouple input ≠ RTD input ≠ current-source I/O
|
|
03 / Selection Questions
IC660BBA023 Engineering FAQ
|
|
01
|
When should an engineer choose IC660BBA023 instead of the nearby IC660BBA021?
The decisive point is the sensing technology: IC660BBA023 is the 24/48 VDC thermocouple-input block, while IC660BBA021 is the corresponding 24/48 VDC RTD-input block. The existing field sensor type should therefore be verified before selecting a replacement.
|
|
02
|
What makes IC660BBA023 different from IC660BBA103 when the application also uses thermocouples?
Both are six-channel thermocouple blocks, but their power classes differ. IC660BBA023 is the 24/48 VDC version, whereas IC660BBA103 is the 115 VAC/125 VDC version. For replacement purchasing, matching the installed power architecture is critical.
|
|
03
|
If only one temperature channel is abnormal, why would procurement replace the complete IC660BBA023?
The block performs channel-level diagnostics, so a single abnormal channel does not automatically prove that the complete block has failed. However, if the electronics or internal diagnostics are implicated, replacing the block can be the practical restoration path when process downtime is costly. Engineers should isolate the field sensor, wiring and channel behavior before final replacement approval.
|
|
04
|
Why does the 3-group isolation matter when replacing an existing temperature block?
The six inputs are arranged as three isolated groups of two, with 300 V group-to-group isolation. This architecture can matter where field circuits have different electrical potentials or where signal separation is part of the existing control design. A replacement should preserve the installed electrical architecture rather than matching channel count alone.
|
|
05
|
Which revision details should a buyer confirm before ordering a replacement IC660BBA023?
Confirm the complete catalog number and any revision suffix shown on the installed unit. Terminal-assembly and housing revision details can affect a replacement decision, so procurement should provide the exact part marking or installed-unit details when requesting a quotation.
|
|
