GE ENERGY · CHARGER OUTPUT BOARD
151X1225EK01PC03
151X Series · Charger Output Board
FUNCTIONAL POSITION
Charger Output Board

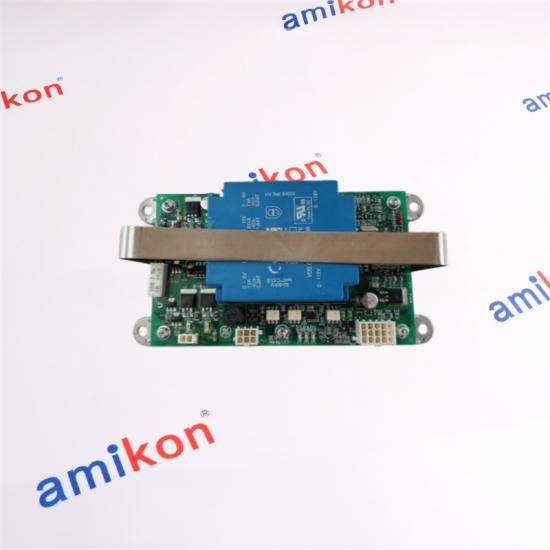

The 151X1225EK01PC03 is listed as a GE Energy 151X-series Charger Output Board. GE system material also places this module in the battery-charging arrangement for the 20 Nm application.
MANUFACTURER
GE Energy
SERIES
151X Boards and Modules
FUNCTION
Charger Output Board
REVISION
Rev 7
MOUNTING
4 drilled holes
CONNECTIONS
3 plugs
CERTIFICATION
CE Listed
OUTPUT RATING
12 VDC / 2 A
Technical Configuration
Physical and electrical checkpoints for replacement planning
01
BOARD FUNCTION
Charger Output Board
02
OUTPUT
12 VDC at 2 A
03
CONNECTOR GROUP
Three plugs, designated PL1 through PL3.
04
MECHANICAL FIT

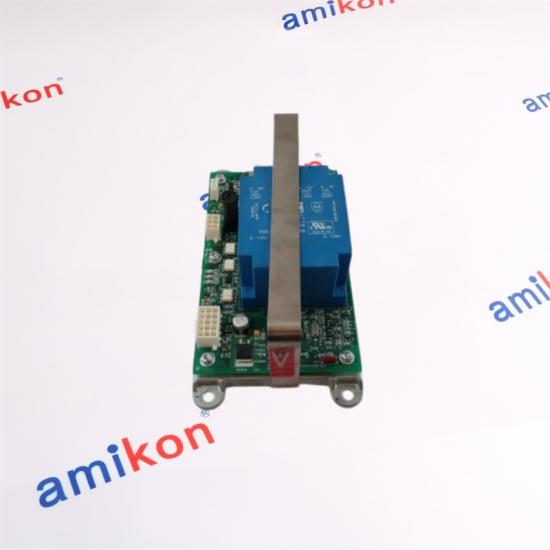

Four drilled mounting holes on the metal backplane.
Replacement Matching Point
Match the complete 151X1225EK01PC03 part number together with the physical mounting arrangement, connector arrangement and required electrical rating. A shared 151X family prefix alone does not establish interchangeability between different assemblies.
151X FAMILY
Same-Series Comparison
PRIMARY PART
151X1225EK01PC03
Charger Output Board
Listed with a 12 VDC / 2 A output rating, three plugs and four drilled mounting holes.
RELATED PART
151X1225EK01PC04
Battery Charger Assembly
The PC04 is separately listed as a Battery Charger Assembly, so its complete part number should be matched independently.
FAMILY EXTENSION
151X1233DD01SA02
Pitch Battery Charger Board
A separate 151X charger-board part number with a different functional designation.
Family Advantage
The 151X family contains multiple power, converter, charger and related assemblies. For purchasing, the advantage of staying within the correct family is that the functional relationship can be checked against the complete part number rather than relying only on a broad GE product category.
Part Number | Quantity | Destination | Required Date | Machine / System
PURCHASE & REPLACEMENT
151X1225EK01PC03 FAQ
01
Is 151X1225EK01PC03 the correct charger module for the GE 20 Nm battery system?
GE system material associates 151X1225EK01PC03 with the battery charger used for the 20 Nm application. The complete part number should still be matched against the installed equipment before purchasing.
02
Can 151X1225EK01PC03 and 151X1225EK01PC04 be treated as interchangeable replacements?
They should not be assumed interchangeable. 151X1225EK01PC03 is listed as a Charger Output Board, while 151X1225EK01PC04 is separately listed as a Battery Charger Assembly. The complete installed part number should determine the replacement.
03
What physical details should be matched when ordering 151X1225EK01PC03 as a replacement?

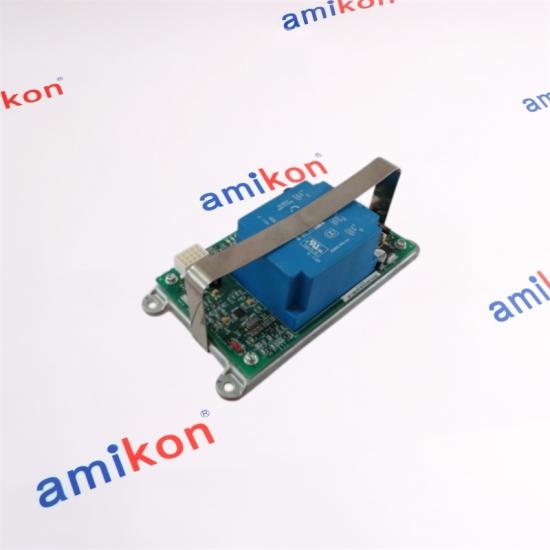

The listed PC03 configuration includes four drilled mounting holes, a metal backplane and three plugs designated PL1 through PL3. These physical characteristics are useful checkpoints when comparing a replacement with the installed board.
04
Does the 151X1225EK01PC03 output rating matter when selecting a replacement?
Yes. The technical listing gives the 151X1225EK01PC03 an output rating of 12 VDC at 2 A. This rating should be checked against the installed configuration rather than assuming that another 151X charger board has the same electrical characteristics.
05
Why should the Rev 7 configuration of 151X1225EK01PC03 be checked before a replacement order?
The listed 151X1225EK01PC03 configuration is Rev 7. Because the board also has a defined connector and mounting arrangement, matching the exact part number and physical configuration helps avoid substituting a different 151X assembly simply because its family prefix appears similar.
