Sleeve Thread |
M10x1 |
|
Armored Cable |
Yes |
|
Model No. |
PR6423/010-140 CON021 |
|
Case Thread |
25mm |
|
Cable Length |
10.0m |
|
Cable End |
Lemo |
² Our goods
l Our parts are more diverse.
l We continue to innovate and strive to improve the world's automation parts supply level.
l No matter where the customer is or how difficult it is to find parts, we hope to connect customers all over the world through parts.
l Our business scope is wide, and we can provide all kinds of parts for customers around the world.
|
551,867 spare parts in stock have been supplied |
|
Choose 128 manufacturers |
|
Adequate spare parts inventory |
Sales manager: Miya
Email: sales@amikon.cn
Whatsapp/phone: +86 18020776792
² Descripution

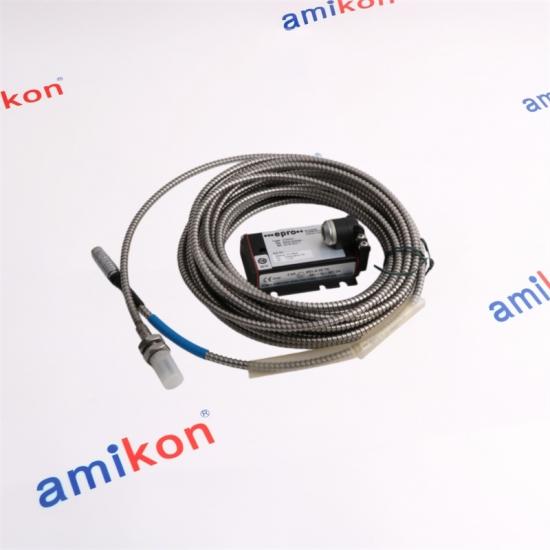

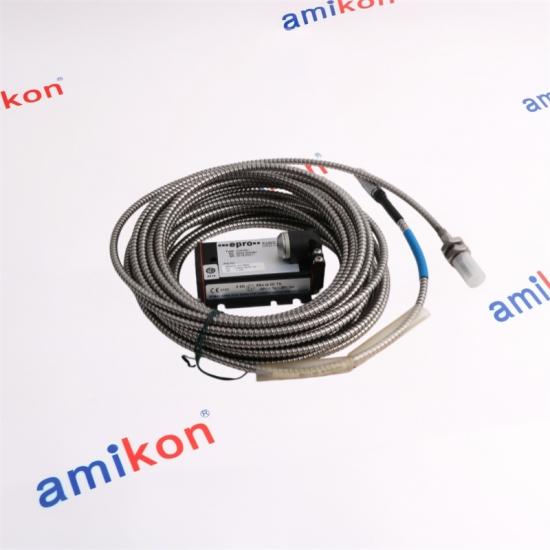

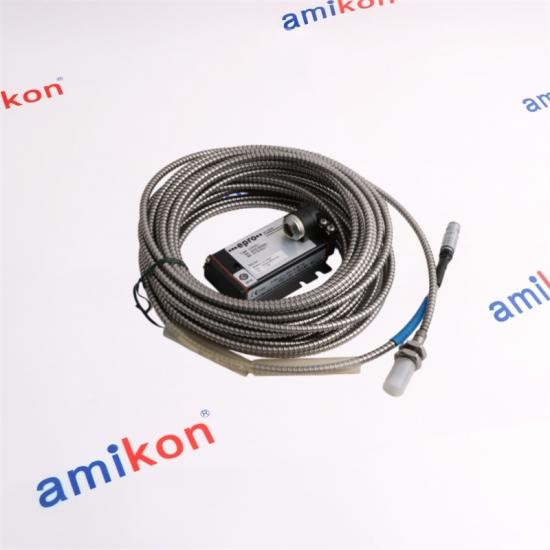

EPRO PR6423/010-140 CON021 is a high-precision eddy current sensor system consisting of a PR6423 displacement probe and a CON021 signal converter. Designed for non-contact measurement of shaft vibration, axial displacement, eccentricity, and position, it provides reliable condition monitoring and machinery protection for turbines, compressors, pumps, gearboxes, and other critical rotating equipment.
|
PR6423 Eddy Current Sensor |
|
|
Tip Diameter |
8.0 mm |
|
Measurement Range |
±1.0 mm Position; 0 to 500 μm PP Vibration |
|
Frequency Range |
0 to 20 kHz |
|
Sensitivity |
8 V/mm (203.2 mV/mil) ±1.0% |
|
Sensor Body Thread Options |
M10x1 or 3/8-24 UNF-2A |
|
Temperature Range |
-35 to 180°C (-31 to 250°F) |
|
Offers ideal vibration and position measurements in medium shafts (≥25mm or 0.984”). Can be used as a tachometer for rotational speed measurements |
|
|
CON021 Converter |
|
|
Maximum Output Range |
-4 to -20V |
|
Reference Voltage |
-12V |
|
Connector Arrangement |
Lemo |
|
Frequency Range |
0 to 20 kHz |
|
Rise Time |
<15 μs |
|
Sealing |
IP20 |
|
Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Designed to be panel mounted in an enclosure. Works with all Emerson eddy current sensors. |
|
² FAQ
Question 1: How does the PR6423/010-140 CON021 deliver high-fidelity shaft displacement measurements in demanding turbomachinery monitoring environments?
Answer: The PR6423/010-140 CON021 employs advanced eddy current sensing technology to provide precise, non-contact displacement measurement with outstanding linearity, enabling accurate monitoring of shaft movement in high-speed rotating equipment.
Question 2: What design attributes enable the PR6423/010-140 CON021 to maintain measurement stability under severe vibration and thermal fluctuations?
Answer: The PR6423/010-140 CON021 features a robust sensor construction and optimized signal conditioning electronics that ensure reliable performance, even when exposed to continuous vibration, temperature variations, and challenging industrial operating conditions.
Question 3: Why is the PR6423/010-140 CON021 particularly advantageous for integration into machinery protection and condition monitoring architectures?
Answer: The PR6423/010-140 CON021 provides real-time displacement and vibration data with exceptional accuracy, supporting machinery protection systems in detecting abnormal operating conditions before they escalate into critical failures.
Question 4: How does the PR6423/010-140 CON021 mitigate electromagnetic interference to preserve signal integrity in electrically intensive facilities?
Answer: The PR6423/010-140 CON021 incorporates sophisticated shielding techniques and precision converter technology, minimizing the impact of electromagnetic disturbances and ensuring dependable measurement outputs.
Question 5: What predictive diagnostics capabilities can be enhanced through the deployment of the PR6423/010-140 CON021 in rotating equipment applications?
Answer: The PR6423/010-140 CON021 enables continuous monitoring of shaft dynamics, allowing maintenance teams to identify early-stage wear, imbalance, misalignment, and other developing faults, thereby improving equipment reliability and reducing unplanned downtime.
