EPRO PR6423/004-120-CN CON021 Eddy Current Measurement System

EPRO PR6423/004-120-CN CON021 Eddy Current Measurement System

Product Description

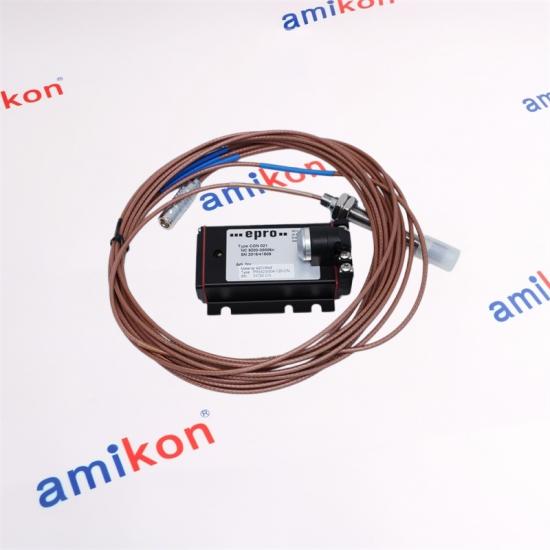

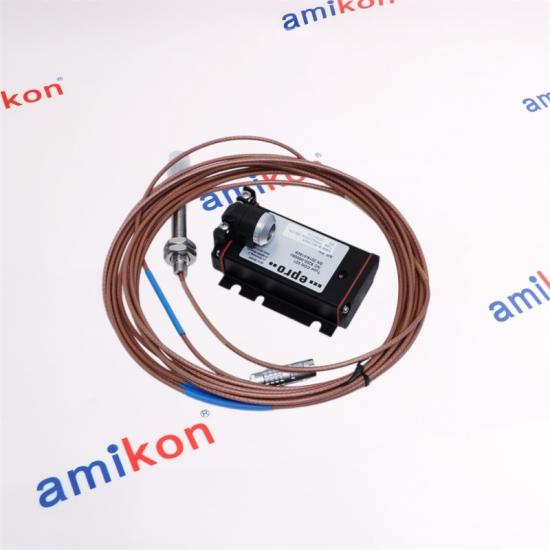

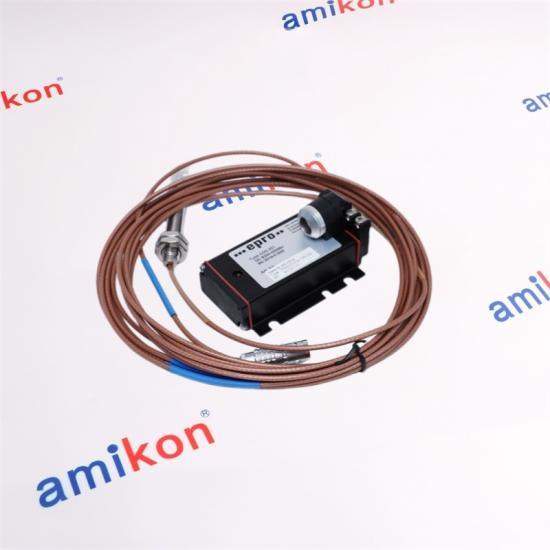

The EPRO PR6423/004-120-CN CON021 is a displacement measurement system designed for industrial rotating equipment where precise shaft movement information is required for operational assessment and equipment monitoring. The assembly combines a PR6423 proximity probe with a CON021 signal converter, forming a complete sensing solution capable of delivering reliable displacement signals under demanding operating conditions.

Product Features

² Built for Continuous Industrial Service

Designed for equipment that operates around the clock, providing uninterrupted measurement data throughout varying operating conditions.

² Accurate Gap Detection

Capable of detecting small changes in the distance between the probe and target surface, allowing operators to monitor shaft movement with confidence.

² Robust Mechanical Construction

The probe housing is manufactured from corrosion-resistant materials suitable for installation in harsh industrial environments.

² Stable Signal Output

The CON021 converter ensures reliable signal transmission for monitoring systems, helping maintain consistent measurement quality.

² Flexible Installation Possibilities

Suitable for integration into new machinery projects as well as retrofit upgrades on existing equipment.

² Low Maintenance Requirements

The non-contact operating principle minimizes wear-related issues and reduces maintenance demands over the product lifecycle.

² Suitable for Long-Term Monitoring Programs

Frequently applied in facilities that rely on trend analysis and machine performance evaluation to support maintenance planning.

Technical specifications

Typical Applications

² Steam Turbine Systems

Used to observe shaft movement characteristics during startup, load changes, and continuous operation.

² Compressor Installations

Provides displacement information for centrifugal and axial compressors operating in process industries.

² Generator Monitoring

Supports condition evaluation of generator shafts and associated rotating assemblies.

² Process Pumps

Applied on pumps where reliable operation is essential for maintaining production continuity.

² Industrial Motors

Helps maintenance personnel evaluate operating behavior and mechanical stability.

² Fan and Blower Systems

Suitable for monitoring rotating assemblies in ventilation and air-handling applications.

Why Many Plants Use Displacement Sensors

While vibration monitoring remains important, displacement measurement offers a different perspective on machine condition. By observing shaft movement directly, operators gain additional information regarding:

² Rotor positioning

² Shaft stability

² Mechanical alignment conditions

² Bearing operating characteristics

² Thermal movement effects

² Dynamic operating behavior

This information can be useful when evaluating machine performance, investigating abnormal operating conditions, or planning maintenance activities.

FAQ

Q:What is the function of the PR6423/004-120-CN CON021?

A:The system measures shaft displacement and relative shaft movement in rotating machinery using eddy current sensing technology.

Q:Does the sensor require physical contact with the shaft?

No. The measurement is performed without contact, allowing the system to operate without causing wear to the monitored surface.

Q:Which industries commonly use this model?

A:The sensor is frequently found in power generation, petrochemical, oil and gas, manufacturing, mining, marine, and other industries utilizing critical rotating equipment.

Q:Can the sensor be installed on existing machinery?

A:Yes. The compact probe design allows installation on both new equipment and retrofit projects, depending on mounting requirements.

Q:What makes displacement monitoring valuable?

A:Displacement data provides direct information about shaft movement, which can help engineers understand equipment operating characteristics and mechanical condition.
