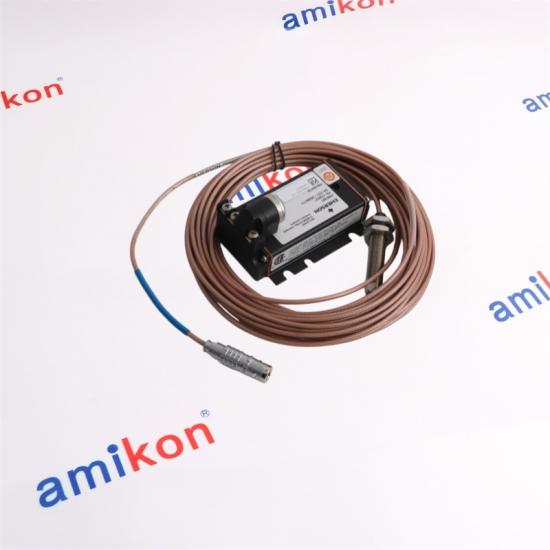

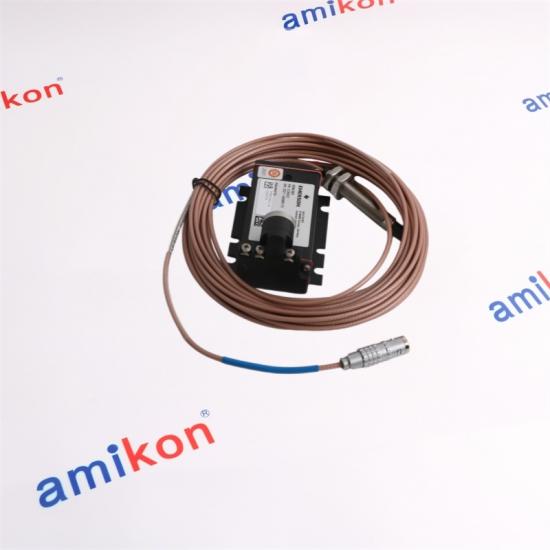

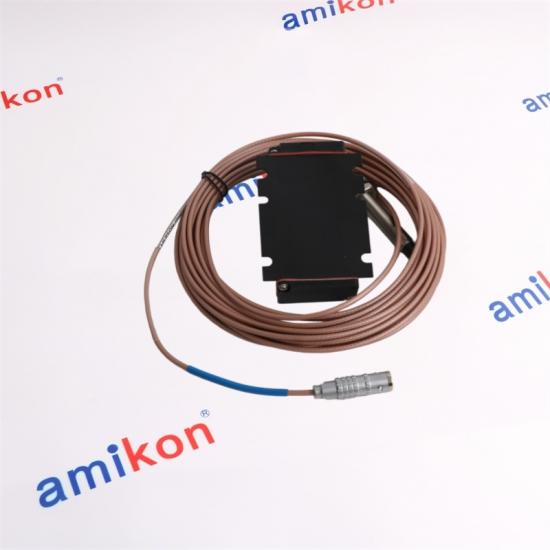

EPRO PR6423/003-130 CON021 Eddy Current Sensor

PR6423 Eddy Current Sensor

Tip Diameter

8.0 mm

Measurement Range

±1.0 mm Position; 0 to 500 μm PP Vibration

Frequency Range

0 to 20 kHz

Sensitivity

8 V/mm (203.2 mV/mil) ±1.0%

Sensor Body Thread Options

M10x1 or 3/8-24 UNF-2A

Temperature Range

-35 to 180°C (-31 to 250°F)

Offers ideal vibration and position measurements in medium shafts (≥25mm or 0.984”). Can be used as a tachometer for rotational speed measurements

CON021 Converter

Maximum Output Range

-4 to -20V

Reference Voltage

-12V

Connector Arrangement

Lemo

Frequency Range

0 to 20 kHz

Rise Time

<15 μs

Sealing

IP20

Temperature Range

-30 to 100°C (-22 to 212°F)

Designed to be panel mounted in an enclosure. Works with all Emerson eddy current sensors.

1. How does the PR6423/003-130 CON021 achieve sub-micron resolution in non-contact eddy current displacement measurement applications?

The PR6423/003-130 CON021 employs a high-frequency eddy current sensing architecture with optimized coil configuration, enabling ultra-precise, contactless measurement of shaft displacement with excellent resolution stability in dynamic industrial environments.

2. What linearity compensation mechanisms are implemented in the PR6423/003-130 CON021 to ensure measurement integrity across its calibrated range?

The PR6423/003-130 CON021 integrates factory-calibrated linearization profiles that minimize non-linearity and hysteresis effects, ensuring consistent proportional output behavior throughout its operational measurement span.

3. How does the PR6423/003-130 CON021 maintain signal stability under severe thermal cycling and mechanical vibration conditions?

The PR6423/003-130 CON021 is engineered with thermally resilient materials and mechanically reinforced sensor housing, allowing it to maintain signal fidelity under fluctuating temperatures and high-vibration turbomachinery environments.

4. What electromagnetic compatibility (EMC) design strategies are embedded in the PR6423/003-130 CON021 to suppress industrial noise interference?

The PR6423/003-130 CON021 features enhanced shielding topology and optimized coil winding structure, significantly reducing susceptibility to electromagnetic interference (EMI) and ensuring stable signal transmission in electrically dense environments.

5. How does the PR6423/003-130 CON021 enhance predictive maintenance capabilities when integrated into CON021-based monitoring systems?

When deployed with CON021 signal conditioning modules, the PR6423/003-130 CON021 delivers high-resolution vibration and axial displacement data, enabling early-stage anomaly detection and improving the reliability of rotating machinery condition monitoring systems.
