Product Details

EMERSON / EPRO
PR6424 / 006-030

PRODUCT CONFIGURATION CONTACT FAQ RECOMMENDED

MACHINERY PROTECTION / EDDY CURRENT TECHNOLOGY

PR6424/006-030

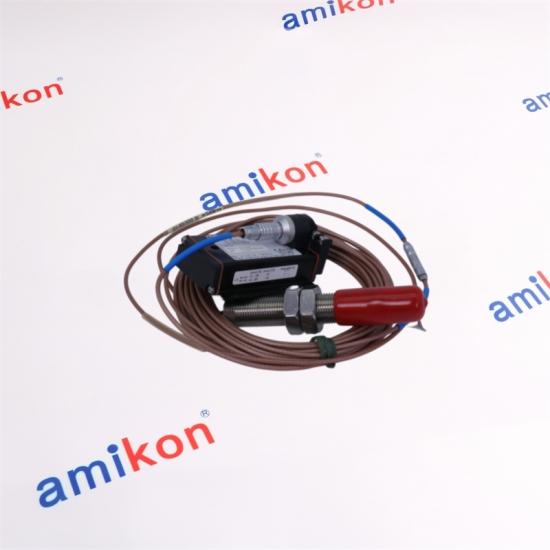

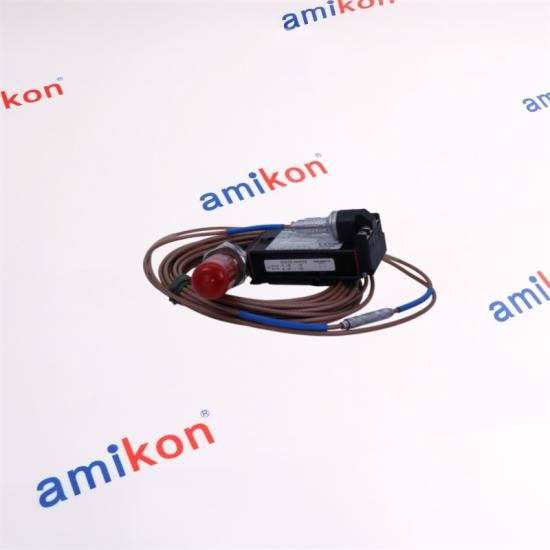

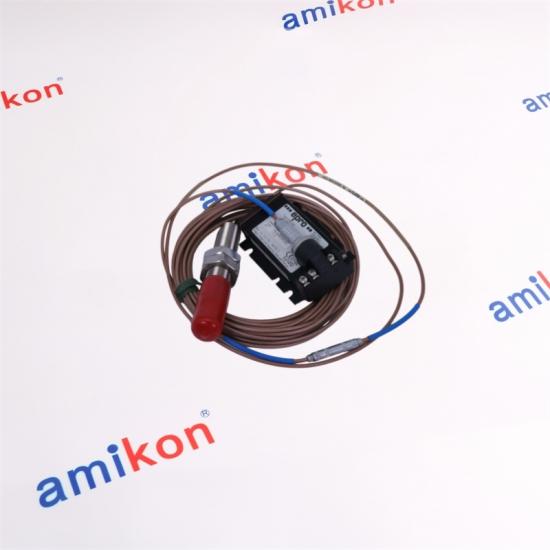

16 mm Eddy Current Sensor

The PR6424/006-030 is a 16 mm non-contact eddy current sensor configuration within the PR6424 family. It is intended for demanding turbomachinery measurements including radial and axial shaft dynamic displacement, shaft position, eccentricity and speed/key measurements.

The 16 mm sensing format is suited to applications involving larger rotating shafts, while the non-contact measurement principle allows the probe to monitor shaft movement without mechanical contact with the rotating target.

16 MM SENSOR FORMAT	4 V/mm SENSITIVITY
2.7 mm NOMINAL CENTER AIR GAP	8 m CABLE LENGTH

◈

APPLICATION FOCUS

Steam turbines · Gas turbines · Hydro turbines · Compressors · Pumps · Fans

01 / SENSOR PROFILE

Measurement Architecture

The PR6424 series uses an eddy current sensing principle for contactless measurement of conductive targets. The sensor is designed for rotating machinery where shaft displacement and position need to be monitored continuously.

The 16 mm probe format provides a focused measurement area suitable for larger shaft applications. The sensor can be used as part of a complete measurement chain with a compatible signal converter.

TARGET MATERIAL
Ferromagnetic steel / 42 Cr Mo4 standard

Sensitivity / Linearity	4 V/mm (101.6 mV/mil), ≤ ±1.5%
Nominal Center Air Gap	Approximately 2.7 mm (0.11 in)
Static Measurement Range	±2.0 mm (0.079 in)
Dynamic Measurement Range	0 to 1,000 μm (0 to 0.039 in)
Long-Term Drift	Less than 0.3%
Shaft Diameter	≥ 80 mm
Maximum Surface Speed	2,500 m/s (98,425 ips)
Operating Temperature	-35 to 150°C (-31 to 302°F)
Temperature Error	<4% / 100 K; API 670 compliant
Pressure Resistance	10,000 hPa (145 psi) at sensor head
Sensor Sleeve	Stainless steel
Cable Material	PTFE

02 / ORDER CONFIGURATION

Why the 006-030 Code Matters

The complete model code defines the mechanical and cable configuration of the PR6424 sensor. For PR6424/006-030, the ordering matrix specifies the corresponding thread, armor, sensor length, adaptor, cable length and cable termination.

CONFIGURATION SNAPSHOT

M18 × 1.5 · Without Armor · 100 mm · 8 m · LEMO

0	Sleeve Thread M18 × 1.5
0	Armored Cable Without armored cable
6	Total Sensor Length Code 100 mm sensor length; C = Cx + 12.5 mm
0	Adaptor Plug With adaptor plug
3	Total Cable Length Code 8 m
0	Cable End LEMO connector

03 / INDUSTRIAL ROLE

Built Around Contactless Shaft Measurement

◌ Radial Shaft Displacement Designed for monitoring radial movement on rotating machinery where shaft motion must be measured without physical contact.	◎ Axial Shaft Position Suitable for axial displacement and position measurement in critical rotating equipment.
⌁ Eccentricity The sensor architecture supports eccentricity measurement on appropriate machinery configurations.	◈ Speed / Key Measurement The PR6424 family is designed for speed/key measurement applications as part of suitable monitoring systems.

ENVIRONMENT

-35 to 150°C
Operating temperature

5 g @ 60 Hz
Shock and vibration rating

10,000 hPa
Sensor-head pressure resistance

~200 g
Sensor + 1 m cable, without armor

04 / PROCUREMENT DESK

Need PR6424/006-030?

Send the exact part number, required quantity, destination and required date. Our team can help check the requested configuration and arrange an inquiry.

EMAIL
sales@amikon.cn

PHONE
86-18020776792

SALES MANAGER
Miya zheng

05 / PURCHASE QUESTIONS

PR6424/006-030 FAQ

01 — How should PR6424/006-030 be matched to the signal converter?

The PR6424 sensor is part of a complete eddy-current measurement chain. The compatible converter must be selected according to the intended sensor configuration and required output. Emerson's CON converter family provides connections for PR6424 sensors, so the converter configuration should be checked before ordering a complete measurement system.

02 — Is PR6424/006-030 suitable for large rotating shafts?

Yes. The PR6424 is a 16 mm sensor intended for applications involving larger shafts. Emerson specifies a minimum shaft diameter of 80 mm for the PR6424 sensor specification, making target geometry an important consideration during replacement selection.

03 — What should be checked when replacing PR6424/006-030?

The replacement should match the complete configuration rather than only the PR6424 family name. Check the M18 × 1.5 thread, non-armored construction, 100 mm sensor length, adaptor configuration, 8 m cable and LEMO termination against the installed arrangement.

04 — Can PR6424/006-030 operate in elevated-temperature machinery?

The PR6424 specification gives an operating temperature range of -35 to 150°C. The actual installation should also account for the selected hazardous-area classification, converter arrangement and installation conditions.

05 — Does PR6424/006-030 provide enough range for shaft displacement monitoring?

The specified static range is ±2.0 mm, while the dynamic range is 0 to 1,000 μm. The nominal center air gap is approximately 2.7 mm. Installation geometry and the actual target surface should therefore be checked before commissioning.

ENGINEERING CHECK

For replacement orders, provide the complete installed part number whenever possible.
