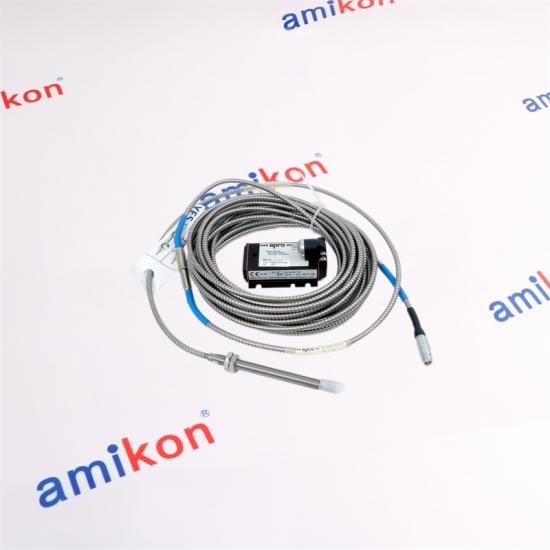

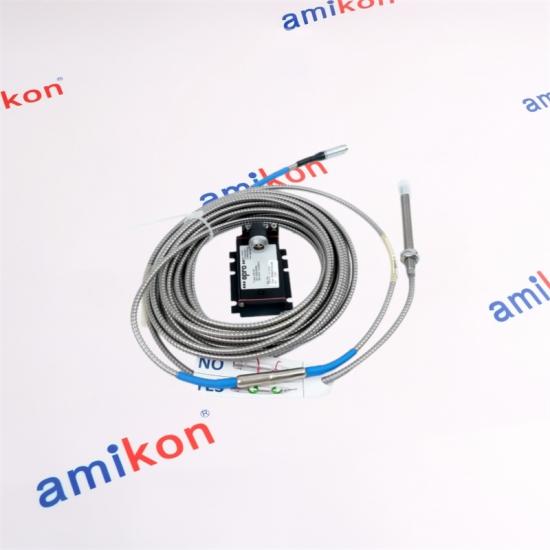

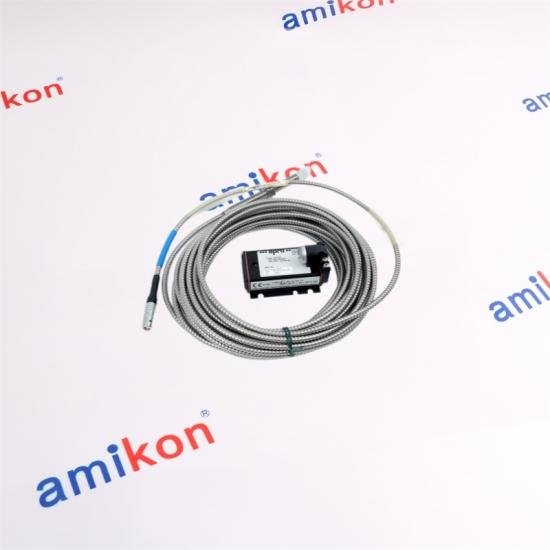

EMERSON PR6423-012-140 8 mm Eddy Current Sensor

EMERSON PR6423-012-140
EMERSON PR6423-012-140
EMERSON PR6423-012-140

EMERSON PR6423-012-140 8 mm Eddy Current Sensor

Calculate shipping
Quotation Request


EMERSON / EPRO
EDDY CURRENT SENSOR
PR6423
/012-140

↔
8 mm
Non-contact sensing
◇ Shaft displacement and vibration measurement for rotating equipment.
EDDY CURRENT


NON-CONTACT MEASUREMENT
Precision Shaft Monitoring
01
STATIC MEASURING RANGE
±1.0 mm
02
SENSITIVITY
8 V/mm
03
OPERATING TEMPERATURE
−35 to +180°C
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.



CONTACT
SOURCE WITH AMIKON



SALES MANAGER
Miya zheng







AMS / EPRO
8 mm eddy current sensing platform
01
Non-contact displacement measurement
08
8 mm sensor tip architecture
EMERSON / EPRO MACHINERY HEALTH
PR6423/012-140

8 mm Eddy Current Sensor
A non-contact sensor configuration designed for demanding turbomachinery measurements including shaft displacement, vibration, position, eccentricity and speed.
2 mm
Linear measurement range
8 V/mm
Incremental scale factor
IP66
Protection class
CONFIGURATION
M10 × 1 thread
Non-armored cable
45 mm sensor length
10 m
Cable length
LEMO
Cable end


01 / SENSOR CORE
Built around
non-contact measurement


The PR6423 is an 8 mm eddy current sensor intended for contactless measurement on conductive targets. The design is used within machinery monitoring chains where the sensor works with an appropriate converter.

The PR6423 platform is suited to critical rotating machinery such as steam turbines, gas turbines, hydro turbines, compressors, gearboxes, pumps and fans.
MEASUREMENT
2 mm
Linear measurement range
INITIAL GAP
0.5 mm
Initial air gap
SENSITIVITY
8 V/mm
ISO scale factor, ±5% at 0–45°C
LINEARITY
±0.025 mm
Deviation from best-fit straight line
TARGET
≥25 mm
Minimum shaft diameter
REFERENCE MATERIAL
42CrMo4
AISI / SAE 4140 ferromagnetic steel
CONFIGURATION MAP
What the suffix means
01 M10 × 1 thread
Standard PR6423 thread family.
2 45 mm total sensor length
The third position in the sensor-length code is 2.
1·4·0 10 m cable / LEMO end
The configuration uses no adapter plug, a 10 m cable and LEMO termination.
◈
APPLICATION FIELD
Rotating machinery

The PR6423 series is intended for measurements including radial and axial shaft dynamic displacement, position, eccentricity and speed.

Typical machinery: steam turbines · gas turbines · hydro turbines · compressors · gearboxes · pumps · fans
The sensor forms part of a measurement chain with a compatible converter or transmitter.
02 / ENVIRONMENT
Designed for demanding surroundings

PR6423 sensors are specified for an operating temperature range of -35°C to +180°C for the sensor including its 1 m cable. The cable and connector range is -35°C to +150°C.
IP66
Protection class
PEEK
Sensor tip material
PTFE
Cable material
100 g
Approx. sensor + 1 m cable
Mechanical and chemical environment: the sensor uses a stainless-steel case, PEEK sensor tip, PTFE cable and nickel-plated brass connector. The specified sensor construction is resistant to water, steam, natural gas, helium, bearing oils, gasoline, benzol, nitric acid and listed chlorinated compounds at room temperature.
MEASUREMENT CHAIN
Sensor → Converter → Monitoring System
◉
PR6423
Non-contact sensing element
 →
◇
CON 0x1 / compatible converter
Signal conversion and adjustment
 →
▣
Monitoring layer
Protection, monitoring or analysis
For accurate relative-distance measurement, the sensor and converter are adjusted together. The standard measuring target is 42 CrMo 4 / SAE 4140; alternative conductive target materials can require corresponding adjustment.


SOURCE • MATCH • SUPPLY
Need PR6423/012-140?

Send the exact part number, quantity, destination and required date. Our sales team can help confirm the requested configuration before order processing.
SALES MANAGER
Miya zheng
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
03 / PURCHASE CHECK
PR6423/012-140
questions that matter

The following points focus on configuration matching, measurement-chain compatibility, installation planning and replacement decisions.
Can PR6423/012-140 replace another PR6423 configuration directly?
Not automatically. The PR6423 family uses different thread, sensor-length, cable, adapter and termination combinations. For a replacement, the complete mechanical and electrical configuration should match the existing installation.
Why does PR6423/012-140 have a 10 m cable and LEMO termination?
The “140” suffix corresponds to the configuration using a 10 m total cable length and LEMO cable end, while the preceding configuration uses no adapter plug. This makes the complete suffix important when ordering a replacement.
What target material should be considered when matching PR6423/012-140?
The standard reference material is 42 Cr Mo 4 / SAE 4140 ferromagnetic steel. If a different conductive material is used, the measuring chain may require adjustment for that target material.
What installation details are important for PR6423/012-140?
The sensor holder should be stiff and vibration-free. Cable routing should avoid mechanical damage, rotating parts, permanent oil immersion and excessive bending. The specified minimum bending radius is 25 mm for the standard sensor cable.
Which PR 642x models are relevant when PR6423/012-140 is not the required geometry?
The PR 642x family includes PR6422, PR6423, PR6424, PR6425 and PR6426. Selection depends on the required measuring range, available measuring track, shaft geometry and environmental temperature.
