| EMERSON / PR6423-003-110 | PRODUCT CONTACT FAQ SERIES RECOMMENDED |
|
EMERSON AMS / MACHINE PROTECTION

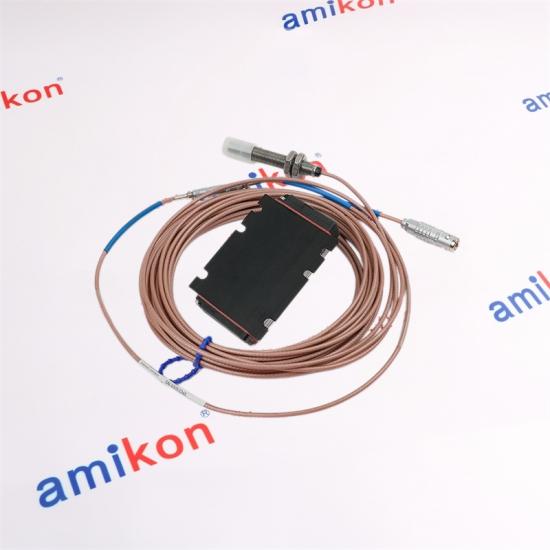

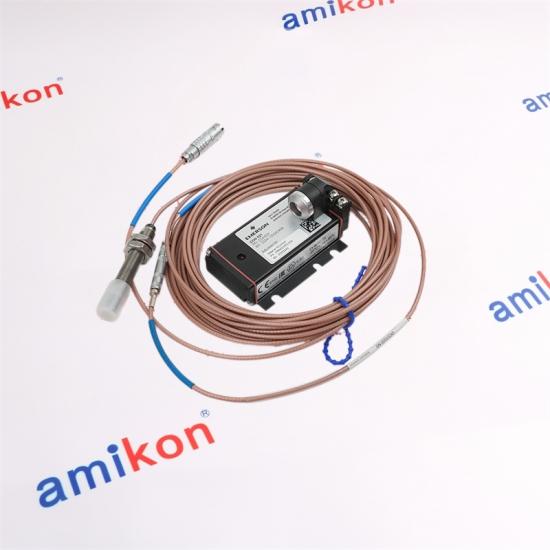

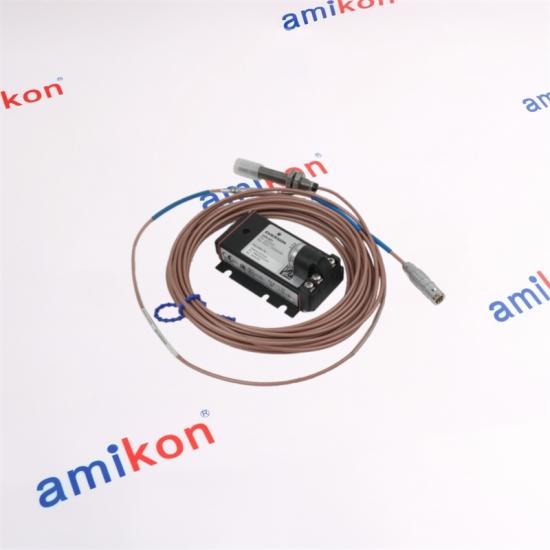

PR6423-003-110Eddy Current Displacement Sensor
The PR6423 family is designed for non-contact measurement of mechanical displacement, shaft position and vibration on rotating machinery. The PR6423-003-110 configuration belongs to the CON series of eddy-current measurement sensors and is intended for use with compatible signal conditioning electronics. |
MODEL FOCUS
PR6423-003-110
|
|
NON-CONTACT PRINCIPLE
Eddy-current displacement sensingEddy-current sensing measures the relationship between the probe and a conductive target without physical contact. This arrangement is useful for rotating shafts, thrust position monitoring and vibration measurements where a continuously moving surface must be monitored without mechanical probe contact. SYSTEM ROLE
The sensor forms the field-side element of a measurement chain. Correct operation depends on matching the probe configuration with the corresponding extension cable, driver / signal-conditioning electronics and mechanical installation arrangement. |
|
|
A
Sensor Technology
Non-contact eddy-current displacement measurement for conductive targets. |
B
Mechanical Integration
Intended for fixed installation with a controlled probe-to-target relationship. |
C
Signal Chain
Requires the correct associated electronics and cable arrangement for the selected configuration. |
| PART NUMBER | PR6423-003-110 | APPLICATION CLASS | Rotating Machinery Monitoring |
|
01
PR6423Eddy-current sensor family used for non-contact measurements associated with rotating machinery. |
PR6423-003-110
Selected ConfigurationWhen replacing a sensor within the PR6423 family, the complete ordering designation should be matched rather than selecting by family name alone. Mechanical dimensions, electrical characteristics, cable arrangement and associated electronics must remain compatible with the installed measurement chain. |
03
System MatchingThe sensor should be evaluated together with its extension cable, signal conditioner and installation geometry before substitution. |
For an installed-machine replacement, compare the complete part number and the existing sensor chain. A visually similar probe from another configuration should not be treated as an automatic substitute.
|
04 / PROCUREMENT SUPPORT
Need PR6423-003-110?Send the part number, quantity, destination and required date. For installed-system replacements, adding the existing sensor configuration helps us check the requested configuration more accurately. |
AMIKON SALES
Miya Zheng
Email: sales@amikon.cn
Phone / WhatsApp: +86 180 2077 6792
Delivery: 3–5 days
Warranty: 12 months
|
|
Q01
Can PR6423-003-110 replace another PR6423 sensor directly?Not automatically. The complete ordering code must be compared because PR6423 configurations can differ in mechanical and electrical characteristics. The associated extension cable, electronics and installation arrangement should also be checked before substitution. |
Q02
What should be checked when ordering PR6423-003-110 for an existing machine?Check the complete installed part number, probe location, target material, required measurement function, extension cable and compatible signal-conditioning electronics. This prevents selecting a family-compatible but configuration-incompatible replacement. |
|
Q03
Is PR6423-003-110 intended for contact measurement of a rotating shaft?No. The PR6423 uses an eddy-current, non-contact measurement principle. The probe monitors the relationship between the sensor and conductive target without physical contact with the moving shaft. |
Q04
Why does PR6423-003-110 need to be considered with its signal electronics?The probe is one part of an eddy-current measurement chain. Its electrical behavior is designed to operate with compatible conditioning electronics, so replacing only the sensor without checking the complete chain can lead to an incorrect configuration. |
|
Q05
What makes PR6423-003-110 relevant for rotating-machine monitoring?Its non-contact eddy-current principle allows displacement-related measurements on conductive rotating-machine components. This makes the PR6423 family suitable for monitoring applications involving shaft position, displacement and vibration when correctly integrated with the associated measurement electronics. |
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PAYMENT
T/T
|
SHIPPING
DHL / FedEx / UPS / EMS / TNT
|
Please contact us within 7 days if you have any question after you receiving the items.
The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns.
The buyer is responsible for all the shipping cost incurred.
|
