EMERSON / EPRO MACHINE MONITORING

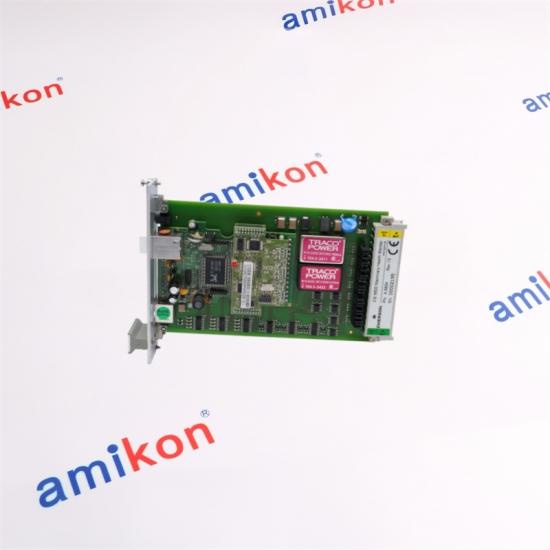

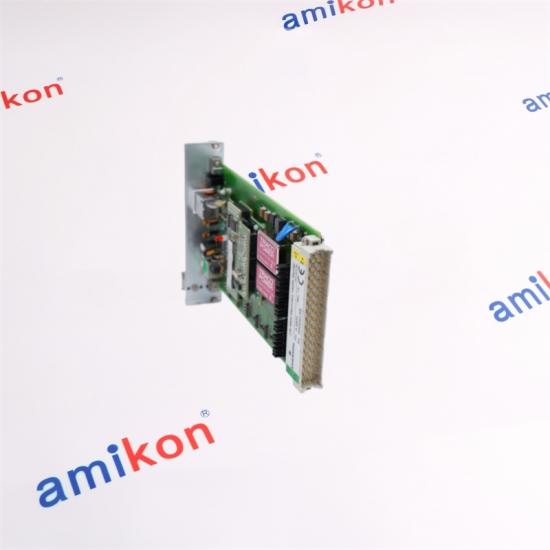

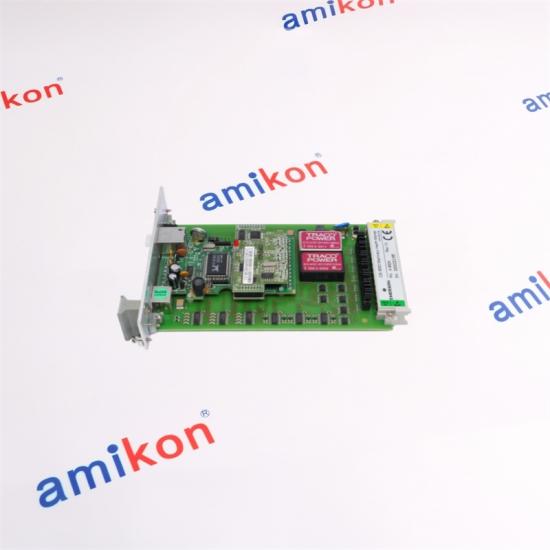

A6822MMS 6822 Interface Card
A machine-monitoring interface position within the EPRO MMS 6000 architecture, designed to move monitored machine data toward higher-level visualization, analysis and control environments. |
CORE FUNCTION
Machine-monitoring data interface
MMS 6000 integration
RS-485 / Modbus communication architecture
Industrial data transfer and visualization interface
|
|
SYSTEM
MMS 6000
|
INTERFACE
RS-485
|
PROTOCOL
MODBUS
|
ROLE
DATA INTERFACE
|
|
FIELD LAYER
MMS 6000 Monitors
Continuous machine-monitoring values and module status
|
→
RS-485
|
INTERFACE LAYER
A6822 / MMS 6822
Interface between MMS monitoring data and downstream communication environments
|
→
MODBUS
|
UPPER LAYER
Visualization / Analysis
Data can be forwarded for archiving, visualization and further analysis.
|
Within the MMS 6000 architecture, interface cards continuously acquire data from connected monitoring modules over the internal RS-485 bus and make the resulting values available to downstream communication systems. This architecture separates machine measurement from higher-level data presentation, allowing monitoring values to be transported into visualization and analysis environments.
|
◉ Centralized Data Transfer
The interface role is focused on transporting monitoring values from the MMS 6000 layer toward subsequent visualization and analysis tools rather than replacing the dedicated measurement modules. |
◇ Machine Status Visibility
Monitoring values can be transferred together with relevant limit-state and module-state data, providing downstream systems with a structured view of machine-monitoring conditions. |
|
△ Integration-Oriented Design
The interface concept supports communication between the MMS 6000 monitoring layer and automation, visualization or analysis environments, making it useful where machine-monitoring data must leave the local monitoring rack. |
▱ Configuration Access
The MMS 6000 interface architecture provides configuration access through the front-side serial interface, supporting commissioning and parameter-management workflows. |
| System family | EPRO MMS 6000 machine-monitoring system |
| Interface architecture | RS-485 based communication within the MMS monitoring environment |
| Downstream protocol family | MODBUS RTU and Ethernet-based MODBUS TCP/IP architecture within the related MMS interface family |
| Configuration interface | Front-side RS-232 service/configuration connection within the MMS interface architecture |
| Ethernet interface | RJ45 connection is used by the related MMS interface architecture for Ethernet TCP/IP communication |
| Typical data transferred | Measured characteristics, limit-state information, module-state information and additional monitoring parameters depending on the connected architecture |
| Typical role | Gateway/interface between machine-monitoring modules and higher-level monitoring, visualization or analysis systems |
A6822 should be matched by its complete ordering designation and existing rack/interface configuration before replacement. Communication architecture, connected MMS modules, addressing and downstream protocol requirements should be checked as a complete system rather than by appearance alone.
|
01 / MONITORING
MMS 6000 Layer
Connected monitoring modules provide the machine-related values handled by the interface architecture. |
02 / TRANSFER
RS-485 Interface
The internal communication path connects the monitoring modules with the interface stage. |
03 / PROTOCOL
MODBUS
Monitoring values can be converted into a protocol suitable for downstream automation and visualization environments. |
04 / SUPERVISION
Visualization & Analysis
Transferred values can be used by higher-level systems for display, archiving and further analysis. |
The MMS 6000 family contains dedicated monitoring modules for different machine variables. The interface stage should therefore be considered together with the monitoring modules and communication requirements already installed in the rack.
|
MMS 6210
Dual-channel shaft displacement monitoring
|
MMS 6220
Dual-channel eccentricity monitoring
|
MMS 6312
Dual-channel rotational-speed monitoring
|
MMS 6410
Dual-channel measuring-amplifier function
|
These related modules illustrate the broader MMS 6000 architecture: individual modules perform dedicated machine measurements while interface equipment provides a communication path toward subsequent systems.
|
◌
Rotating Machinery
Suitable for architectures where vibration, displacement, speed or other machine-monitoring values must be transferred beyond local monitoring modules. |
◎
Condition Monitoring
Useful when measured values and module status need to be presented to operators, archived or processed by a higher-level system. |
◈
Industrial Monitoring Networks
Provides an interface path for integrating machine-monitoring data into broader industrial communication and supervision structures. |
|
Match the complete designation
Before ordering a replacement, compare the complete identification on the installed unit, the rack arrangement, connector configuration and the communication architecture. |
Confirm the connected system
The interface module operates as part of a larger monitoring architecture. Confirm the installed MMS 6000 modules and the downstream MODBUS or Ethernet requirements before substitution. |
For an exact replacement check, send the complete part number, quantity, destination and a clear picture of the existing unit label or connector area to our sales team.
|
SALES MANAGER
Miya Zheng
Email: sales@amikon.cn
Phone / WhatsApp: +86 180 2077 6792
Delivery: 3–5 days | Warranty: 12 months
Payment: T/T | Shipping: DHL / UPS / FedEx / EMS / TNT
|
EMAIL SALES WHATSAPP SALES
Please include Part Number, Quantity, Destination, Required Date and Machine/System.
|
Please contact us within 7 days if you have any question after you receiving the items.
The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns.
The buyer is responsible for all the shipping cost incurred.
|
Can A6822 replace an existing MMS interface card directly?
Replacement should not be based only on the model number. The installed MMS 6000 rack, connected monitoring modules, communication path and complete part designation should be checked together. This avoids substituting a card with a different interface configuration. |
Will A6822 work with existing MMS 6000 monitoring modules?
Its intended architecture is tied to the MMS 6000 machine-monitoring environment. Compatibility should be checked against the installed MMS modules and their RS-485 communication arrangement before purchase. |
|
Why does A6822 matter when the monitoring modules are still operating?
The interface stage becomes important when monitoring values need to move from the local MMS 6000 environment into higher-level visualization, archiving, analysis or automation systems. A functioning measurement module does not by itself provide the same downstream communication role. |
What should be checked before ordering A6822 for an older installation?
Check the complete part designation, rack position, connected MMS modules, communication wiring and the receiving system. Older installations may use a specific communication arrangement that must be preserved during replacement. |
|
Can A6822 be integrated into a MODBUS-based supervisory environment?
The MMS 6822 interface-card family is associated with RS-485 to MODBUS RTU and Ethernet MODBUS TCP/IP communication. The exact interface configuration should still be matched to the installed unit and receiving system before a replacement is selected. |
|
