DELTAV • CHARM I/O • CIOC2

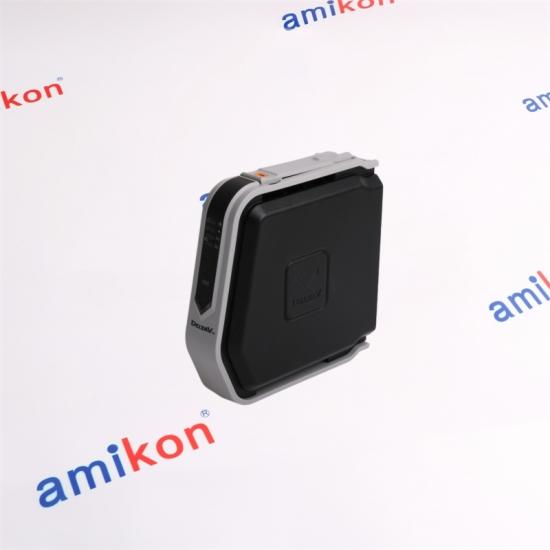

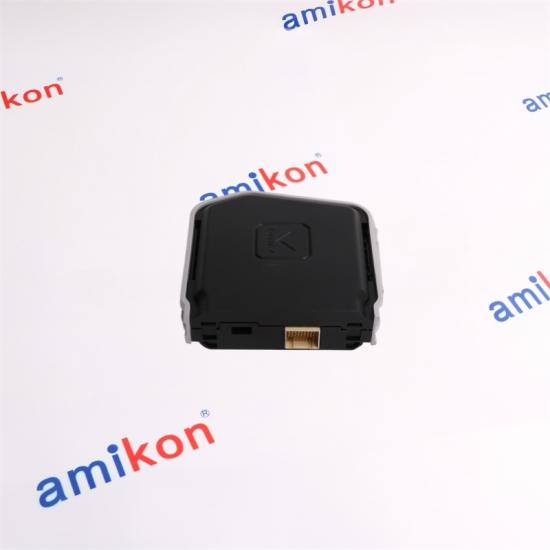

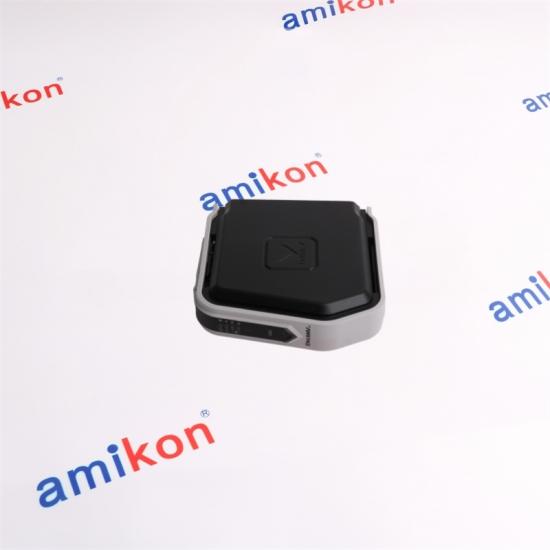

KL2101X1-BB1CHARM I/O Card 2 (CIOC2)
The KL2101X1-BB1 is a DeltaV CHARM I/O Card 2 used within the CHARM I/O architecture. Its CIOC2 design forms the interface between the CHARM I/O subsystem and the DeltaV control environment.
|
CIOC2 POWER PROFILE
Dual DC/DC power architecture for the CIOC2.
|
|
01 / INPUT POWER
24 VDC
Maximum input current: 2 A
|
02 / OUTPUT POWER
6.3 VDC
Output current: 3.25 A
|
03 / AMBIENT RANGE
−40 to +70 °C
Ambient operating temperature
|
|
System Role
KL2101X1-BB1 belongs to the DeltaV CHARM I/O family and is designated as the second-generation CHARM I/O Card, or CIOC2. It provides the subsystem-level interface used by the CHARM I/O architecture. ENVIRONMENTAL WINDOW
Ambient temperature: −40 °C to +70 °C
Relative humidity: 5% to 95%, non-condensing Airborne contaminants: ISA-S71.04-1985 Class G3 |
◇
Installation & Service Considerations
The CIOC2 carries specific hazardous-area installation requirements. Emerson states that the unit must not be removed or inserted while system power is energized unless the area is known to be non-hazardous. The unit contains no user-serviceable parts and should not be disassembled. Emerson also states that calibration is not required. For replacement work, verify the exact DeltaV architecture, carrier arrangement, system revision and hazardous-area requirements before installation.
|
|
CONTROL SYSTEM
DeltaV
|
→ |
INTERFACE
KL2101X1-BB1
|
→ |
CHARM I/O
Field Interface
|
|
KL2101X1-BB1
CIOC2
The second-generation CHARM I/O Card represented by the requested model. |
KL2101X1-BA1
CIOC
Related first-generation CHARM I/O Card designation. Verify generation and system compatibility before substitution. |
KL2102X1-BA1
WIOC
Wireless I/O Card hardware in the DeltaV ecosystem; it is a different functional product and should not be treated as a direct replacement for CIOC2. |
Replacement Check
Match Exact Model
Compare model suffix, I/O architecture, carrier arrangement, system revision and area classification before ordering. |
|
Can KL2101X1-BB1 be treated as a direct replacement for KL2101X1-BA1?
They are related CHARM I/O Card generations, but the BB1 designation is the CIOC2 version. A replacement decision should therefore verify the DeltaV system revision, carrier arrangement and installed architecture rather than relying only on the similar model numbering. |
What should be checked before ordering KL2101X1-BB1 for an existing DeltaV system?
Confirm the complete model number, CIOC generation, carrier arrangement, DeltaV system revision and area classification. This avoids substituting a related CHARM component with different system requirements. |
|
Does KL2101X1-BB1 have specific hazardous-area handling requirements?
Yes. Emerson specifies hazardous-area approvals and states that the unit must not be inserted or removed with system power energized unless the area is known to be non-hazardous. Site installation requirements must be followed for the actual application. |
Is KL2101X1-BB1 suitable for a wide industrial temperature range?
The specified ambient temperature range is −40 °C to +70 °C. The installation environment should also satisfy the stated humidity and airborne-contaminant conditions. |
|
Can KL2101X1-BB1 be serviced or field-calibrated?
Emerson states that the unit contains no user-serviceable parts and should not be disassembled. Emerson also states that calibration is not required. Maintenance should therefore focus on correct system-level replacement and installation procedures. |
|
|
