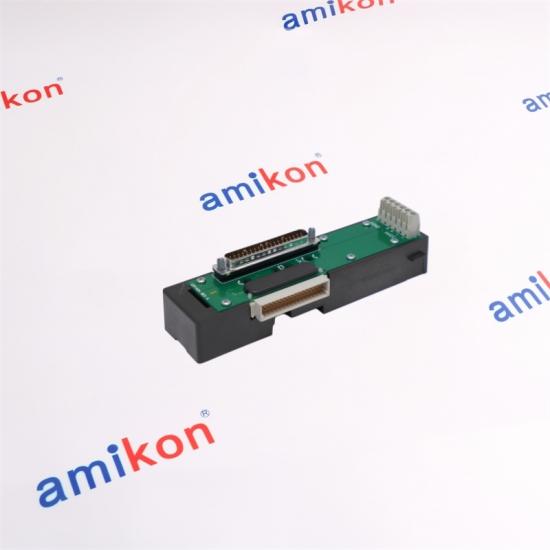

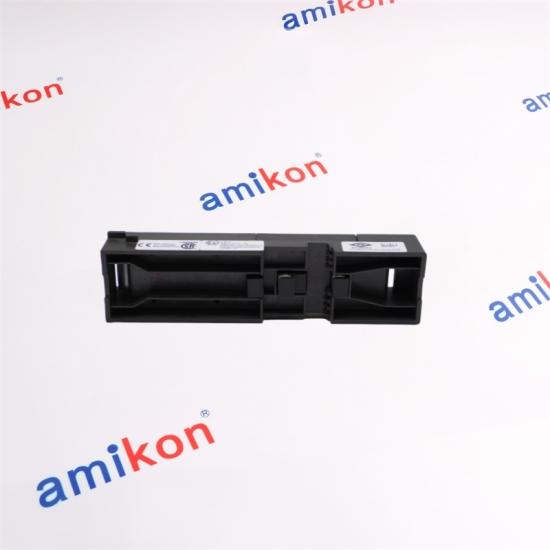

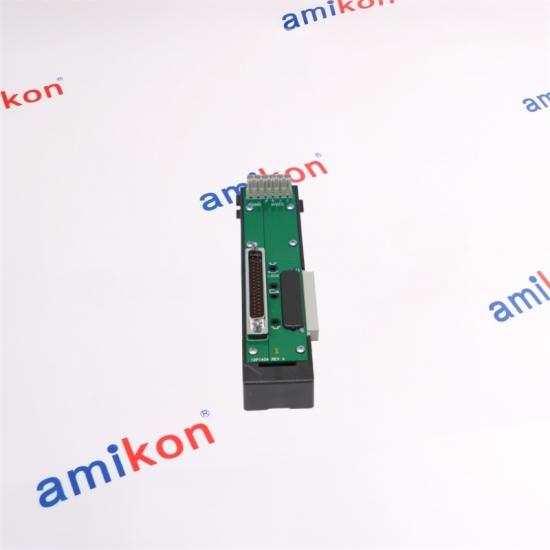

EMERSON KJ4010X1-BF1 12P0831X072 LocalBus Right Extender

Ø Company Service

Ø Product Overview

The EMERSON KJ4010X1-BF1 12P0831X072 is a LocalBus Right Extender designed for the Emerson DeltaV™ Distributed Control System (DCS). It is used to expand the LocalBus network, enabling additional I/O carriers and modules to be integrated into the control architecture while maintaining reliable communication performance. This module supports scalable system expansion and helps engineers build larger, more flexible automation solutions without redesigning the existing control infrastructure.

Ø Specifications

Ø Product Features

1. LocalBus Network Expansion

Allows DeltaV systems to connect additional I/O carriers and control modules, supporting future system growth.

2. Reliable High-Speed Communication

Ensures stable data transmission between controllers and field I/O devices for continuous process operation.

3. Industrial-Grade Durability

Designed to withstand harsh industrial environments, including vibration, shock, and temperature fluctuations.

4. Seamless DeltaV Integration

Engineered specifically for DeltaV platforms, reducing commissioning time and simplifying maintenance activities.

5. Hazardous Area Compliance

Suitable for deployment in certified hazardous locations where safety and reliability are critical.

6. Compact Design

Occupies minimal cabinet space while enabling efficient system expansion.

Ø Product Uses

The KJ4010X1-BF1 is commonly used to:

1. Extend DeltaV LocalBus communication networks.

2. Add new I/O carriers without replacing existing infrastructure.

3. Support plant modernization and system upgrades.

4. Increase controller-to-I/O connectivity capacity.

5. Enhance scalability in large automation projects.

6. Facilitate distributed control architectures across multiple cabinets.

Ø Application Scenarios

1. Oil & Gas

Supports expansion of process control systems in upstream, midstream, and downstream facilities.

2. Chemical Processing

Enables integration of additional monitoring and control points as production requirements evolve.

3. Power Generation

Used in turbine control, boiler management, and balance-of-plant automation systems.

4. Water & Wastewater Treatment

Provides scalable communication infrastructure for expanding treatment processes.

5. Pharmaceutical Manufacturing

Helps maintain precise process control while accommodating facility expansion.

6. Petrochemical Plants

Facilitates reliable communication between distributed I/O subsystems and central controllers.

Ø FQA

Q1: What is the primary function of the KJ4010X1-BF1?

A: It extends the DeltaV LocalBus network, allowing additional I/O carriers and modules to be connected to the control system.

Q2: Is the KJ4010X1-BF1 compatible with all DeltaV systems?

A: It is specifically designed for Emerson DeltaV automation systems and integrates seamlessly with supported DeltaV architectures.

Q3: Can the module operate in hazardous environments?

A: Yes. The unit supports hazardous-area certifications and is suitable for Class I Division 2 and ATEX-compliant installations when installed according to Emerson guidelines.

Q4: What operating temperature range does the module support?

A: The device is rated for operation between -40°C and +70°C, making it suitable for demanding industrial environments.

Q5: Why is the KJ4010X1-BF1 important for system expansion?

A: It allows facilities to increase I/O capacity and expand control networks without major system redesign, reducing upgrade costs and downtime.

Q6: Does the module require frequent maintenance?

A: No. The unit contains no user-serviceable parts and is designed for long-term reliable operation with minimal maintenance requirements.
