HIGH-SIDE OUTPUTS
|
Emerson DeltaV
KC3020X1-BA2

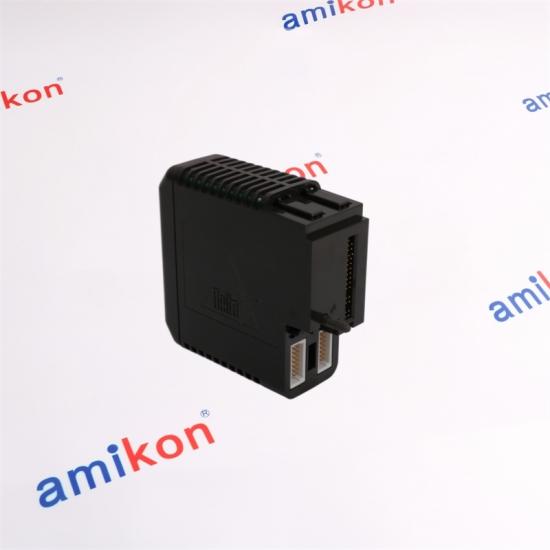

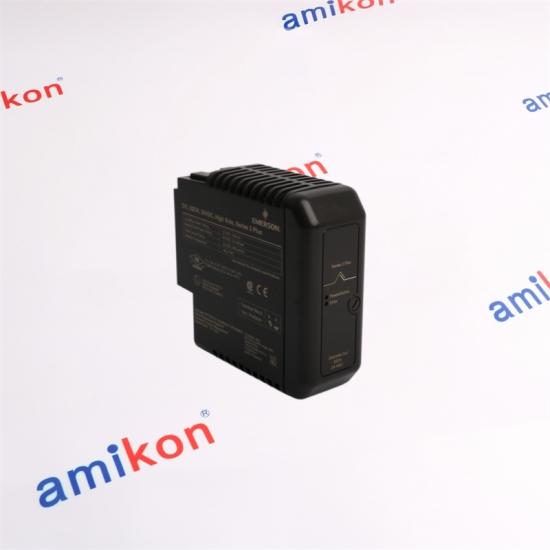

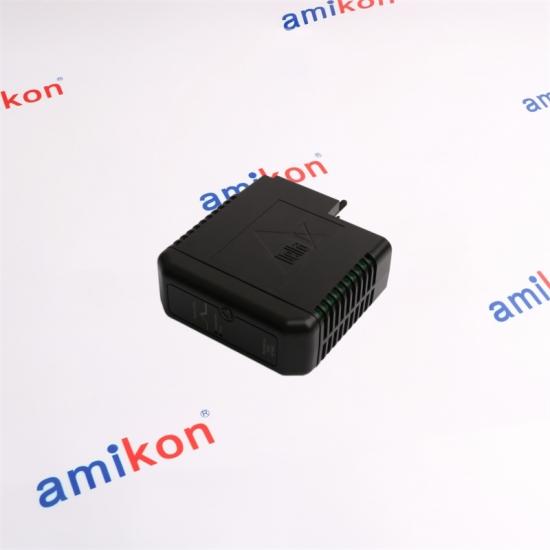

The KC3020X1-BA2 is a high-density DeltaV discrete output card for 24 VDC high-side switching. Its 32 output points concentrate actuator commands in a compact I/O position while system power, bussed field power, terminal hardware and field-load design remain distinct parts of the installed assembly.
|
|
01
|
02
|
03
|
04
|
05
|
06
|
07
|
08
|
| ▣ LOGIC STATE |
⇄ OUTPUT SWITCH |
⚡ 24 VDC POWER |
◉ FIELD LOAD |
| 32 output channels High-density discrete command capacity. |
24 VDC high-side output Sources field voltage to compatible loads. |
100 mA per channel Nominal output-channel load rating. |
| 12 VDC 150 mA Local-bus power requirement. |
24 VDC 3.2 A/card Bussed field-power capacity. |
−40 to +70°C ambient range Operating temperature envelope. |
| CHECK PRICE + LEAD TIME Miya Zheng · Sales Manager |
EMAIL · sales@amikon.cn | WHATSAPP · +86 18020776792 |
| 01 | Output Role | Transfers DeltaV logic states to 24 VDC field loads such as interposing relays, indicators and compatible solenoid circuits. |
| 02 | High-Side Switching | Each commanded point sources the positive side of the DC supply. Field return, load current and protective devices must be engineered with the selected terminal assembly. |
| 03 | Two Power Domains | Local-bus power operates card electronics; bussed field power feeds the output circuits. Both must be checked independently during troubleshooting. |
| 04 | Density and Loading | Thirty-two points reduce I/O footprint, but total card current, individual point current, cable rating and load inrush remain design constraints. |
| 05 | Replacement Control | The BA2 product code, carrier position, terminal block, keying and configured channel mapping must all agree before a replacement is installed. |
| LOGIC STATE | 32-POINT CARD | FIELD POWER | DC LOAD |
| KC3020X1-BA2 | 32-channel, 24 VDC high-side output card; the specified M-series Plus replacement. |
| KC3021X1-BA2 | 32-channel discrete input card; senses contacts rather than driving loads. |
| KJ3204X1-BK1 | S-series 32-channel output card; a different physical platform. |
| Terminal Block | Completes load wiring and field-power distribution; select by the approved assembly configuration. |
|
Supply Built Around the Maintenance Window.
Clear communication, part matching and coordinated shipment support faster plant recovery.
|
QUICK RESPONSE
|
|
| CONTACT MIYA FOR AVAILABILITY Miya Zheng · Sales Manager |
EMAIL · sales@amikon.cn | WHATSAPP · +86 18020776792 |
| RETURN CARE | Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the reason. Resolution follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
| 01 | KC3020X1-BA2: What should be matched before ordering? | Confirm the complete product code, hardware revision, installed platform, carrier or terminal assembly, quantity and connector condition. |
| 02 | KC3020X1-BA2: Can a visually similar module replace it? | No. Similar housings can serve different signal types, electrical ranges or network media. Compatibility must be established from the complete assembly configuration. |
| 03 | KC3020X1-BA2: What installation details matter most? | Check power isolation, keying, field wiring, environmental rating, configured channel or port mapping and the condition of mating connectors. |
| 04 | KC3020X1-BA2: Can it be replaced while the system is running? | Online work depends on the platform, redundancy state and approved site procedure. Confirm system health and required power removal before disturbing hardware. |
| 05 | KC3020X1-BA2: What should be supplied with an inquiry? | Provide the full product code, revision, quantity, destination, required condition and clear photographs of labels and connectors. |
