18–30
VDC OPERATING INPUT
|
POWER WITH A REDUNDANCY PATH
PACSystems RX3i

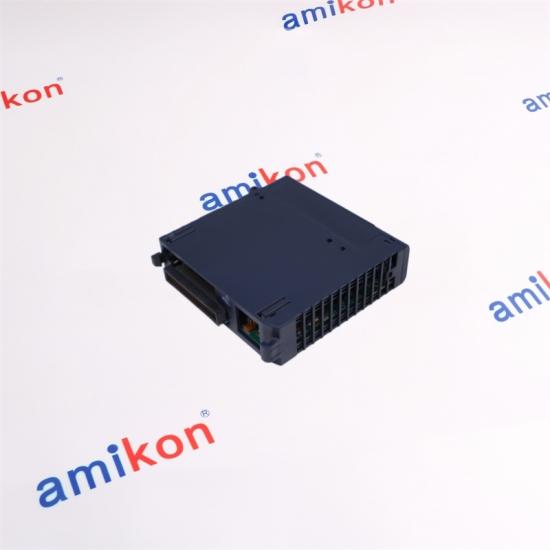

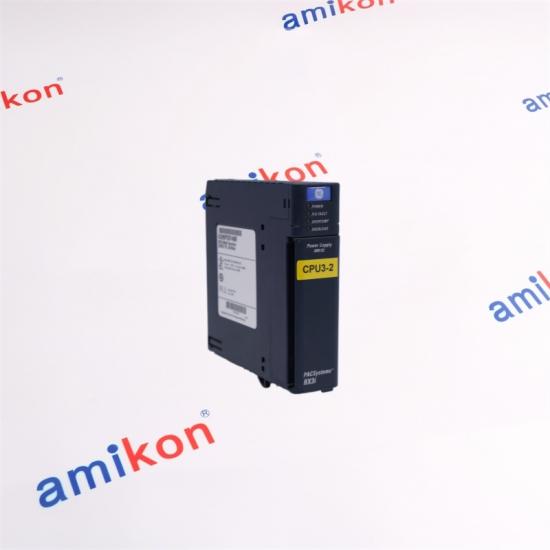

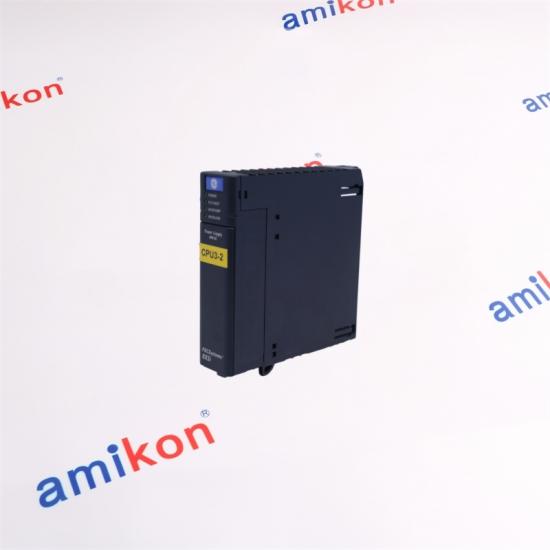

IC695PSD180IC695PSD180 converts a nominal 24 VDC plant supply into regulated backplane power for PACSystems RX3i modules. It installs in one slot of an IC695 universal backplane and can operate as the only supply or participate in supported load-sharing and redundant power arrangements.
|
80 W
TOTAL LOAD CAPACITY
|
|
24 VDC
Nominal input
Operates from 18 to 30 VDC.
|
80 W
Total capacity
Available across all backplane loads.
|
1 slot
Backplane space
Fits an IC695 universal backplane.
|
Yes
Load sharing
Supports redundancy arrangements.
|
0 to 60°C
Operation
Rated inlet-air temperature range.
|
4 LEDs
Status
Power, fault, overload and temperature.
|
| 01 | Power role | Supplies regulated operating power to the RX3i universal backplane. The complete module budget must remain within the 80 W total rating and each backplane rail limit. |
| 02 | Input and wiring | The nominal 24 VDC input accepts 18 to 30 VDC. Field conductors are 14 to 22 AWG, one conductor per terminal. Input-to-backplane isolation is not provided. |
| 03 | Redundancy behavior | A compatible arrangement can share load between supplies and maintain backplane power after one supply path is lost. Redundancy does not replace correct source protection, wiring or capacity calculations. |
| 04 | Diagnostics | Front indicators report Power, Power-Supply Fault, Overload and Overtemperature conditions. An overload or thermal indication requires the connected load, ventilation and wiring to be checked before return to service. |
| 05 | Environment | Operating inlet temperature is 0 to 60°C; storage is -40 to +85°C. Relative humidity is 5 to 95 percent, non-condensing. |
| 06 | Installation control | The PSD180 occupies one universal-backplane slot. Confirm backplane revision, CPU configuration support, total rail demand, source voltage and redundancy topology before installation. |
|
01
18–30 VDC source
Protected plant DC feeds the module.
|
02
IC695PSD180
Conversion and backplane distribution.
|
03
Universal backplane
Power rails serve installed RX3i modules.
|
04
Second supply path
Optional sharing or redundancy arrangement.
|
| RELATED MODEL | PRIMARY DISTINCTION | CAPACITY / MEMORY | SYSTEM ROLE |
| IC695PSD040 | 24 VDC input | 40 W | Standard single-supply role |
| IC695PSD140 | 24 VDC input | 40 W | Load sharing / redundancy |
| IC695PSD180 | 24 VDC input | 80 W | Higher-capacity sharing / redundancy |
| IC695PSA140 | AC / 125 VDC input | 40 W | Alternative source class |
|
QUALITY + RESPONSE
Fast, reliable delivery supports urgent automation maintenance.
|
VERIFY + PREPARE
Careful order tracking and part checks protect shutdown schedules.
|
STOCK + DELIVERY
Current and discontinued automation parts are sourced for global customers.
|
| ◇ QUALITY | ⇄ RELIABILITY | ✦ TRANSPARENCY | ☎ CUSTOMER SUPPORT |
| 01 | IC695PSD180: Can IC695PSD180 replace a 40 W RX3i supply without checks? | Not by rating alone. Confirm universal-backplane compatibility, CPU configuration support, input source, slot location, wiring, rail loading and any redundancy wiring before substitution. |
| 02 | IC695PSD180: Does IC695PSD180 isolate the 24 VDC source from the backplane? | No. The specified input-to-backplane isolation is none, so grounding and source design must reflect the common electrical relationship. |
| 03 | IC695PSD180: What should be calculated before buying IC695PSD180? | Calculate total backplane demand and the demand on each output rail for every installed CPU, communication and I/O module, including the intended redundancy state. |
| 04 | IC695PSD180: What do the IC695PSD180 overload and temperature LEDs mean for maintenance? | They indicate that loading or thermal conditions require attention. Check module demand, terminal condition, cabinet airflow and inlet temperature before restoring service. |
| 05 | IC695PSD180: Can IC695PSD180 be used for redundant power? | Yes, it is designed for supported load-sharing and redundancy applications. The full topology, compatible hardware and configuration still need to match the installed RX3i system. |
