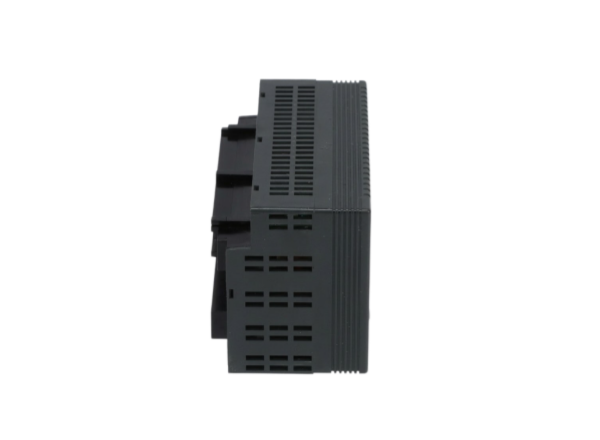

EMERSON IC200ALG331 16-Bit Voltage / Current Analog Output Module

Calculate shipping

Quotation Request

VERSAMAX

IC200
ALG331

ANALOG OUTPUT
VOLTAGE / CURRENT
4 CHANNEL

16-BIT · ISOLATED

PRECISION OUTPUT MODULE

IC200ALG331

01	CHANNEL CAPACITY 4 Isolated Outputs
02	OUTPUT RANGE 4–20 mA / ±10 VDC
03	CONVERSION 16-Bit Resolution

Precision analog control for compact VersaMax architectures.

AUTOMATION SUPPORT

Ready to Quote

Sales Manager

Miya zheng

EMAIL sales@amikon.cn WHATSAPP +86 180 2077 6792

Fast response · Global automation support

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

IC200ALG331

Overview Specifications Application Series FAQ Contact

VERSAMAX MODULAR I/O

IC200ALG331

16-Bit Voltage / Current Analog Output

Four isolated analog output channels designed for precise signal generation within VersaMax control architectures. Each channel can be configured for current or voltage operation through software.

4 ISOLATED CHANNELS

16-BIT

1500 VAC ISOLATION

CHANNELS

Isolated analog outputs

RESOLUTION

16 Bit

Converter resolution

CURRENT OUTPUT

4–20 mA

Configurable per channel

VOLTAGE OUTPUT

±10 VDC

Configurable per channel

01 / TECHNICAL CORE

IC200ALG331 Specifications

Module Type	Analog Output Module
Output Channels	4 isolated channels
Current Mode	4–20 mA
Voltage Mode	±10 VDC
Resolution	16-bit converter resolution
Isolation	250 VAC continuous / 1500 VAC for 1 minute
Update Rate	7 ms maximum
Accuracy at 25°C	±0.1% maximum of full scale
Current Load	0–1250 Ω
Voltage Load	2 kΩ minimum
External Supply	+18 to +30 VDC
Configuration	Software configurable; no jumpers or switches

CONFIGURATION

Flexible Channel Control

◆	Per-channel selection of current or voltage output
◆	Per-channel scaling
◆	Configurable default values
◆	Default or Hold Last State operation
◆	Field recalibration on command

DIAGNOSTIC CONTROL

Designed for Maintenance

◆	High and low limit diagnostics
◆	Overrange and underrange diagnostics
◆	Open-wire diagnostics
◆	Loss of field power detection
◆	Non-volatile memory fault diagnostics

VISUAL PLACEMENT

Recommended Image Position

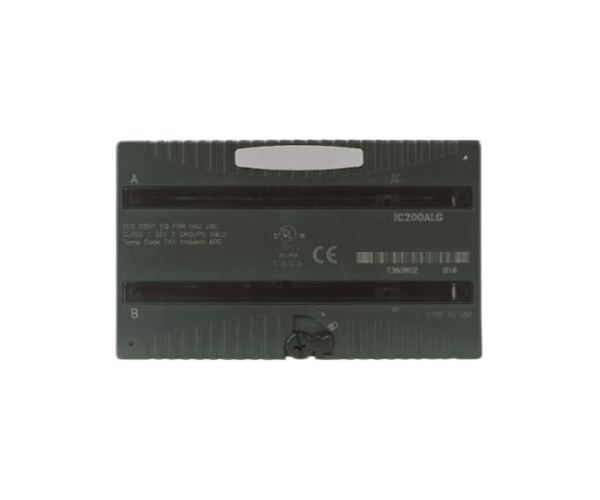

Use the module illustration showing the front face, LED arrangement and terminal area in this section.

A wiring illustration can be placed beneath the module image when a larger technical presentation is required.

02 / APPLICATION

Where IC200ALG331 Matters

Control Loops

Suitable where the control system must send a continuously variable signal to field equipment through current or voltage output channels.

Process Regulation

The selectable 4–20 mA and ±10 VDC modes allow the module to interface with different analog field devices without changing the basic module architecture.

Distributed I/O

The module receives four words of analog output data from a CPU or NIU and operates as part of a VersaMax distributed I/O architecture.

MAINTENANCE SCENARIO

When IC200ALG331 Becomes Critical

A failed analog output channel can prevent the control system from delivering the expected command signal to connected field equipment. In a running process, an incorrect or missing analog command may affect regulation, positioning or process continuity.

Unexpected output
Signal does not match the commanded process value.

Open-wire / field-power condition
The output loop may no longer provide the expected field-side response.

Process interruption
Loss of a required analog command can contribute to equipment or production downtime.

03 / SERIES

VersaMax Analog Output Family

IC200ALG331 belongs to the VersaMax analog output family. Related modules provide different channel counts, signal types and resolution options.

IC200ALG320	12-bit current output, 4 channels	4–20 mA
IC200ALG321	12-bit voltage output, 4 channels	0–10 VDC
IC200ALG322	12-bit voltage output, 4 channels	±10 VDC
IC200ALG325	13-bit voltage output, 8 channels	8-channel format
IC200ALG326	13-bit current output, 8 channels	8-channel format
IC200ALG327	13-bit voltage output, 12 channels	12-channel format
IC200ALG331	16-bit voltage/current, 4 isolated channels	4–20 mA / ±10 VDC

PURCHASE SUPPORT

Request IC200ALG331

For a faster quotation, please provide the following details with your inquiry:

Part Number	IC200ALG331
Quantity	Required quantity
Destination	Shipping destination
Required Date	Target delivery date
Machine / System	Installed equipment

SALES MANAGER

Miya zheng

EMAIL sales@amikon.cn WHATSAPP +86 180 2077 6792

DELIVERY

3–5 Days

WARRANTY

12 Months

PACKAGING

Brand New

PAYMENT

T/T

Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS

04 / PURCHASING FAQ

IC200ALG331 Buyer Questions

Why choose IC200ALG331 when the application only needs four analog outputs?

The important distinction is not only channel count. IC200ALG331 combines four isolated outputs with 16-bit conversion and selectable 4–20 mA or ±10 VDC operation, making it useful when signal flexibility and isolation are both important.

What should be checked before replacing an IC200ALG331 in an operating VersaMax system?

Confirm the installed module number, output mode, field-power arrangement, wiring and channel configuration. A replacement should match the existing control strategy rather than being selected only by physical appearance.

Can IC200ALG331 replace a basic 4–20 mA output module without changing the application?

Not automatically. IC200ALG331 offers additional voltage/current selection and isolation features, so the replacement decision should account for the existing channel configuration, field wiring and power arrangement.

What IC200ALG331 condition is most likely to justify an urgent spare purchase?

A failed output channel can interrupt a variable command to field equipment. Urgency increases when the affected channel controls a process variable, actuator or other equipment whose loss can stop production or force the system into an undesirable operating state.

Which IC200ALG331 specifications should be confirmed when sourcing a replacement?

Confirm the exact part number, four-channel configuration, voltage/current output capability, isolation requirement, external power arrangement and the existing software configuration before ordering.

AFTER-SALES TERMS

Return & Replacement

01	Please contact us within 7 days after receipt if an issue is found.
02	Returned items should remain in their original condition and include the specific reason for return. Replacement or return processing begins after the returned item is received.
03	Return shipping costs are the buyer's responsibility.

05 / RELATED PARTS

Recommended Models

C98043-A7600-L5	6SE7090-0XX84-0BJ0	A5E31429340	IC695ALG608	IC695ALG616
IC695ALG728	IC695MDL660	IC694MDL740	IC695MDL740	IC694MDL645
IC695CPU315	IC695CPE330	IC695ETM001	67A2510H04	BGS-B-Bo-175-510
1041A-5B171	FW3.5G.8316	5988-040	03-408-608-303	TA-2-81217
J1234	A10530	FC24020AB	MORE HOTS ⇒

AMIKON · INDUSTRIAL AUTOMATION SUPPLY

KEEP PRODUCTION
MOVING.

Hard-to-find automation components for replacement, maintenance and system continuity.

01 / TEAM

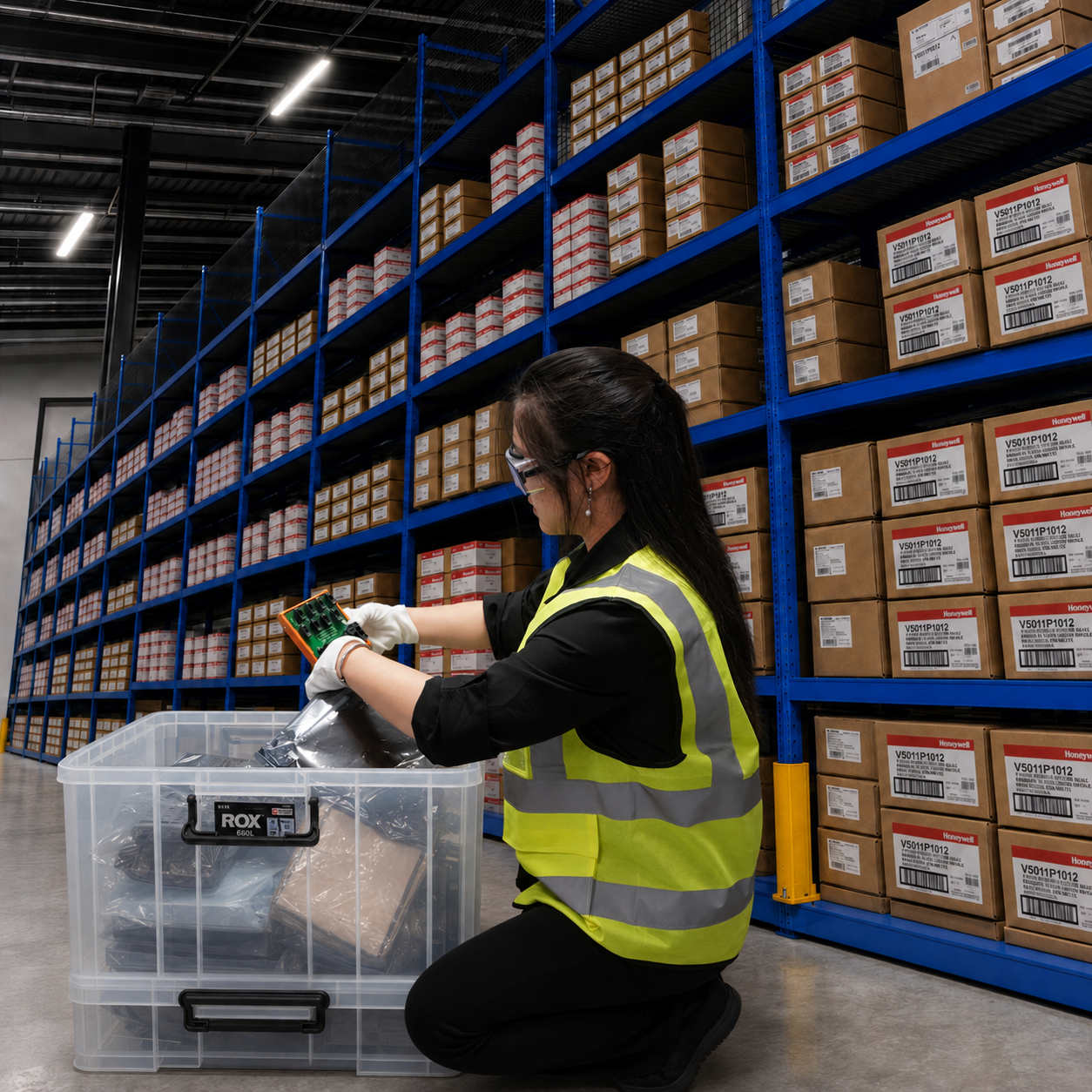

02 / WAREHOUSE
