EZ1080-05-00-010
|
NON-ARMORED |
|
◉ PROBE
8 mm
Sensor diameter
|
⌁ CASE
50 mm
M10 × 1 threaded body
|
↗ CABLE
1.0 m
Non-armored cable
|
| International Delivery on the Day Quick Response Support Intercontinental Cooperation Network |
✉ Email Sales ☏ WhatsApp |  |

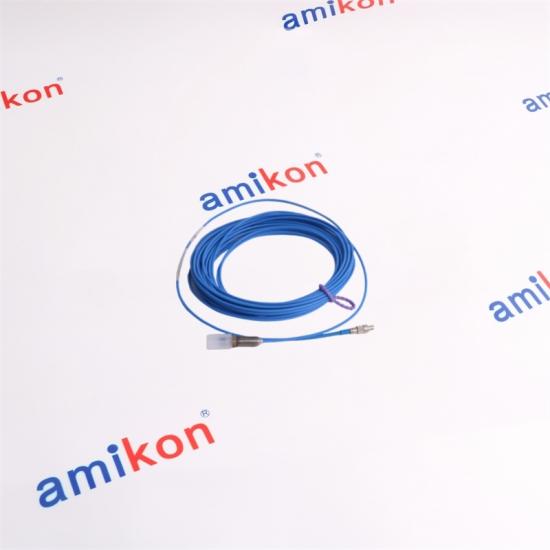

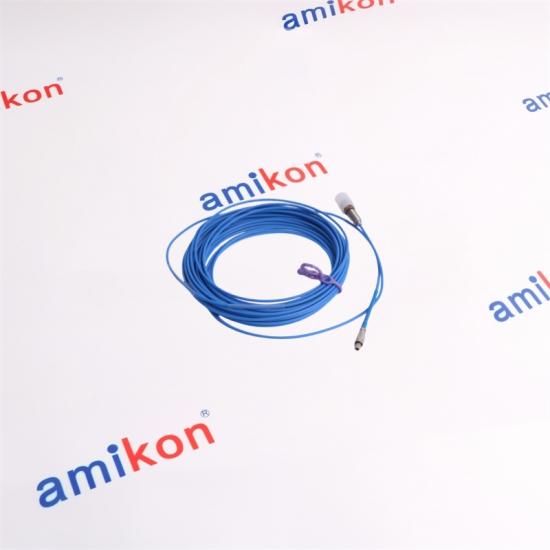

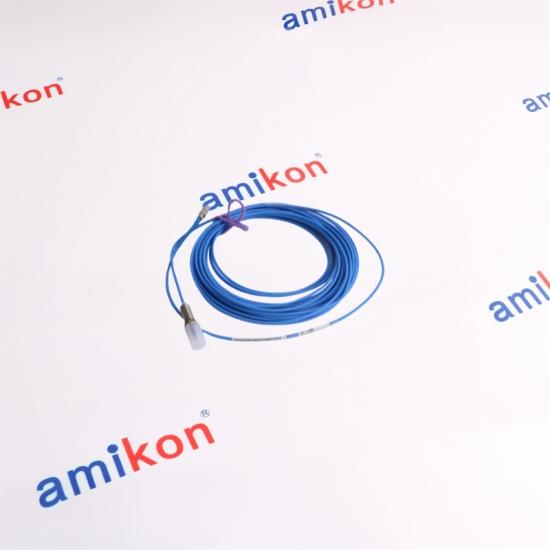

| Emerson EZ1080-05-00-010 is an 8 mm eddy current sensor for the AMS EZ 1000 measurement chain. Its ordering code specifies an M10x1 threaded sensor, 50 mm case length, no unthreaded section and a 1.0 m integral non-armored cable. It is used for non-contact observation of shaft position, displacement, vibration or a once-per-revolution reference target. |
INSTALLED FAMILY
AMS EZ 1000 Measurement Chain
8 mm / M10x1 / 50 mm / 1 m CABLE
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Product type | 8 mm eddy current sensor |
| Sensor model | EZ1080 |
| Case thread | M10x1 |
| Case length code 05 | 50 mm |
| Unthreaded length code 00 | 0 mm; no unthreaded section |
| Cable length code 010 | 1.0 m |
| Cable armor | None |
| Extension-cable use | Permitted with the 1.0 m sensor-cable option |
| Compatible holder family | EZ1680 for M10x1 EZ1080 sensors |
| Measurement principle | Non-contact eddy current |
|
SYSTEM POSITION
8 mm / M10x1 / 50 mm / 1 m CABLE
|
The sensor is the machine-facing element of an AMS EZ 1000 eddy current chain. Its tip is installed at the required gap from a suitable metallic target; the integral cable connects into the matching extension-cable and converter arrangement. Sensor, extension cable and converter must be treated as one calibrated system length. |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| EZ1080-05-00-010 | M10x1; 50 mm case; 1.0 m cable | This model |
| EZ1080-02-00-050 | M10x1; 20 mm case; 5.0 m cable | Different reach and cable length |
| EZ1081 | 8 mm sensor with armored cable | Different mechanical protection |
| EZ1082 | 3/8-24 UNF sensor | Imperial thread |
| EZ1680 | Probe holder for EZ1080 M10x1 | Installation accessory |
| 01 | Confirm the complete ordering code, mounting thread, case reach and required total system length. |
| 02 | Protect the sensor tip and integral cable from impact, sharp bends and tension during handling. |
| 03 | Set the operating gap against the actual target material and avoid contact through the full shaft movement. |
| 04 | Route the sensor cable away from power wiring and use only the matching extension/converter arrangement. |
| 05 | After installation, verify gap voltage, polarity, signal stability and machine clearance before returning to service. |
|
