5X00226G04 OVERVIEW ARCHITECTURE APPLICATIONS FAQ RELATED CONTACT
OVATION™ CONTROL PLATFORM
5X00226G04
OCR1100 I/O Interface Card

An I/O interface module within the Ovation OCR1100 controller architecture, supporting the controller's connection to local and remote Ovation and Q Line I/O.
CONTROLLER FAMILY
OCR1100

ROLE
I/O INTERFACE

ARCHITECTURE
REDUNDANT

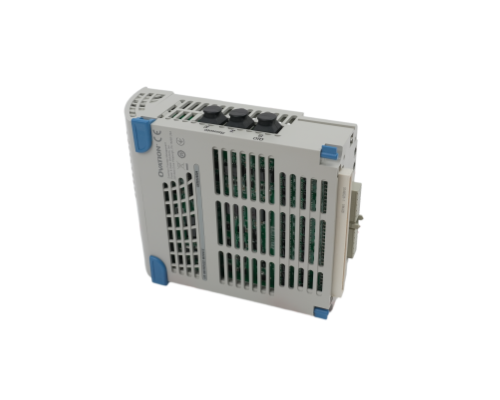

PRODUCT IMAGE

BUS
CompactPCI

I/O
LOCAL / REMOTE

SYSTEM
OVATION
SYSTEM ARCHITECTURE
Where 5X00226G04 Fits
The I/O interface role connects the controller architecture with the field-side I/O structure.
01
Controller Link
The IOIC module forms the I/O interface portion of the OCR1100 controller assembly.
02
Local / Remote I/O
The OCR1100 architecture supports local and remote Ovation I/O interfaces.
03
Redundant Design
OCR1100 controllers can operate in primary and backup configurations with automatic failover.
04
Process Continuity
The controller architecture is designed for mission-critical process control and data acquisition.
OCR1100 PLATFORM
Core System Scale
Originated points Up to 32,000
Process control tasks Up to 5
Loop execution range 10 ms – 30 s
Bus structure CompactPCI
COMMUNICATION & I/O
Connected Control
NETWORK
4 × 10/100 Mb Ethernet

PORT OPTIONS
4 RJ45 / 1 RJ45 + 3 SFP

SUPPORTED I/O ENVIRONMENT
Local Ovation I/O · Remote Ovation I/O · Q Line I/O · Foundation Fieldbus · PROFIBUS · DeviceNet · Virtual I/O

SYSTEM INTERFACES
Modbus/TCP · Allen-Bradley PLCs · GE Mark V/VI · MHI turbine control · Toshiba turbine control
CONTROL-CONTINUITY SCENARIOS
When 5X00226G04 Becomes Critical
SYSTEM CONTEXT
Ovation Process Control
Used within an OCR1100 controller architecture serving process-control, data-acquisition and I/O functions.
SEARCH TRIGGER
I/O Interface Fault
Engineers may search this exact part number when the controller's I/O interface path becomes a suspected source of loss of communication or control availability.
DOWNTIME RISK
Loss of I/O Availability
A failed I/O interface can affect the controller's ability to communicate with the associated I/O architecture, making rapid replacement important in critical plants.
REDUNDANT CONTROLLER LOGIC
Built Around Continuity
The OCR1100 architecture allows primary and backup controllers to maintain synchronized application data for automatic failover.
PRIMARY
CONTROL
↔
SYNC
BACKUP
READY
→
FAILOVER
Control processor failure · Network controller failure · I/O interface failure · Processor power loss · Processor reset
PURCHASE-FOCUSED FAQ
5X00226G04 Buying Questions
Why does 5X00226G04 need to be matched with the OCR1100 controller architecture?
5X00226G04 is identified by Emerson as the OCR1100 Ovation Controller IOIC Card. It forms the I/O interface portion of the controller assembly rather than serving as the standalone CPU card.
Can 5X00226G04 replace the CPU card in an OCR1100 controller?
No. The Emerson architecture identifies 5X00481G04 as the OCR1100 CPU Card and 5X00226G04 as the IOIC Card. They perform different functions within the two-module controller arrangement.
When should 5X00226G04 be checked during an OCR1100 I/O communication fault?
When controller diagnostics indicate an I/O interface problem, the IOIC portion should be considered alongside the connected I/O architecture, controller redundancy state and communication path.
What makes 5X00226G04 important in a redundant OCR1100 installation?
The OCR1100 supports redundant controller operation, with one processor in control and the partner maintaining synchronized data in backup mode. The I/O interface is one of the redundant controller architecture elements.
How can 5X00226G04 affect plant downtime when the I/O interface is unavailable?
Because the OCR1100 performs data acquisition and control through its I/O architecture, an I/O interface fault can become a control-availability concern. In redundant configurations, automatic failover is designed to transfer control to the backup processor when qualifying failures occur.
