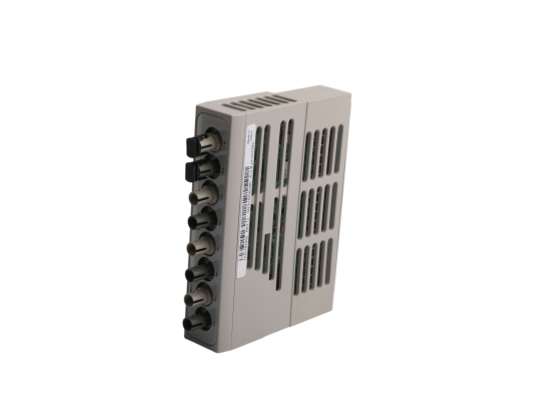

OVATION HIGH-SPEED ANALOG INPUT
5X00070G03
14-Bit High-Speed Analog Input Electronics Module
|
 Ovation E-Module
|
|
SIGNAL TYPE
Voltage Analog Input
|
CONVERSION
50 / 60 Samples/s
|
MAIN POWER
3.2 W Typical
|
PERSONALITY
1C31227G02
|
|
TECHNICAL PROFILE
Built for Fast Analog Acquisition
The 5X00070G03 belongs to the Ovation high-speed analog input family and is configured for voltage signals. Its paired personality module is 1C31227G02.
Signal Focus
±5 V and ±10 V voltage input applications requiring high-speed 14-bit acquisition.
|
|
|
WHERE IT MATTERS
Fast Voltage Signals in Ovation
In an Ovation I/O architecture, the 5X00070G03 is used where eight voltage inputs must be acquired through the high-speed analog input subsystem. The ±5 V / ±10 V range makes it suitable for compatible plant instrumentation and control signals.
|
WHEN REPLACEMENT BECOMES URGENT
Keep the I/O path stable
A failed or unstable analog input path can leave the control system without a dependable process measurement. In a running plant, prolonged loss of an essential input can increase troubleshooting time and may contribute to reduced process availability or an operational shutdown.
Ovation I/O Analog Voltage High Speed
|
|
OVATION HIGH-SPEED ANALOG FAMILY
Related Module Configuration
|
||||
|
||||
|
Matching personality module for 5X00070G03: 1C31227G02
|
|
QUOTATION DESK
Check Your Replacement Match
To speed up a quotation, please provide:
|
|||||||
|
01 · Why would 5X00070G03 be selected instead of a lower-speed analog input?
5X00070G03 is part of the Ovation high-speed analog input family and provides 14-bit conversion with 50 or 60 samples per second. It is intended for compatible voltage-input applications where the high-speed architecture is required.
|
02 · Which personality module pairs with 5X00070G03?
The listed pairing is 1C31227G02. The electronic module and personality module work together as the high-speed analog input configuration.
|
|
03 · What voltage range does 5X00070G03 handle?
The module is designated for ±5 V and ±10 V voltage inputs. The selected range should match the plant signal configuration and the corresponding Ovation I/O setup.
|
04 · What should be checked when replacing 5X00070G03 during a plant outage?
Confirm the part number, voltage range, channel requirement, personality module pairing and existing Ovation configuration before installation. This reduces the risk of fitting a visually similar module with a different signal function.
|
|
05 · What operational risk can occur if 5X00070G03 is unavailable when an analog input fails?
If an essential voltage measurement cannot be restored, operators may lose dependable process feedback from the affected channels. For a running Ovation-controlled process, extended loss of a required measurement can increase troubleshooting time and may affect process availability.
|
|
