When an S7-1500 Station Needs PROFIBUS DP Again

A closer look at the role of the Siemens CP 1542-5 when a SIMATIC S7-1500 control station needs a dedicated PROFIBUS DP connection.

The Controller Is There. The PROFIBUS Connection Is the Question.

In industrial maintenance, a communication problem can look very different from a controller failure. The S7-1500 CPU may remain at the center of the control system, while the issue is concentrated at the communication layer connecting the station to an existing PROFIBUS DP network.

This creates a very specific purchasing requirement. The replacement is not simply “a Siemens communication module.” The engineering team needs the communication processor that matches the S7-1500 architecture and the PROFIBUS function already used by the station.

This is the role of the 6GK7542-5FX00-0XE0, the Siemens CP 1542-5. It provides a PROFIBUS connection for SIMATIC S7-1500 systems and supports PROFIBUS DP communication as well as additional communication functions used within the S7-1500 environment.

A Small Module Can Define the Communication Path

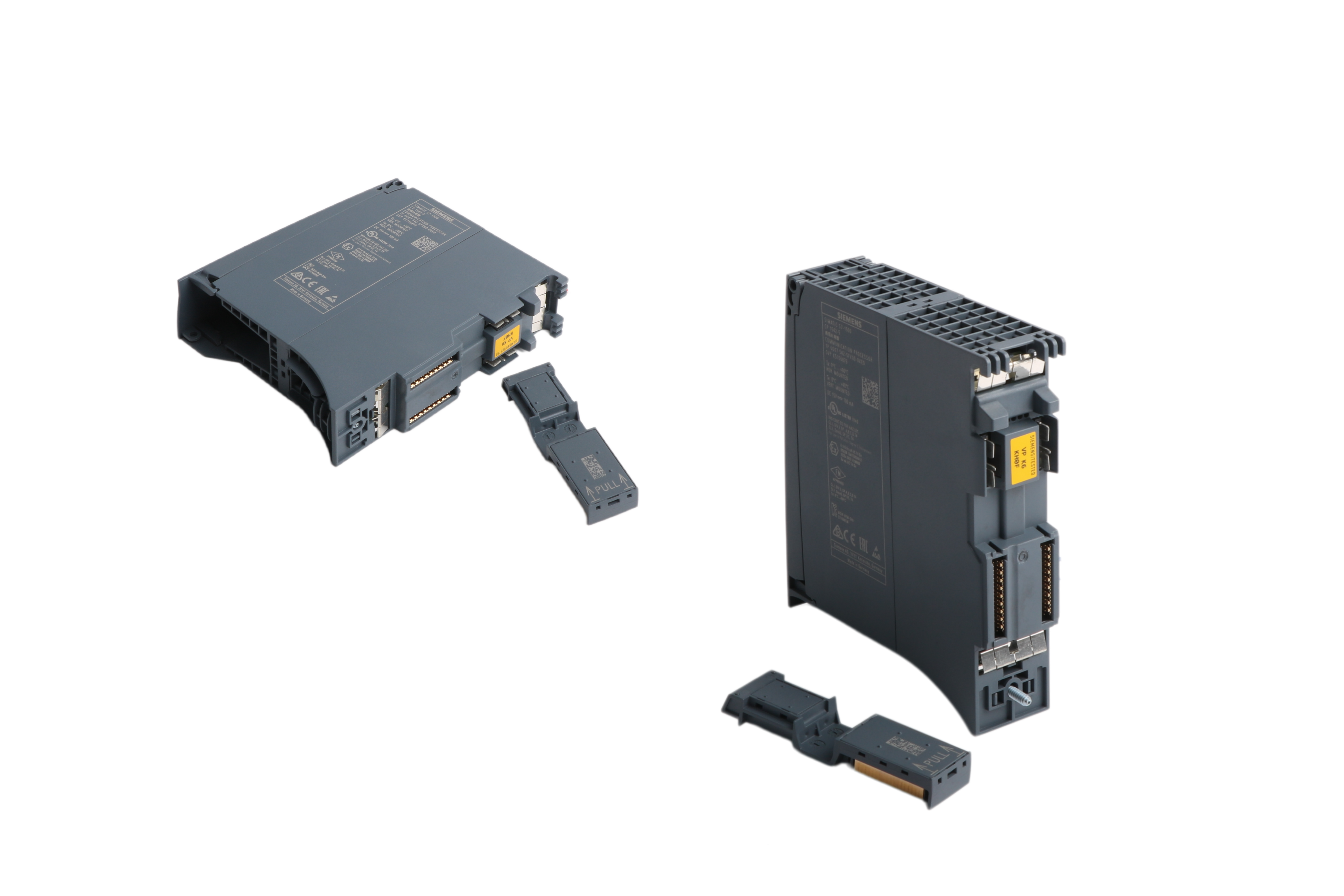

The CP 1542-5 is designed as a compact S7-1500 communication processor. Its physical connection to PROFIBUS is provided through a 9-pin Sub-D interface using RS-485.

The supported PROFIBUS transmission range extends from 9.6 kbit/s to 12 Mbit/s. This gives the module a defined position in PROFIBUS DP architectures where the S7-1500 station needs to exchange process data with PROFIBUS devices.

The important point for maintenance teams is that the CP is not an interchangeable Ethernet interface. It is designed around a specific communication task inside the S7-1500 system.

What the CP 1542-5 Brings to the Station

Looking only at the connector can make the CP 1542-5 appear to be a simple network interface. Its role is broader.

Siemens specifies the module for connection of the SIMATIC S7-1500 to PROFIBUS DP, with DPV1 master or DP device operation. It also supports S7 communication, PG/OP communication, time synchronization and diagnostics.

That combination is important when a replacement has to preserve the communication behavior of an established automation station rather than simply provide a physical network connection.

The Purchase Usually Starts With a Part Number

Industrial automation purchasing is rarely just about finding a product category. A maintenance engineer may already know the exact Siemens article number, the quantity required and the date when the component is needed.

AMIKON Limited works with this type of requirement, supplying industrial automation components for maintenance, replacement and control-system projects. The sales process is centered around the customer's exact part number and practical delivery requirements.

A Replacement Part Has to Be Traceable Through the Order

For a component such as the Siemens 6GK7542-5FX00-0XE0, the part number is central to the purchasing process. Warehouse receiving and order preparation therefore need to remain connected to the sales request.

AMIKON's warehouse workflow supports the handling of industrial automation components from receiving through order preparation and shipment.

Similar Product Families Still Require Exact Matching

Industrial automation families can contain communication processors, interfaces and modules with closely related names but different functions.

Keeping the complete article number at the center of the quotation reduces the risk of treating similar-looking products as interchangeable. For urgent maintenance purchases, that simple step can make the process much clearer.

Delivery Becomes Part of the Engineering Requirement

When a communication module is required for a maintenance window, delivery timing can be as important as the part number itself.

AMIKON supports international shipment through E-packing, FedEx, EMS, TNT, DHL and UPS, allowing customers to specify their destination and required date when requesting a quotation.

In This Case, the Communication Processor Is the Detail That Matters

The Siemens 6GK7542-5FX00-0XE0 has a focused role: connecting a SIMATIC S7-1500 station to PROFIBUS DP through the CP 1542-5. Its supported communication functions extend beyond the physical network connection, making the exact model relevant when an existing station needs replacement or additional capacity.

For maintenance teams, this is why a precise part-number inquiry is more useful than a broad request for a Siemens communication module. It gives the purchasing process a clear starting point and keeps the replacement requirement tied to the actual automation architecture.

If your project requires 6GK7542-5FX00-0XE0, AMIKON can assist with the quotation and international shipment process.

Need Siemens 6GK7542-5FX00-0XE0?

Send the part number, quantity, destination and required date. AMIKON's sales team will respond to your automation component requirement.
