01 / INTRO
THE
CONTEXT |
When control and safety functions
share one engineering architecture. Modern automation projects increasingly bring together machine control, process logic, motion and safety functions. This changes the engineering challenge: the controller must fit not only the hardware requirements of a project, but also the way the application will be structured and maintained.
The Allen-Bradley 1756-L73S sits within the GuardLogix 5570 platform, bringing standard control and safety functions into a coordinated automation architecture.
|
|
PRODUCT FOCUS / 1756-L73S

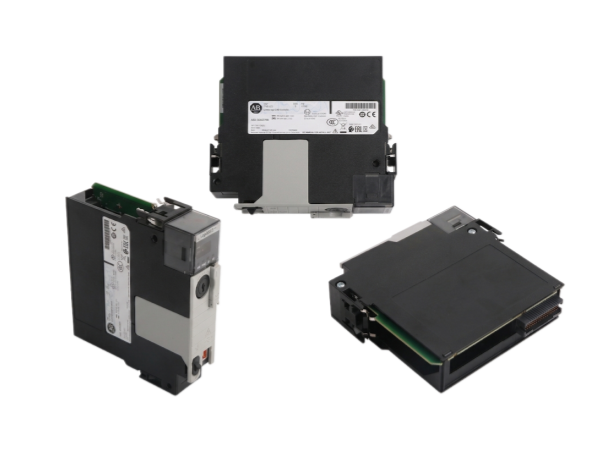

A GuardLogix Controller
Built for Integrated Control The 1756-L73S belongs to the GuardLogix 5570 family, combining standard control and safety control within a coordinated automation architecture.
|
|
SAFETY SIDE
Ladder Diagram
For the safety task, the GuardLogix 5570 family uses Ladder Diagram. This establishes a dedicated programming environment for safety-related logic.
|
STANDARD SIDE
Multiple Languages
Standard tasks support Ladder Diagram, Structured Text, Function Block Diagram and Sequential Function Chart.
|
|
AMIKON / SUPPLY SUPPORT
From Product Search
to Industrial Delivery AMIKON Limited supports industrial customers with a broad range of automation components across multiple manufacturers and application areas.
Fast response · Global service · Industrial automation
|
|
Commissioning is only one stage in the life of an automation application. Once a system is operating, engineers may need to diagnose, modify or expand the control program.
This is where application structure becomes particularly important. Separating standard functions from safety functions gives engineering teams a clearer way to understand how the system has been organized.
For replacement or expansion projects, the existing controller architecture, memory requirements, safety implementation and motion requirements should therefore be considered together.
|
ENGINEERING SEQUENCE
DEFINE → STRUCTURE → TEST → MAINTAIN
A well-organized control environment can become an important part of long-term engineering practice.
REPLACEMENT CHECK
Review the existing application structure, safety configuration and system requirements before selecting replacement hardware.
|
|
CONTROL
GUARDLOGIX
|
SAFETY
INTEGRATED
|
PROGRAMMING
MULTI-LANGUAGE
|
PLATFORM
5570 SERIES
|
|
THE POINT
Controller selection should consider the wider application structure.
|
THE EVIDENCE
The platform provides distinct environments for standard and safety tasks.
|
THE CONCLUSION
Programming structure can be as important as controller capacity in complex applications.
|
|
AMIKON LIMITED
Looking for 1756-L73S?
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
|
REQUEST A QUOTE WHATSAPP |
