A process signal is behaving strangely. Is the module really at fault?

A valve fails to respond as expected. The controller appears to be issuing a command, but the process does not follow. Replacing the output module may seem like the quickest fix, yet the actual cause could be a loose connection, an open wire, incorrect configuration, or a problem with the field device.

A more useful starting point is to compare the commanded output, measured loop current, and field-device response. These observations help narrow the fault before a replacement is considered.

Start With the Loop, Not the Spare Part

In a conventional analog control loop, the 4–20 mA signal carries the output command to a compatible field device. If the response is abnormal, check the measured current, field wiring and terminals, supply conditions, channel status, and the connected device before concluding that the output module has failed.

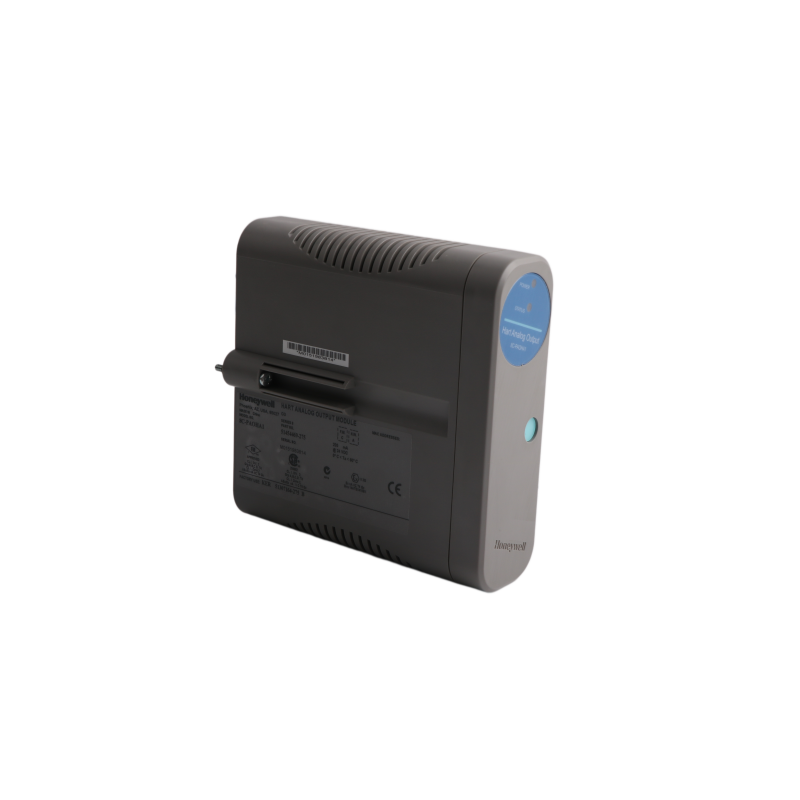

The Honeywell 8C-PAOHA1 supports open-wire detection. An open field wire can be reported as a channel soft failure, providing a useful diagnostic clue. That indication should be considered alongside physical checks rather than treated as automatic proof of a defective module.

Keeping a record of channel status, current measurements, wiring checks, and the field-device response can help technicians compare findings and avoid unnecessary component changes.

What HART Adds to the Picture

The analog signal and HART communication have different roles. The 4–20 mA signal carries the control command, while HART adds digital communication with compatible smart field instruments.

Depending on the instrument and system configuration, digital communication can provide additional device variables and status. This may help distinguish a field-instrument issue from an output-loop problem. HART does not replace electrical measurements or physical wiring checks.

Confirm the installed IOTA. The 8C-PAOHA1 is associated with the 8C-TAOXA1 non-redundant IOTA and the 8C-TAOXB1 redundant IOTA. Verify the actual assembly before ordering.

The per-channel FAILOPT setting can be configured to hold the last output value or shed to a safe value. If the module electronics fail, the output goes to zero. Review the configured behavior for the application.

Check output requirements, connected-device compatibility, wiring, and redundancy arrangements. Similar model codes do not guarantee interchangeability in every installation.
