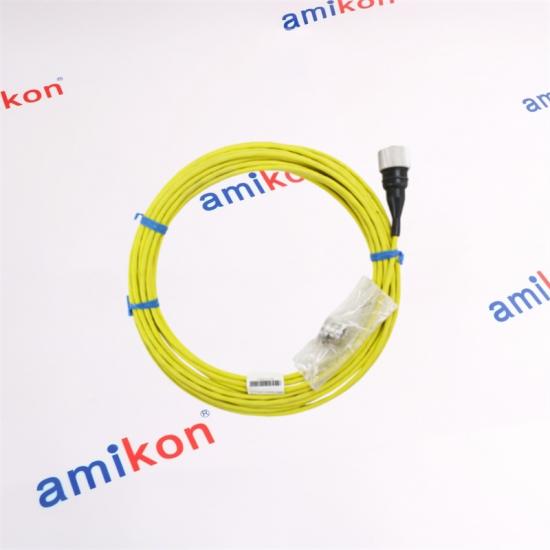

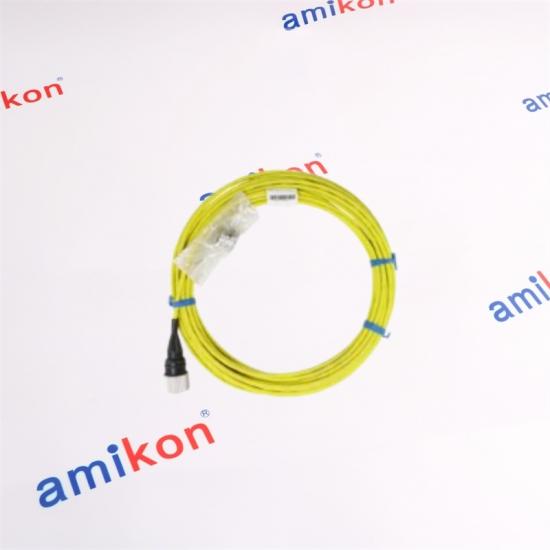

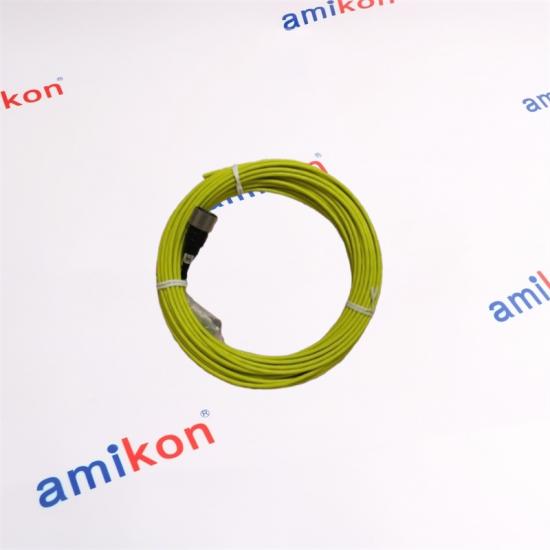

BENTLY NEVADA • INTERCONNECT CABLE
CB2W100-064
A dedicated interconnect cable configuration for vibration monitoring connections, combining a splash-proof two-socket interface with a shielded twisted-pair cable construction.
64 FT / 19.5 M 20 AWG SHIELDED
|
KEY CONFIGURATION
CB2W100 SERIES
CONNECTOR
MIL-C-5015, 2 Socket CABLE CONSTRUCTION
20 AWG Twisted Pair JACKET
Yellow Teflon® |
|
01
Splash-Proof Interface
The connection uses a MIL-C-5015 two-socket splash-proof configuration designed for industrial monitoring connections.
|
02
Shielded Signal Path
The cable uses a 20 AWG twisted pair with shielding to support the signal connection between the transducer and monitoring equipment.
|
03
Extended 64 ft Reach
The -064 configuration provides a cable length of 64 feet, equivalent to approximately 19.5 metres.
|
|
TECHNICAL PROFILE
CB2W100-064
The CB2W100 family is used as an interconnect cable within vibration monitoring arrangements. The -064 configuration specifies the 64-foot cable length.
CONFIGURATION
CB2W100 + 064 length option
|
|
|
Machine Monitoring
CB2W100-series cables are used in vibration monitoring arrangements where a sensor signal must be carried between field equipment and monitoring hardware. In a Bently Nevada 1900/65A application, CB2W100-xx is used as the sensor cable associated with the Velomitor CT.
|
When Cable Replacement Matters
A damaged connector, compromised cable condition, intermittent signal path or an incorrect cable length can interrupt the intended connection between a vibration transducer and monitoring equipment. Selecting the correct CB2W100 configuration helps restore the required connection arrangement.
|
|
SUPPLY SUPPORT
Ready for Industrial Requirements
|
GLOBAL SERVICE
20+ Languages Served
Customers across 149 countries and regions, supported by sales operations and distribution resources in the UK and USA.
Our sales team responds actively to spare-part enquiries, helps evaluate replacement requirements and works with customers on practical delivery arrangements.
|
|
149
COUNTRIES & REGIONS
20+
LANGUAGES
|
A Practical Partner for Automation Spare Parts
Our sales office focuses on responsive communication for industrial automation spare-part enquiries. We actively work with customers to identify practical replacement options, discuss delivery requirements and support procurement decisions.
From product selection to comparing alternative solutions, our team is available to communicate technical details and commercial requirements with a clear and efficient approach.
|
|
01 — What type of product is CB2W100-064?
CB2W100-064 is an interconnect cable configuration in the CB2W100 series used for vibration monitoring connections.
|
|
02 — What connector configuration does CB2W100-064 use?
The cable uses a MIL-C-5015, two-socket, splash-proof premium connection interface and is isolated to a blunt-cut termination.
|
|
03 — What is the cable length of the -064 configuration?
The -064 configuration provides a 64-foot cable length, which is approximately 19.5 metres.
|
|
04 — What cable construction is specified for CB2W100-064?
It uses a 20 AWG twisted pair with shielding and a yellow Teflon® jacket.
|
|
05 — Which monitoring arrangement can use CB2W100-series cables?
The CB2W100-xx cable family is used as a sensor cable in vibration monitoring arrangements such as a 1900/65A system with a Velomitor CT transducer.
|
|
