01 / PRODUCT IDENTIFICATION

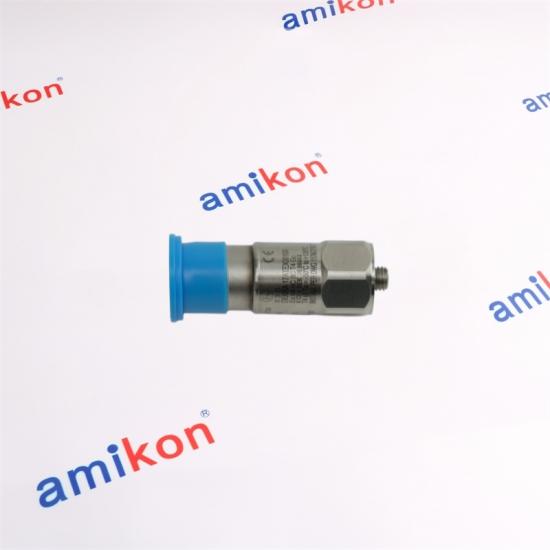

Case-Mounted IEPE Accelerometer
|
| Bently Nevada AM3100T2-Z2-00 is a general-purpose IEPE accelerometer for casing vibration and condition-monitoring measurements. The ordered build provides 100 mV/g nominal sensitivity, an 80 g peak measurement range, top-exit connection, case isolation and a 1/4-28 mounting thread. The Z2 execution is intended for the corresponding Zone 2 installation arrangement. |
INSTALLED FAMILY
Bently Nevada Accelerometer Family
|
|
+
|
02 / FUNCTIONAL DESCRIPTION
Signal or Power Role in the Installed System
|
| FUNCTIONAL PATH | The accelerometer converts casing acceleration into a low-impedance IEPE voltage signal. A compatible constant-current signal conditioner or monitor supplies the sensor and reads the AC vibration component. Mounting stiffness, surface condition, connector routing and cable noise directly affect the usable frequency response. |
|
+
|
03 / TECHNICAL SPECIFICATIONS
Key Configuration Details
|
|
+
|
04 / COMPATIBILITY AND RELATED MODELS
Select by Function, Suffix and Installed Platform
|
|
+
|
05 / MODEL COMPARISON AND REPLACEMENT GUIDE
Replacement Checks Before Shutdown
|
| Identity: match the complete suffix and style. | Connection: verify the base, terminal block, adapter and field wiring. | System fit: confirm platform release, channel behavior and environmental execution. |
| Contact us within seven days if a concern appears after delivery. | Return the item in its original condition with the reason stated. Resolution follows receipt and inspection. | Return-related transport costs are arranged by the buyer. |
|
+
|
06 / TECHNICAL FAQ
Five Checks Buyers Should Complete
|
| 01 |
AM3100T2-Z2-00 - What is the most important ordering check?
Match the complete model, suffix code and style with the installed unit; the base model alone is not sufficient.
|
| 02 |
AM3100T2-Z2-00 - Can a related model be used as a direct substitute?
Only after channel count, signal type, isolation, termination, environmental execution and supported system release are confirmed.
|
| 03 |
AM3100T2-Z2-00 - What should be recorded before removal?
Record slot position, terminal assignment, field polarity, connected base or terminal block, and all visible suffix and style markings.
|
| 04 |
AM3100T2-Z2-00 - What should be tested after installation?
Verify seating, wiring, power and diagnostics, then commission each affected channel under controlled conditions.
|
| 05 |
AM3100T2-Z2-00 - What should be sent with a quotation request?
Send the full catalog code, quantity, required condition, destination and clear photos of the unit label and front connection area.
|
|
+
|
