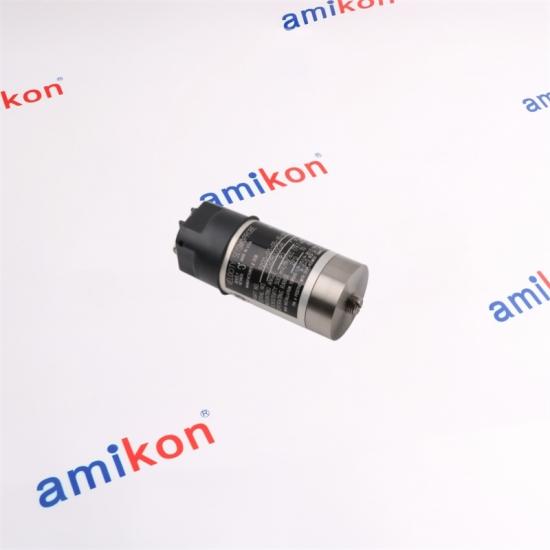

SEISMOPROBE VELOCITY TRANSDUCER
HIGH-TEMPERATURE / TWO-WIRE / MOVING-COIL
74712-06-12-04-04
A high-temperature, two-wire velocity transducer for measuring absolute vibration of bearing housings, machine casings and structures.
CONFIGURATION 06 / 12 / 04 / 04 • HIGH-TEMPERATURE SEISMOPROBE
|
|
FAMILY RELATION
9200 → 74712
The 9200 and 74712 share the Seismoprobe velocity-transducer concept. The key family distinction is temperature capability: the 74712 extends the temperature range for applications requiring the high-temperature version.
|
|
|
AMIKON SUPPORT
Bring the exact
configuration into focus. For quotation requests, please provide the part number, quantity, destination, required date and machine/system application.
|
|
|
AFTER-SALES
Return / Replacement
|
01 Please contact us within 7 days if you have any question after you receiving the items.
02 The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns.
03 The buyer is responsible for all the shipping cost incurred.
|
|
Can 74712-06-12-04-04 be selected when the installation temperature is above the 9200 range?
Yes. The 74712 is the high-temperature member of the 9200/74712 Seismoprobe family and is qualified from −29°C to +204°C, while the 9200 is qualified from −29°C to +121°C.
|
What does the 74712-06-12-04-04 configuration specify for the mounting base?
The “12” mounting-base option is an isolated circular base using a 1/2-20 UNF-2A stud. This isolated base is also consistent with the agency-approval configuration used by the final “04” option.
|
|
Does 74712-06-12-04-04 use a side-mounted connector?
Yes. In the 74712 configuration structure, connector option “04” denotes the side-mounted connector arrangement.
|
What signal level should be expected from 74712-06-12-04-04 during specification matching?
The family sensitivity is 20 mV/mm/s (500 mV/in/s), ±5%, when properly terminated and oriented at the calibration angle. The specified calibration load is 10 kΩ.
|
|
What should be checked before replacing an existing 74712-06-12-04-04?
Confirm the complete four-part configuration, mounting orientation, isolated-base requirement, side connector arrangement, temperature envelope, monitoring interface and cable arrangement. The 74712 high-temperature configuration does not use the integral hardline cable options available for the 9200.
|
|
