Model : 330881-BR-04-150-06-02
Original and brand new
12-month warranty
Shipping worldwide
Q Contact Info
Q Product Applications
lContinuous shaft vibration monitoring on centrifugal compressors – gives operators 24/7 data to schedule balancing or bearing changes before damage occurs.
lThrust-position protection on large gas turbines; the 150 mil (3,8 mm) linear range alarms if the rotor shifts toward the compressor or governor end.
lGap measurement in hydro-electric turbines: the 150 mil range keeps the turbine runner centered in the labyrinth seal, cutting water leakage and pad wear.
Q Product Summary

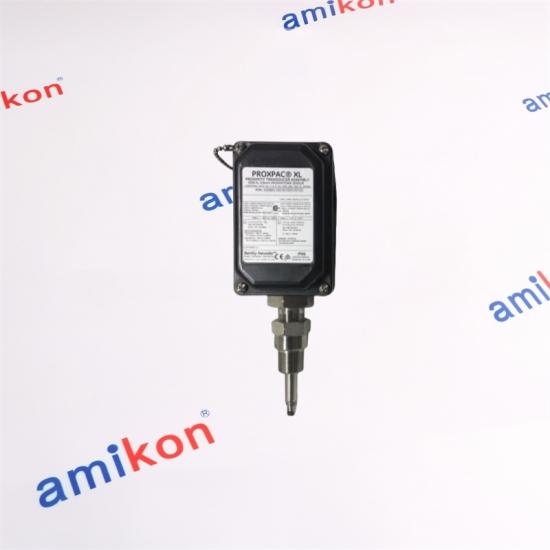

330881-BR-04-150-06-02 is a Bently Nevada PROXPAC® XL proximity transducer that outputs a –10 V to 0 V signal over 0–150 mil (0–3,8 mm) of shaft movement. It runs on –24 V dc, works from –34 °C to +100 °C, and drops straight into 3300 monitors—ideal for vibration, thrust or gap checks on compressors, turbines and pumps without extra hardware.
Q Amikon
We are spare parts specialists in industrial automation
Inventory: A large number of new and discontinued parts with a wide range of brand names.
Economic Benefits: Competitive Prices and Specific Distributor Discounts
Reliability: Each product is tested and guaranteed for at least 12 months.
Speed: Rapid response, efficient delivery.
Professional: Solid business organization, well-trained engineers.
International: Global network of partners and preferred suppliers
Q Recommend
|
SIEMENS |
TRICONEX |
BENTLY NEVADA |
|
6ES7951-0KF00-0AA0 |
3504E |
330500-00-20 |
|
6AV3503-1DB10 |
3700A |
170133-090-00 |
|
6ES7421-1BL01-0AA0 |
3704E |
3500/32M 149986-02 |
|
6ES7511-1AK01-0AB0 |
3706A |
1900/65A 172323-01 |
|
6ES5948-3UR23 |
3721 |
330180-X0-05 |
|
500-033260 |
4210 |
125720-01 |
|
6ES7221-1BH32-0XB0 |
4351B |
125760-01 |
|
6ES7131-4BD01-0AA0 |
8312 |
125768-01 |
|
6ES7532-5HF00-0AB0 |
3503E |
128229-01 |
|
6AV6643-0DD01-1AX1 |
3604E |
128240-01 |
|
6ES7222-1BH32-0XB0 |
3501E |
133396-01 |
|
6ES5465-4UA12 |
3805EN |
146031-01 |
|
HIMATRIX F35 |
8C-TDOD51 |
MVI56E-MNETR |
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
