Model : 330881-BR-04-110-06-02
Original and brand new
12-month warranty
Shipping worldwide
Q Contact Info
Q Product Applications
lContinuous shaft vibration monitoring on centrifugal compressors – gives operators 24/7 data to schedule balancing or bearing changes before damage occurs.
lThrust-position protection on large gas turbines; the 110 mil (2,8 mm) linear range alarms if the rotor shifts toward the compressor or governor end.
lSpeed and key-phasor measurement on geared pumps – the 5 mm probe tip sees every key-way and feeds a clean TTL pulse to the plant PLC.
Q Product Summary

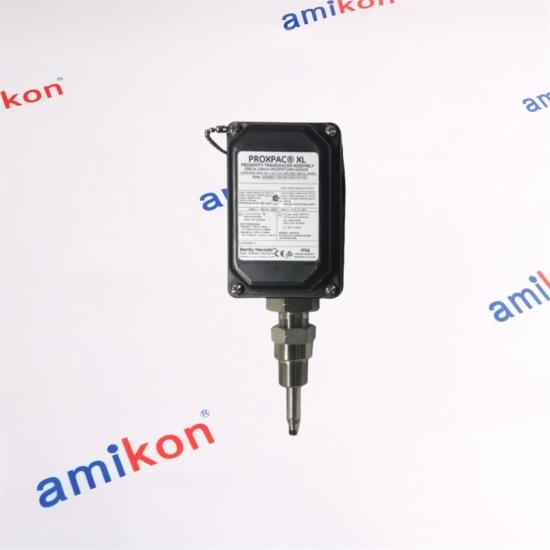

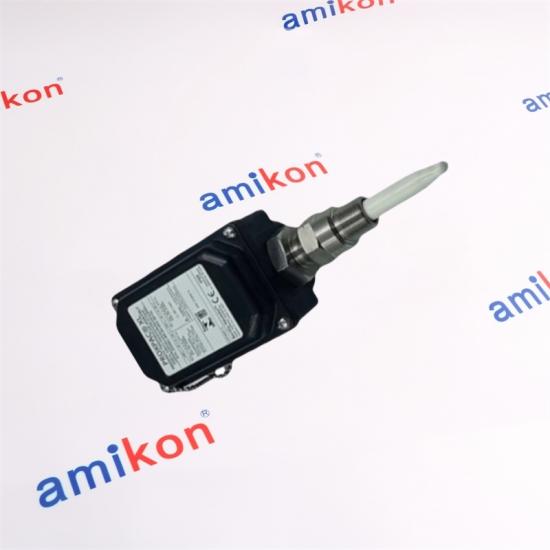

330881-BR-04-110-06-02 is a Bently Nevada PROXPAC® XL proximity transducer that outputs a –10 V to 0 V signal over 0–110 mil (0–2,8 mm) of shaft movement. It runs on –24 V dc, works from –34 °C to +100 °C, and drops straight into 3300 monitors—ideal for vibration, thrust or speed checks on compressors, turbines and pumps without extra hardware.
Q Amikon
We are spare parts specialists in industrial automation
Inventory: A large number of new and discontinued parts with a wide range of brand names.
Economic Benefits: Competitive Prices and Specific Distributor Discounts
Reliability: Each product is tested and guaranteed for at least 12 months.
Speed: Rapid response, efficient delivery.
Professional: Solid business organization, well-trained engineers.
International: Global network of partners and preferred suppliers
