MACHINERY CONDITION MONITORING
3300 XL 8 mm SERIES
|
PROXIMITY PROBE
330104-04-09-10-01-05

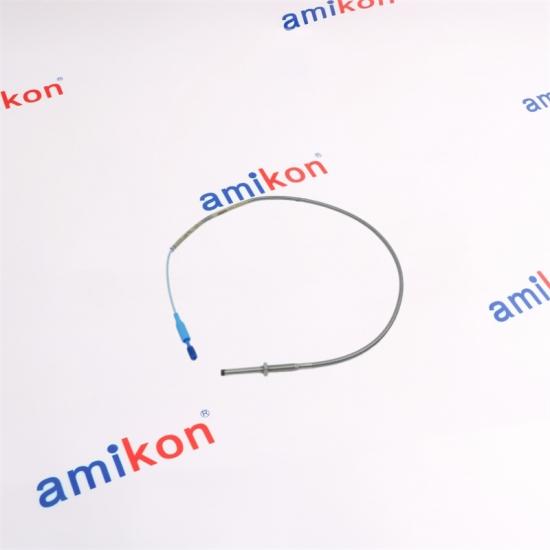

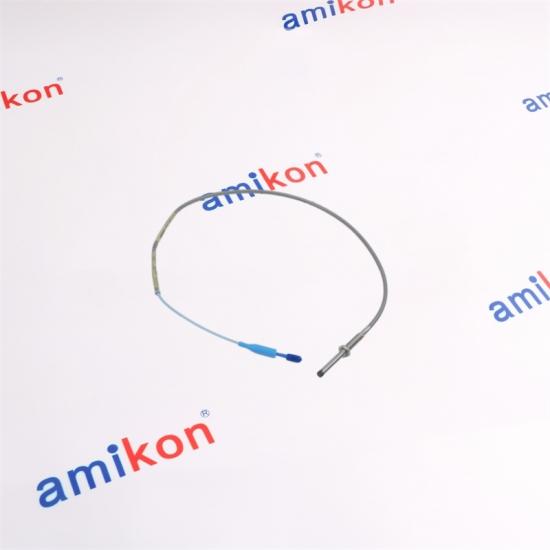

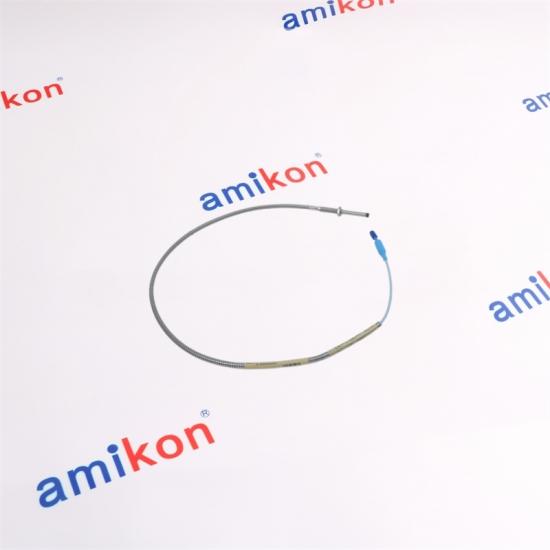

3300 XL 8 mm Proximity Probe · M10 × 1 Thread · Armored Configuration
|
PRECISION
EDDY CURRENT
NON-CONTACT
|
|
PROBE DIAMETER
8.0 mm
0.31 in nominal tip diameter
|
LINEAR RANGE
2.0 mm
80 mils nominal
|
SENSITIVITY
7.87 V/mm
200 mV/mil nominal
|
CABLE LENGTH
1.0 m
3.3 ft configuration
|
|
01
3300 XL 8 mm Probe
The physical sensing element positioned toward the conductive target.
|
→
|
02
3300 XL Extension Cable
Connects the probe to the compatible Proximitor sensor within the measurement chain.
|
→
|
03
3300 XL Proximitor Sensor
Provides the electronic interface for converting probe target distance into the measurement output.
|
|
MEASUREMENT TYPE
Eddy Current
|
SIGNAL BASIS
Target Distance
|
DYNAMIC USE
Vibration
|
POSITION USE
Displacement
|
|
APPLICATION FOCUS
Non-contact machine
condition measurement |
|
|
03 / COMMERCIAL SUPPORT
Need the right
configuration? Send the complete part number when requesting a quotation or replacement check.
|
|
| 01 |
Can 330104-04-09-10-01-05 be treated as a complete monitoring system by itself?
No. The part is the probe component of the 3300 XL 8 mm proximity transducer system. A compatible extension cable and Proximitor Sensor are required to form the complete measurement chain.
|
| 02 |
What should be checked when replacing 330104-04-09-10-01-05 in an existing installation?
The replacement should be checked against the existing probe thread, physical dimensions, cable length, connector arrangement, armor configuration and the compatible 3300 XL system components before installation.
|
| 03 |
Why does 330104-04-09-10-01-05 use a 1.0 m cable configuration?
The 1.0 m option provides a defined probe-to-connection length within the 3300 XL 8 mm architecture. The selected cable length should match the physical installation and the associated Proximitor configuration.
|
| 04 |
What measurement characteristics make 330104-04-09-10-01-05 suitable for machinery monitoring?
The 3300 XL 8 mm system provides a nominal sensitivity of 7.87 V/mm (200 mV/mil) and a nominal 2.0 mm (80 mil) linear range, allowing target-distance changes to be represented as an electrical signal.
|
| 05 |
Is 330104-04-09-10-01-05 interchangeable with every 3300 XL probe configuration?
The 3300 XL family provides interchangeability within compatible system configurations, but physical thread, mounting style, cable length, armor and installation requirements still need to match the application.
|
