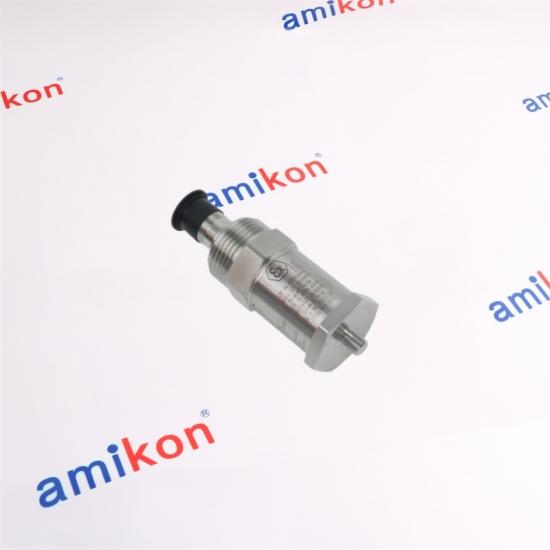

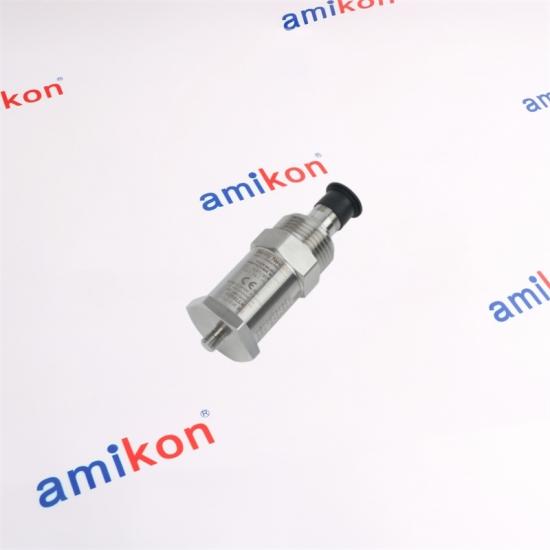

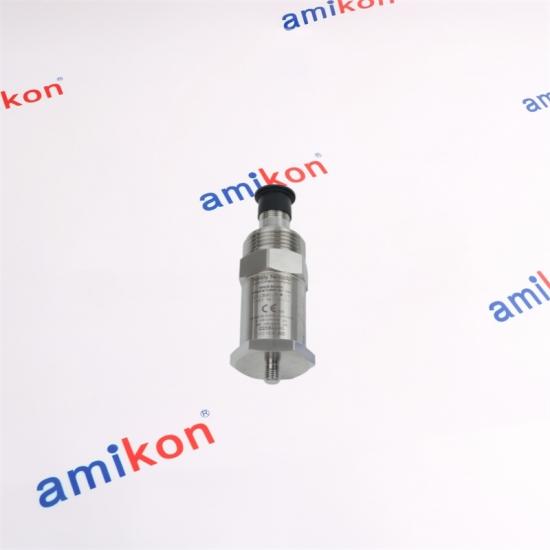

Velomitor CT Velocity Transducer for low-frequency casing vibration measurement
|
SENSOR FAMILY
190501
Low-frequency velocity sensing for casing-mounted machinery monitoring.
Application focus
Cooling tower and air-cooled heat-exchanger fan assemblies operating at or above 90 rpm. |
|
◌
＋
TECHNICAL PROFILE
Measurement & Construction
|
INSTALLATION GEOMETRY
Stable casing measurement
Mounting torque: 4.5 N·m ±0.6 N·m
Mounting angle: Any orientation Transverse response: <5% of axial sensitivity ENVIRONMENT
Shock limit: 5000 g peak maximum
Humidity: 100% condensing, non-submerged Internal electronics are isolated from the case. |
|
APPLICATION LOGIC
Why the CT configuration matters
The 190501 family is specifically tuned toward lower-frequency velocity measurement. Its frequency response extends downward to 1.5 Hz at the ±3 dB specification, supporting fan assemblies that can run at relatively low rotational speeds.
Typical target equipment includes cooling tower and air-cooled heat-exchanger fan assemblies operating at or above 90 rpm.
|
VELOMITOR FAMILY / SYSTEM RELATION
190501 vs. related velocity sensing options
The 190501 should therefore be selected around the required low-frequency response and the actual machine mounting location rather than treated as a generic substitute for every velocity sensor.
|
|
CONFIGURATION BREAKDOWN
190501-12-00-01
|
|
AMIKON LIMITED
Need the exact
190501 configuration? Send us the part number, quantity, destination and required date. Our sales team can help verify the requested configuration before quotation.
Sales Manager: Miya zheng
|
DIRECT CONTACT
Delivery 3–5 days · Warranty 12 months · T/T
|
|
BUYING & APPLICATION QUESTIONS
190501-12-00-01 FAQ
|
|
|
Q1 · Is 190501-12-00-01 intended for low-speed fan machinery?
Yes. The 190501 Velomitor CT was designed specifically for casing vibration velocity measurement on cooling tower and air-cooled heat-exchanger fan assemblies operating at or above 90 rpm, with 100–300 rpm described as typical operating speed.
|
Q2 · What does 190501-12-00-01 provide that matters for low-frequency vibration?
Its specified frequency response reaches 1.5 Hz to 1.0 kHz at ±3.0 dB and 3.0 Hz to 900 Hz at ±1.0 dB. This lower-frequency response is the key characteristic when monitoring slower rotating fan assemblies.
|
|
Q3 · Can 190501-12-00-01 be used with a long cable run?
The specified maximum cable length is 305 m (1,000 ft) when using the specified 02173006 cable, with no signal degradation under the stated conditions. The datasheet also gives 219 m (720 ft) as a recommended cable length under a defined vibration, frequency and cable-capacitance condition.
|
Q4 · What should be checked when installing 190501-12-00-01 on a machine casing?
The transducer should be installed on an appropriate bearing housing or machine casing where the machine vibration is effectively transmitted. For the specified configuration, the mounting surface is 33 mm in diameter and the mounting torque is 4.5 N·m ±0.6 N·m. Poor installation can reduce amplitude or frequency response or create signals that do not represent actual vibration.
|
|
Q5 · What does the 190501-12-00-01 suffix configuration mean when ordering a replacement?
The ordering code is structured as 190501-AA-BB-CC. For this exact part number, -12 specifies the plate stud mounting option, 3/8-in 24 to M8x1; -00 specifies the MIL-C-5015 connection interface; and -01 specifies the agency approval option within the multiple-approval group. Matching these three configuration fields is important when replacing an installed unit.
|
|
|
