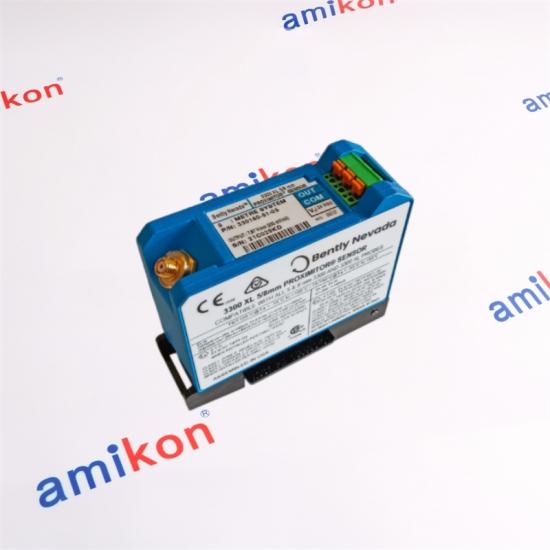

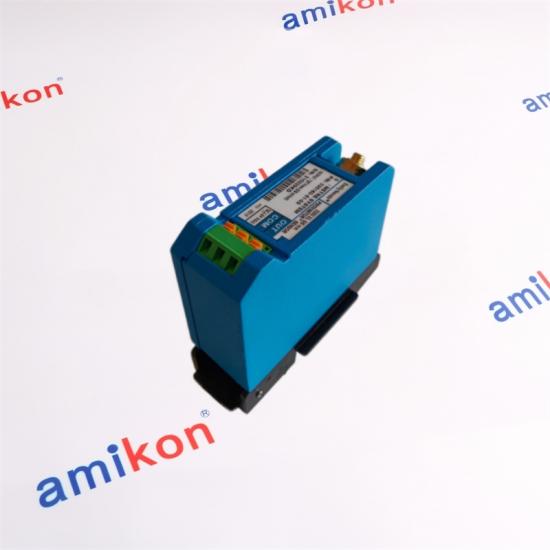

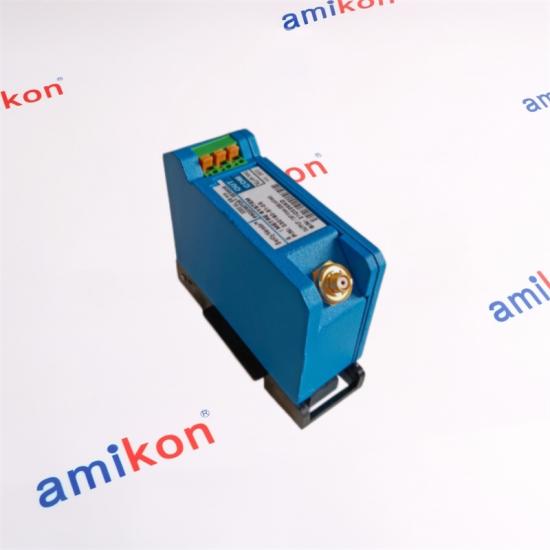

BENTLY NEVADA
144181-51-05
3300 XL Proximitor Sensor
A proximity transducer component for machinery monitoring applications where shaft position and dynamic movement measurements are required.
|
PRECISION MONITORING
Designed around
critical rotating machinery PROXIMITOR
Non-contact measurement
Supports continuous machinery condition monitoring through proximity measurement technology.
|
|
01
Eddy-Current Principle
The 3300 XL proximity transducer system uses eddy-current sensing to measure the relationship between the probe tip and a conductive machine surface without physical contact. |
02
Position & Vibration
The system supports both static position measurements and dynamic vibration measurements for rotating machinery. |
03
System Interchangeability
The 3300 XL 8 mm proximity system is designed so compatible probes, extension cables and Proximitor sensors can be interchanged without matching individual components to the sensing surface. |
|
Part Number |
144181-51-05 |
|
Product Family |
3300 XL Proximity Transducer System |
|
Sensor Technology |
Eddy-current proximity sensing |
|
Measurement Capability |
Static position and dynamic vibration |
|
Typical Machinery Use |
Rotating machinery condition monitoring |
|
MACHINERY CONDITION MONITORING
Where this type of proximity system mattersProximity transducer systems are used where machine movement must be continuously observed without making physical contact with the monitored shaft or conductive surface. Applications include vibration and position monitoring on rotating equipment, particularly machinery using fluid-film bearings. Proximity measurement can also support Keyphasor and speed-related monitoring within suitable system configurations. |
|
Experience that stays close to your project
Our team works with industrial automation customers on urgent replacement and sourcing requirements.
|
Ready for time-sensitive requirements
We support customers looking for critical automation components when production schedules cannot wait.
|
 |
BUILT AROUND CUSTOMER NEEDS
When a critical part matters,
every hour matters. From urgent replacement requirements to difficult-to-source automation components, AMIKON works with customers to keep maintenance schedules moving. |
|
01 What is the role of the 144181-51-05 within a 3300 XL proximity measurement arrangement?
It is associated with the Proximitor portion of the 3300 XL proximity transducer family. The Proximitor works with a compatible probe and extension cable to form a complete proximity measurement channel for machinery monitoring. |
|
02 What can a 3300 XL proximity transducer system measure?
The system can provide both static position and dynamic vibration measurements. Depending on the configured monitoring application, proximity measurement can also be used for Keyphasor and speed-related functions. |
|
03 Why is an exact part-number match important when replacing a Proximitor?
A proximity channel is a complete measurement arrangement rather than an isolated sensor body. Probe type, extension cable, Proximitor configuration and the electrical requirements of the monitoring channel must be compatible. Matching the complete part number helps avoid installing an unsuitable configuration. |
|
04 In what situations would maintenance teams normally investigate this type of component?
Investigation may be required when a proximity monitoring channel develops an abnormal output, becomes unreliable, or requires replacement during rotating-equipment maintenance. Because proximity measurements can contribute to machinery protection and condition monitoring, a failed channel can complicate assessment of machine health. |
|
05 Can the 144181-51-05 be selected only by looking at the 3300 XL series name?
No. The complete configuration should be checked before replacement. Bently Nevada's 3300 XL proximity systems are built around compatible combinations of probe, extension cable and Proximitor components. The installed channel should therefore be compared with the complete required part number and system configuration. |
|
