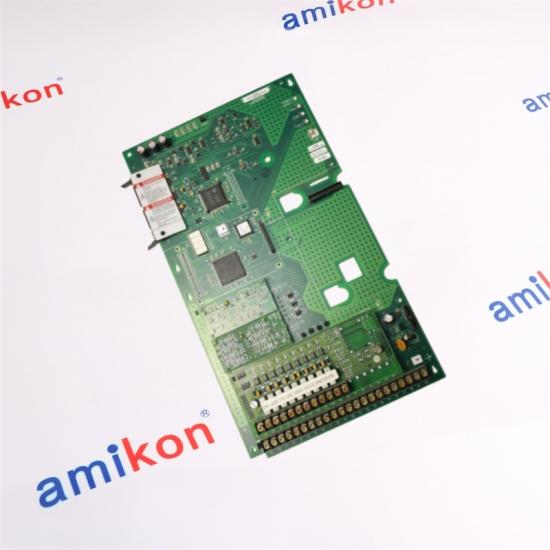

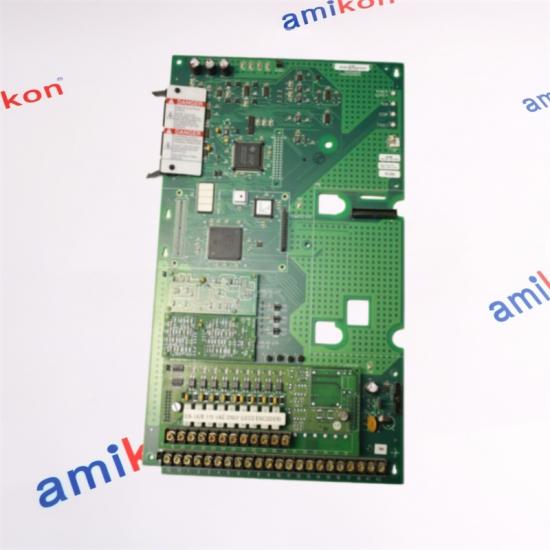

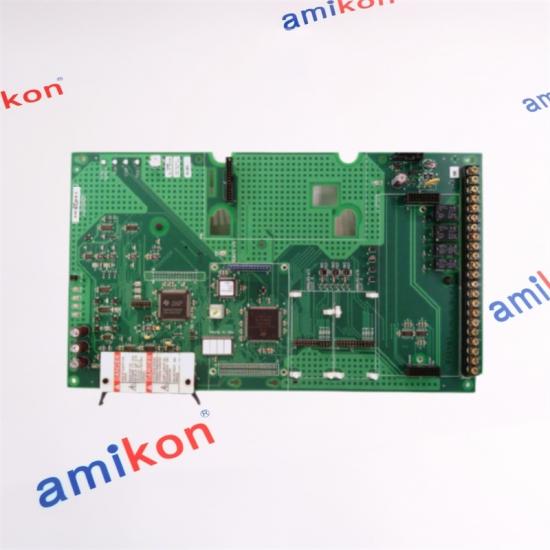

Allen-Bradley 336F-MCB-SP1K Drive Control Board

Manufacturer

Allen Bradley

Category

Drives

Product Line

1336 PCB Boards

Part Number

1336F-MCB-SP1K

Weight

3.00 lbs (1.36 kg)

Type

Spare part

Functionality

PCB, Main Control

Compatibility

1336F drives

Frame

Frame A

Rating

Various

Quantity of Kits Required per Drive

1 kit per drive

Installation

Inside the drive

FRN

Latest

Protection

Depending on the drive

Importance

Major Assemblies

Product Lifecycle Status*

Discontinued/Obsolete

The 1336F-MCB-SP1K board is a drive control board that has been manufactured and distributed by Allen-Bradley/Rockwell Automation and it comes in the spare parts catalog of the Allen-Bradley 1336 Plus II series. The main equipment of this series is the adjustable frequency AC drive that controls and operate dynamic motors. Dynamic motors, or variable speed motors are motors that require variable speed and torque and also the control of motor loads. There may be intervals of rest between operations. These drives can provide the control needed for an application by ensuring that the motor has soft stops and deceleration processes instead of sudden stops that will cause machine wear and damage. The 1336F-MCB-SP1K drive control board is an important machine part since it is where all the electrical connections are embedded and made.

The Allen-Bradley/Rockwell Automation 1336F-MCB-SP1K drive control board is located inside the drive and attached to a series of jumpers at Pins 3 and 4 and 17 and 18 of the jumper known as J2. When these jumpers are disconnected, these will need to be installed when the new connection has been made. It is important to recall that electronic circuitry is fragile and it must be treated and installed carefully. Since the Allen-Bradley/Rockwell Automation 1336F-MCB-SP1K drive control board is located inside the drive, it will be protected by the same enclosure as the drive and it will receive as much ventilation as the environment enables it to. The drive needs to be installed in a clean location with a temperature below 40 degrees Celsius. Clearances are required on each side of the drive to dissipate heat.

1. How does the AB 1336F-MCB-SP1K coordinate intelligent drive governance and real-time control execution within a 1336 FORCE drive platform?

The AB 1336F-MCB-SP1K functions as the Main Control Board, managing critical control algorithms, drive diagnostics, parameter processing, and communication tasks to ensure precise motor operation and system responsiveness.

2. Why is the AB 1336F-MCB-SP1K considered a strategically important component for extending the operational lifespan of legacy 1336 FORCE drive systems?

The AB 1336F-MCB-SP1K restores essential drive control functionality, allowing users to maintain existing automation assets, minimize retrofit costs, and reduce production downtime associated with complete drive replacement.

3. What operational irregularities could indicate that the AB 1336F-MCB-SP1K requires detailed inspection, repair, or replacement?

Symptoms such as erratic drive behavior, communication interruptions, parameter retention failures, startup anomalies, unexpected fault conditions, or unstable motor performance may suggest issues with the AB 1336F-MCB-SP1K.

4. How can the AB 1336F-MCB-SP1K enhance system robustness and process consistency in high-demand industrial motor control applications?

By providing reliable command execution, accurate signal processing, and continuous supervision of drive functions, the AB 1336F-MCB-SP1K helps improve operational stability, process repeatability, and equipment reliability.

5. Which engineering and compatibility factors should be meticulously evaluated before installing the AB 1336F-MCB-SP1K in an existing drive architecture?

Engineers should verify drive model compatibility, firmware revision requirements, hardware configuration, board version alignment, and installation procedures to ensure seamless integration and optimal performance of the AB 1336F-MCB-SP1K.
