Allen-bradley 2711C-k3M C300 Graphic Terminal Operator Interface

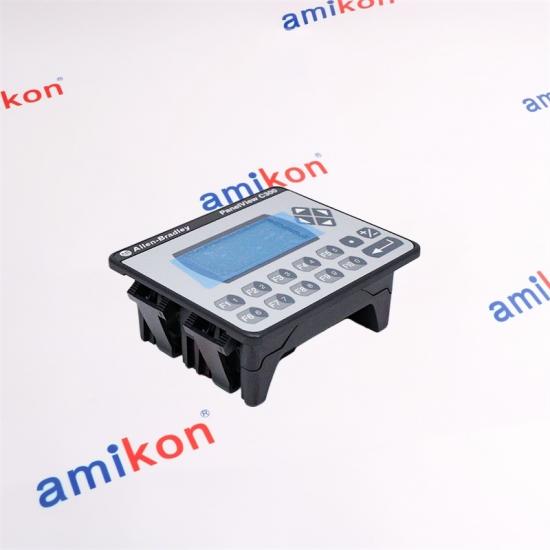

The 2711C-K3M is the Allen-Bradley PanelView Component C300 Terminal that provides variable controls and visualization solutions for low-end applications that use Ethernet or serial communications. This device has a monochrome transflective FSTN passive matrix that can interface directly with PowerFlex 4 drives and Allen-Bradley’s Micro800, and MicroLogix controller families.

The 2711C-K3M operator interface comes with a 3-inch display with embedded touch membrane. It has a built-in web browser allowing remote access through Ethernet connection using an emulator address. This operator terminal is installed using mounting and quick-lever clamps which makes the maintenance and installation process easy and convenient. It also has a backup available for at least 5 years and no real-time clock, the terminal is valuable when viewing the results on the terminal during large applications.

The 2711C-K3M uses 24 Volts DC input voltage. For device safety, give the terminal connections regular maintenance. Version 2. The operator input has 10 functional keys which are keys F1 to F10, a numeric keypad with keys from 0 to 9, and up, down, left, right, decimal, +/-, and Enter keys with a USB port as a programming port. The users can view the system information and apply login passwords for secure operations. With a screen resolution of 128 by 64 pixels, it comes with a built-in analog touchscreen. Weighing less than 0.43 pounds with a display size of 67 by 33 millimeters (2.64 by 1.30 inches), the PanelView Component C300 Terminal has a backlight life of more than 50,000 hours. The files can be transferred through the PanelView Component terminal storage and a USB flash drive or a computer.

The 2711C-K3M PanelView Component is especially designed to communicate with MicroLogix, SLC, and Micro800 controllers by Allen-Bradley as well as PowerFlex 4 drives via the integrated communication ports such as RS-232 that supports DH-485 protocol, RS-232 supporting DF1 communication, and RS-485 Multi-vendor communication for Modbus and Siemens MPI devices. This HMI device is also equipped with ports, allowing insertion of external peripherals including keyboard, mouse, and removable storage.

2711C-K3M Panelview component features a3-inch screen having a display resolution of 128 x 64 and display area of 67 x 33 mm (2.64 x 1.30 in.). If is installed with a set of fully programmable function keys, a numeric keypad, directional (up, down, left, right) buttons and increase and decrease button. The 2711C-K3M requires an external DC power supply to energize the unit. Applicable voltage range is 18-30V DC with 24V DC nominal supply voltage.

Manufacturer

Allen Bradley

Product Type

PanelView 300 Component

Product Line

Panelview Component

Part Number

2711C-K3M

UPC

662074572861

Weight

0.75 lbs (0.34 kg)

Resolution

128 x 64

Input Type

Keypad

Display Type

Monochrome transflective FSTN passive matrix

Display Area

67 x 33 mm (2.64 x 1.30 in.)

Backlight

50,000 hours life, min; not replaceable

Keypad function keys

10 function keys (F1…F10)

Communication ports

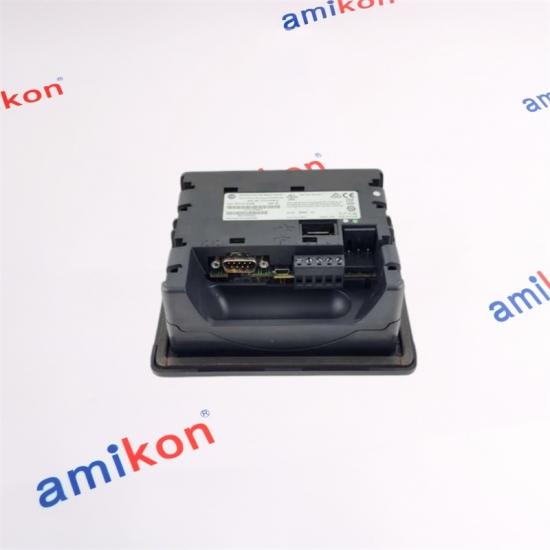

RS-232 (DH-485), RS-232 (DF1), RS-485 Multi-vendor communication available for Modbus and Siemens MPI devices; USB Port

Input Voltage range

18…30V DC (24V DC nom)

Compatible Web Browsers

Internet Explorer 7 and 8, Firefox 3.0

Series

C300

Display Size

3 inches

Display Color

Monochrome

Power

24 Volts DC

Power Consumption

5 Watts

Product Lifecycle Status*

Discontinued/Obsolete
