Manufacturer |
Allen Bradley |
|
Warranty: |
360 Days |
|
Country of Origin: |
USA |
|
Condition |
New and Original |
|
Lead Time |
In Stock |
Contact：Miya Zheng
Email: sales@amikon.cn
Whatsapp/phone: +86 18020776792
Overview

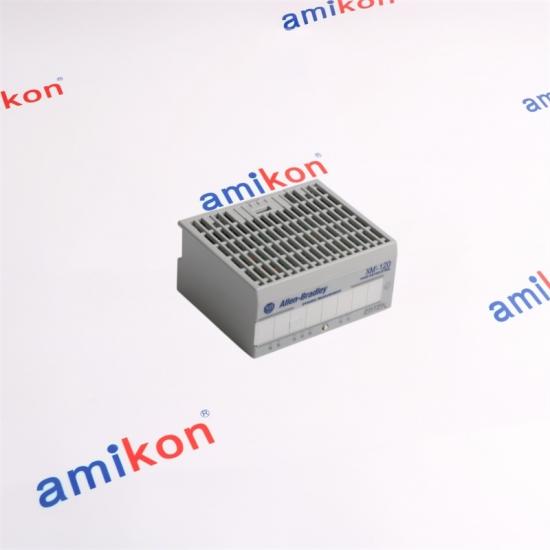

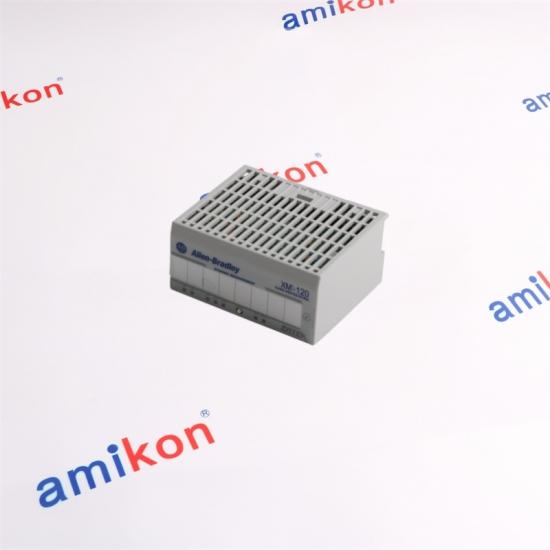

The 1440-VST02-01RA is a dynamic vibration module from Allen Bradley's XM series. It runs on an input voltage of 24 VDC and supports a range from 21.6 to 26.4 VDC. This unit has an output current capability of 4 to 20 mA and is equipped with seven LED indicators for status monitoring.
Description
|
The Allen Bradley 1440-VST02-01RA dynamic vibration module is engineered for measuring and monitoring applications. With an input voltage rating of 24 VDC, it supports operational voltage from 21.6 to 26.4 VDC, accommodating various installation conditions. The output current ranges from 4 to 20 mA, making it suitable for diverse control systems. |
|
LED indicators are integrated into the design, allowing for quick status checks. There are seven indicators that provide immediate feedback on the device's performance. The maximum current draw is capped at 300 mA, while the typical consumption is lower at approximately 175 mA. This operational efficiency reflects in its heat production, which peaks at 7 watts (24 BTU/hr) under maximum use and is typically 4 watts (14 BTU/hr). |
|
Operating within a temperature range of -20 to 65 degrees Celsius, this module remains reliable in challenging conditions. It can be stored in environments ranging from -40 to 85 degrees Celsius without impacting functionality. Furthermore, it is rated for 95% relative humidity without condensation, broadening its suitability for various settings. The terminal screw should be tightened to a torque of 0.6 Nm for effective electrical connections. Overall, the 1440-VST02-01RA is designed to deliver dependable performance in dynamic environments. |
Technical specifications
|
Manufacturer |
Allen Bradley |
|
Product Type |
Dynamic Vibration Module |
|
Product Line |
XM |
|
Part Number |
1440-VST02-01RA |
|
UPC |
611320983272 |
|
Weight |
0.50 lbs (0.23 kg) |
|
Input Voltage Rating |
24 VDC |
|
Operational Power Range |
21.6 to 26.4 VDC |
|
Output Current |
4 to 20 mA |
|
Indicators |
Yes, seven LED indicators |
|
Maximum Current Consumption |
300 mA |
|
Typical Current Consumption |
175 mA |
|
Max. Heat Production |
7 Watts (24 BTU/hr) |
|
Typical Heat Production |
4 Watts (14 BTU/hr) |
|
Operating Temperature |
-20 to 65°C (-4 to 149°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
95% non-condensing |
|
Terminal Screw Torque |
0.6 Nm |
FAQ for Allen-Bradley 1440-VST02-01RA
Q1: What is the function of the Allen-Bradley 1440-VST02-01RA module?
The Allen-Bradley 1440-VST02-01RA is an XM-120 Dynamic Measurement Module used for machinery condition monitoring. It measures shaft vibration, eccentricity, rotor bow, and related dynamic signals in rotating equipment such as turbines, compressors, pumps, and motors.
Q2: What types of input signals does the 1440-VST02-01RA support?
This module supports non-contact eddy current probe systems and tachometer inputs. It can monitor parameters such as peak-to-peak eccentricity, gap voltage, maximum gap, minimum gap, and rotational speed for machinery protection and analysis.
Q3: What are the power requirements for the 1440-VST02-01RA?
The module operates on a 24 VDC power supply with a current requirement of approximately 300 mA and power consumption around 7 W. It is designed for industrial monitoring environments with operating temperatures from -20°C to 65°C.
Q4: Can the 1440-VST02-01RA be integrated with PLC or control systems?
Yes. The module can function as a standalone monitoring device or integrate with PLCs and industrial control systems through DeviceNet communication. It also supports local configuration through a serial connection to a PC or laptop.
Q5: Is the Allen-Bradley 1440-VST02-01RA still available?
The 1440-VST02-01RA is considered an obsolete/discontinued product, but refurbished, surplus, and repair services are still widely available through industrial automation suppliers and repair centers.
