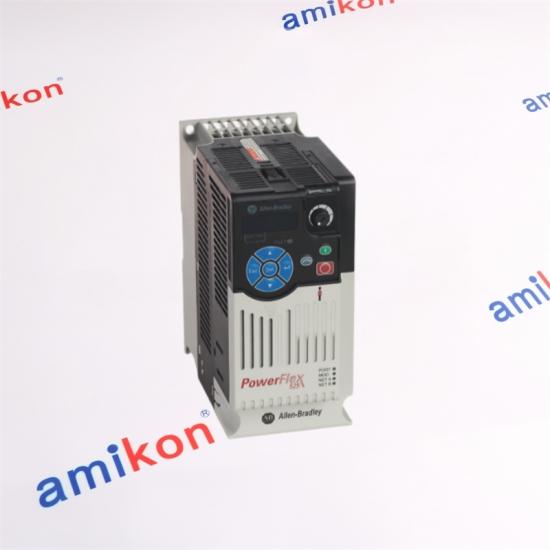

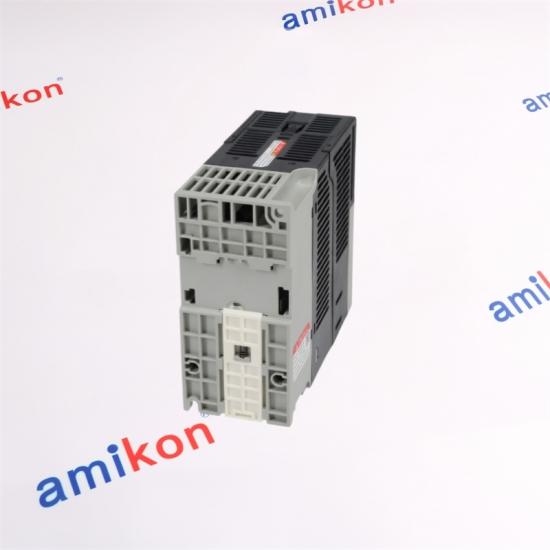

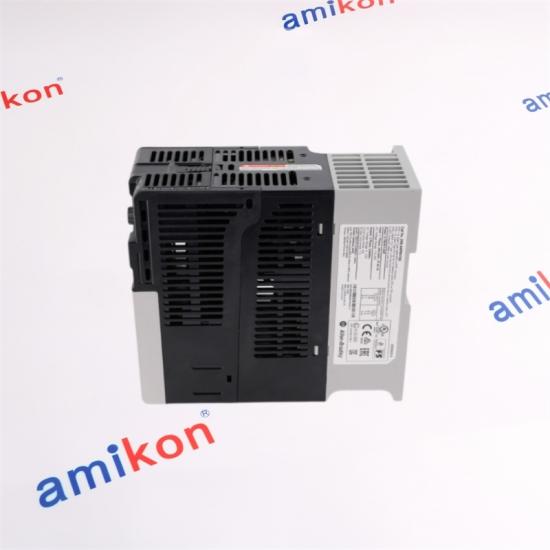

25B-A8P0N104

A Frame B PowerFlex 525 drive for 200...240V AC single-phase input, rated at 8 A output and 2 HP / 1.5 kW for both normal-duty and heavy-duty applications.

Compact Drive.
Connected Control.

The PowerFlex 525 platform combines compact construction with embedded EtherNet/IP communication, safety capability and flexible motor-control functions.

Embedded EtherNet/IP

Embedded EtherNet/IP supports drive integration within networked machine-control architectures and provides a direct communication path for connected control systems.

Integrated Safety

Safety functionality is integrated into the PowerFlex 525 platform, reducing the need for a separate drive-level safety arrangement in suitable machine architectures.

Flexible Motor Control

The PowerFlex 525 platform supports volts-per-hertz and sensorless vector control approaches for different motor-control requirements.

Integrated Brake IGBT

An integrated brake IGBT provides a built-in braking capability for drive configurations where controlled motor deceleration is required.

Where 25B-A8P0N104
Makes Sense

PowerFlex 525 drives are suited to general-purpose motor applications including conveyors, fans, pumps and mixers where adjustable motor speed and connected control are required.

A Small Drive Can
Stop a Larger Process

Five Details
Keep the Process Moving

Send the key purchasing details together so the quotation can be handled efficiently.

Is 25B-A8P0N104 suitable when the available supply is 200...240V AC single phase?

Yes. This specific configuration is rated for 200...240V AC single-phase input and provides 8.0 A output for a 2 HP / 1.5 kW motor rating. The motor nameplate and complete installation requirements should be checked before replacement.

What makes the 8 A rating important when selecting a replacement drive?

Output current is a critical matching point because the drive must be appropriate for the connected motor. The 25B-A8P0N104 is rated at 8.0 A and 2 HP / 1.5 kW, so replacing it with a different current or power configuration should not be treated as an automatic equivalent.

Why does the “No Filter” configuration matter during replacement?

The 25B-A8P0N104 is configured without an EMC filter. If the existing installation was designed around this configuration, selecting a version with a different filtering arrangement can change the electrical setup and should therefore be evaluated before purchase.

If the failed drive communicates through EtherNet/IP, can this model fit that type of architecture?

Yes. Embedded EtherNet/IP is part of the 25B-A8P0N104 configuration. During replacement, the existing controller arrangement, network settings and drive operating parameters should be reviewed to restore the machine correctly.

Which details are most useful when the machine is already down and the drive needs urgent replacement?

Send the exact Part Number, Quantity, Destination, Required Date and Machine/System. For this model, confirming the 200...240V single-phase supply, 8.0 A output and 2 HP / 1.5 kW rating can also help prevent a mismatch during an urgent replacement.
